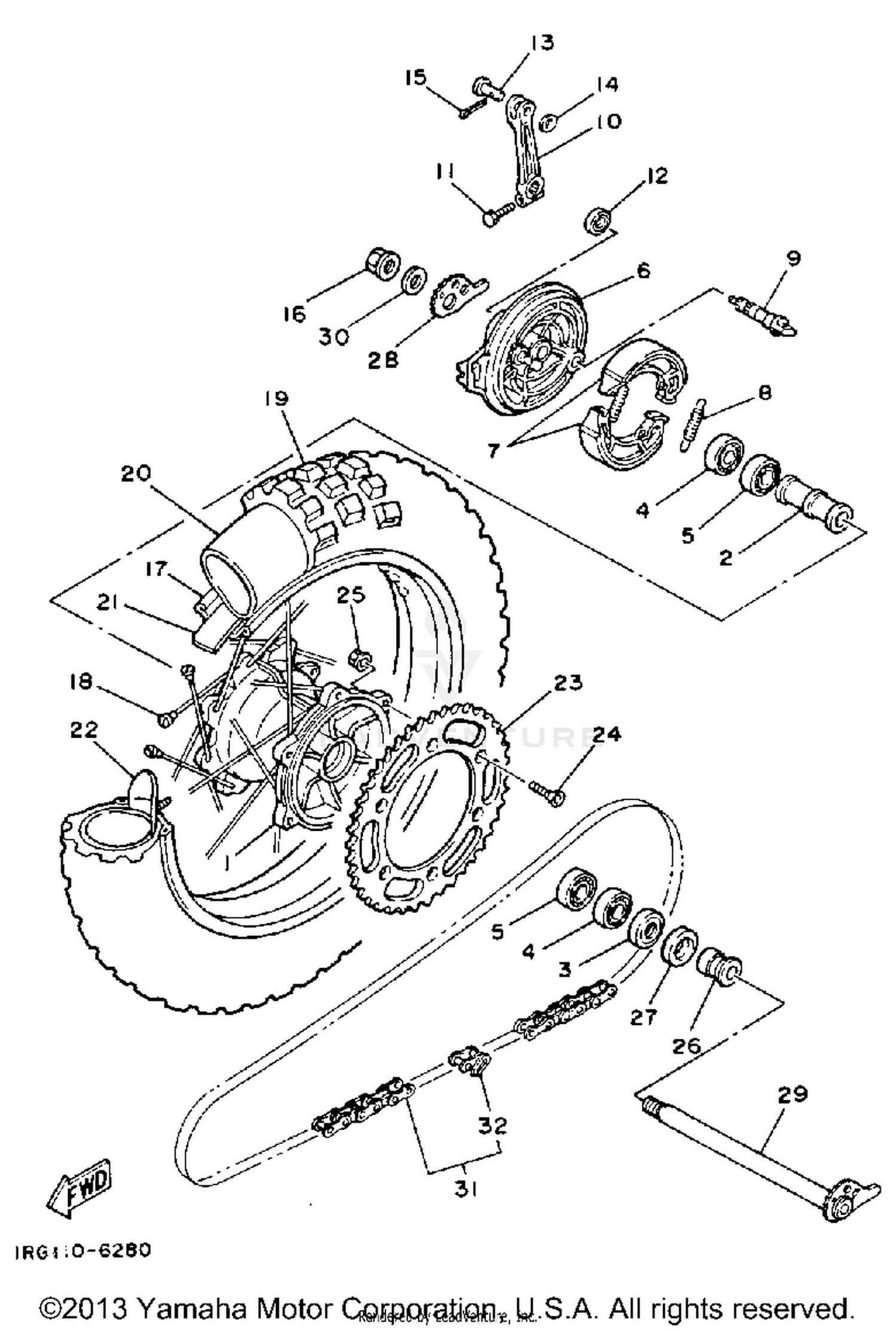

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
56A-25311-00-98
|
$331.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-20226-00
|
$17.99 | ||
|
Unavailable |
|||
|
#3
OIL SEAL
93106-28023-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-00418-00
Superseded by 93306-00444-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-00406-00
Superseded by 93306-00438-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, BRAKE SHOE
26A-25321-00-98
|
$154.99 | ||
|
Unavailable |
|||
|
#7
BRAKE SHOE SET-2PCS
437-W2536-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#8
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAMSHAFT
26A-25351-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#10
LEVER, CAMSHAFT
34L-25355-00-00
|
$127.99 | ||
|
Unavailable |
|||
|
#11
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, CAMSHAFT
148-25359-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, CLEVIS
1W2-27237-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-12631-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN. COTTER
91401-25030-00
Superseded by 91490-25030-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SELF-LOCKING
95601-18200-00
Superseded by 95604-18200-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RIM 2.15
94421-18431-00
|
$466.99 | ||
|
Unavailable |
|||
|
#18
SPOKE SET, REAR
56A-25304-00-00
|
$142.99 | ||
|
Unavailable |
|||
|
#19
100/100-18 ED16 BS
94110-182J8-00
|
$47.52 | ||
|
Unavailable |
|||
|
#20
TUBE (4.10-18)
94241-18153-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, RIM (2.50-18)
94345-18081-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER, BEAD
39X-25394-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPROCKET, DRIVEN
26A-25450-50-00
Superseded by 26A-25450-51-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90109-08706-00
Superseded by 90109-081G2-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-203H4-00
Superseded by 90387-202V9-00
|
$14.99 | ||
|
Unavailable |
|||
|
#27
COVER, HUB DUST
4V4-25367-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PULLER, CHAIN 1
4V5-25388-01-00
|
$22.99 | ||
|
Unavailable |
|||
|
#29
AXLE, WHEEL
1LN-25381-02-00
|
$62.99 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
90201-207J5-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
CHAIN,DRIVE (DID520V
94580-40108-00
Superseded by 9Y581-08107-00
|
$163.99 | ||
|
Unavailable |
|||
|
#32
JOINT, CHAIN (34L) (D.I.D.50H
94680-50011-00
|
$9.49 | ||
|
Unavailable |
|||
