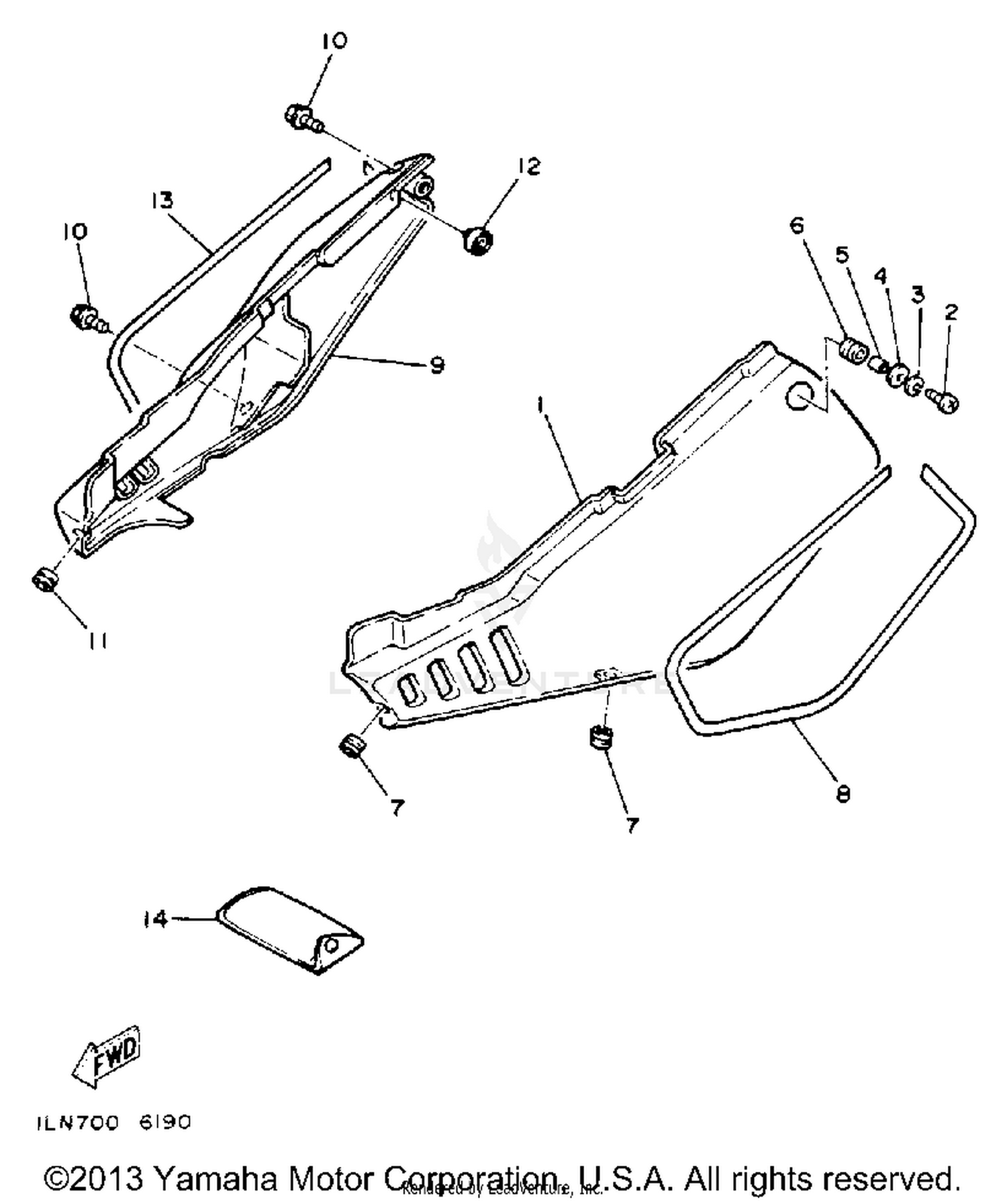

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
1LN-21711-00-00
|
$99.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-07598-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-12320-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GRAPHIC SET 1
1LN-2173L-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#9
COVER, SIDE 2
1LN-21721-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#10
SCREW, WITH WASHER
90159-06082-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-12320-00
|
$7.49 | ||
|
Unavailable |
|||
|
#12
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GRAPHIC SET 2
1LN-2174L-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#14
TOOL KIT (48Y-28100-00-00)
1LN-W2810-00-00
Superseded by 1LN-W2810-01-00
|
$130.99 | ||
|
Unavailable |
|||
