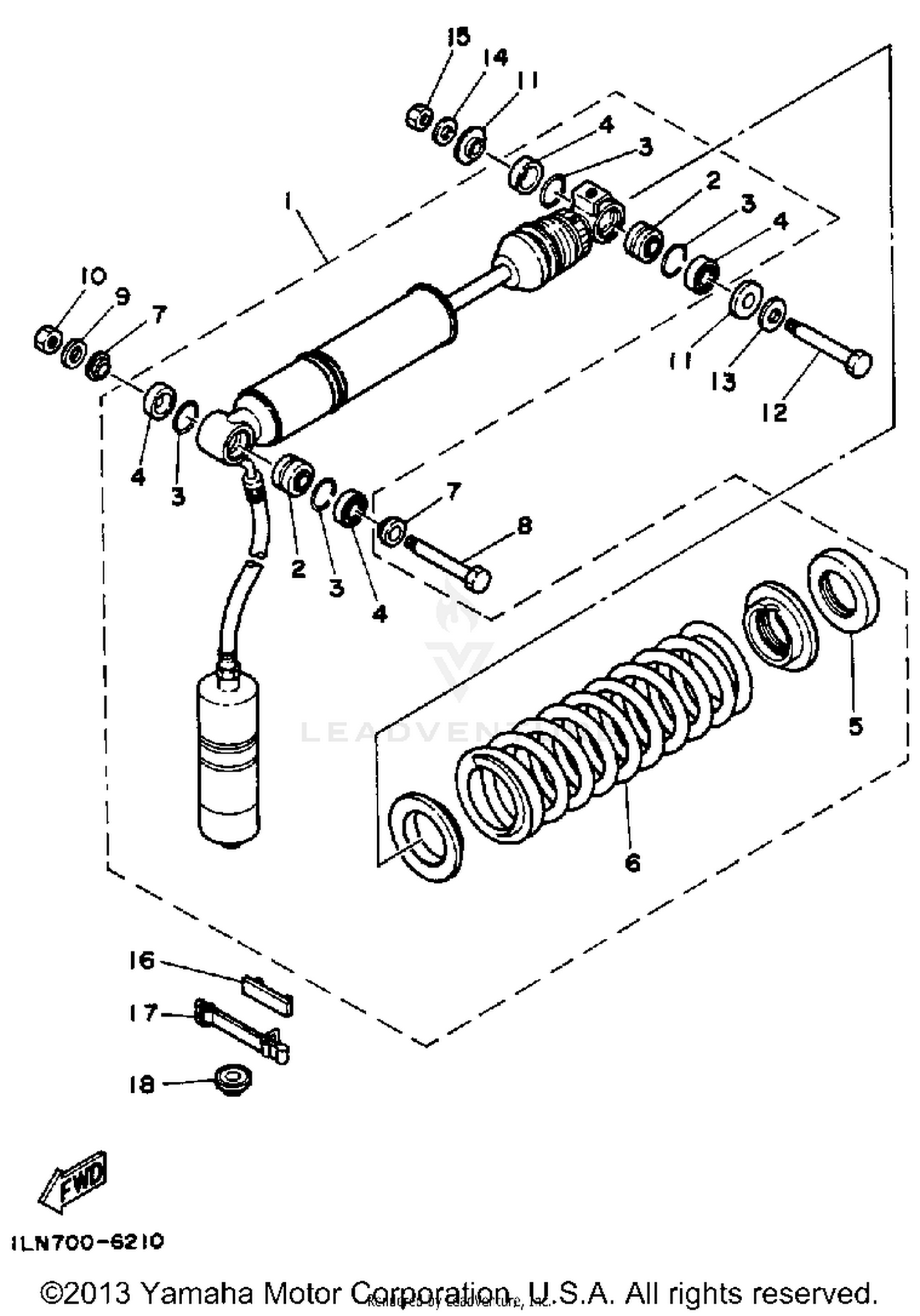

Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ASY, REAR
1LN-22210-01-6W
Superseded by 1LN-22210-10-6W
|
$546.99 | ||
|
Unavailable |
|||
|
#2
BEARING (93399-99934-00)
93399-99934-00
Superseded by 93399-999T3-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-30113-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93104-18077-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, COVER
38W-22215-00-00
Superseded by 1RK-22215-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING
1RG-22212-00-6W
|
$45.47 | ||
|
Unavailable |
|||
|
#7
COLLAR
90387-127G8-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90109-10690-00
Superseded by 90109-10453-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-100F7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-126H8-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
90109-10700-00
|
$15.49 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-120E6-00
Superseded by 90201-12027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-100E9-00
Superseded by 90201-10M05-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
DAMPER, SUB TANK
24X-22261-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, SUB TANK
24X-22262-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#18
GROMMET
90480-17359-00
|
$7.49 | ||
|
Unavailable |
|||
