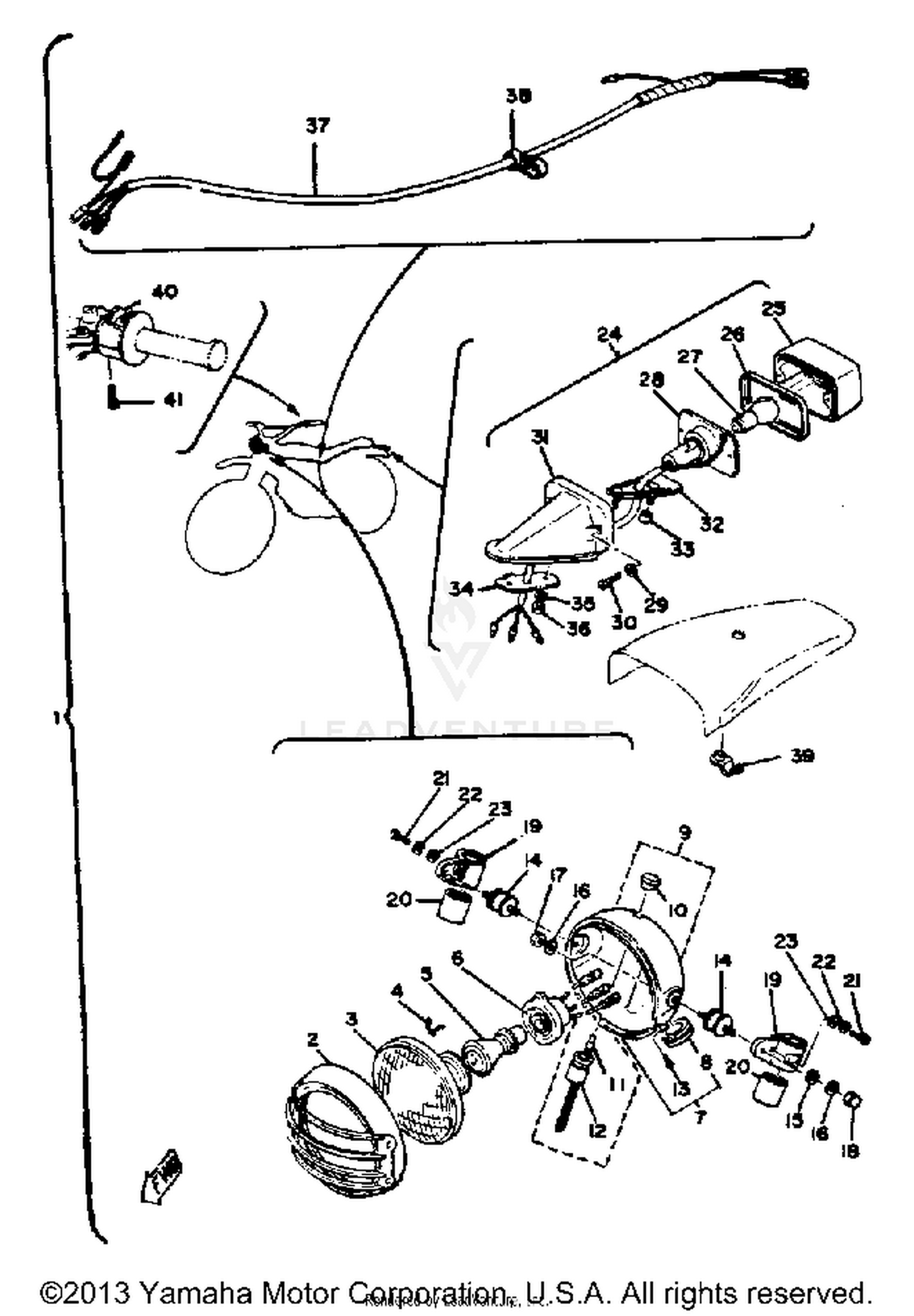

Lighting Kit (optional Parts) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TT500FGH LIGHT KIT
ACC-01100-63-00
|
$230.99 | ||
|
Unavailable |
|||
|
#2
RIM, HEADLIGHT
493-84115-60-00
|
$80.99 | ||
|
Unavailable |
|||
|
#3
LENS ASSEMBLY
434-84120-60-00
|
$11.79 | ||
|
Unavailable |
|||
|
#4
SPRING, REFLECTOR
195-84324-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB, HL6V35/35W
214-84114-60-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
UNAVAILABLE IN PRICE BOOK (43
434-84112-61-00
|
|||
|
Unavailable |
|||
|
#7
BODY ASSEMBLY, HEADLIGHT
434-84130-61-33
|
$26.99 | ||
|
Unavailable |
|||
|
#8
GROMMET, WRHRNES
150-84153-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PILOT LIGHT ASSEMBLY
214-84101-61-00
|
$25.99 | ||
|
Unavailable |
|||
|
#10
BODY, PILOT LIGHT
256-84357-61-00
|
$10.60 | ||
|
Unavailable |
|||
|
#11
BULB
104-83517-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SOCKET CORD ASSEMBLY 2
214-84150-61-00
|
$24.99 | ||
|
Unavailable |
|||
|
#13
SCREW, COUNTERSUNK
90152-05005-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SPECIAL
1K7-84137-60-00
|
$8.88 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT (CROWN) (93501-08800-00)
95303-08800-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAY, HEADLIGHT 1
1K7-84118-60-33
|
$18.22 | ||
|
Unavailable |
|||
|
#20
DAMPER, HDLT STAY
1K7-84136-61-00
|
$1.75 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
TAILLIGHT ASSEMBLY
434-84500-64-00
|
$123.99 | ||
|
Unavailable |
|||
|
#25
LENS, TAILLIGHT
434-84521-69-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RIM,TAILLIGHT
434-84515-61-00
Superseded by 5AU-83323-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BULB 6V21CP(1154)
122-84514-30-00
Superseded by 122-84514-30-XX
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
CORD, TAILLIGHT
434-84517-61-00
|
$55.99 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
434-84522-62-00
Superseded by 90201-05029-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, LENS FITTING
434-84524-61-00
|
$2.97 | ||
|
Unavailable |
|||
|
#31
BRACKET, TAILLIGHT
434-84519-64-00
|
$106.99 | ||
|
Unavailable |
|||
|
#32
TAILLIGHT ASSEMBLY
434-84500-64-00
|
$123.99 | ||
|
Unavailable |
|||
|
#33
COLLAR
434-84557-60-00
|
$2.30 | ||
|
Unavailable |
|||
|
#34
WASHER, SPECIAL
434-84525-01-00
|
$3.05 | ||
|
Unavailable |
|||
|
#35
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WIRE HARNESS ASSEMBLY
2Y0-82590-90-00
|
$10.40 | ||
|
Unavailable |
|||
|
#38
CLAMP KIT
583-90274-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#39
CLAMP
90462-08036-00
|
$2.97 | ||
|
Unavailable |
|||
|
#40
SWITCH, HANDLE 3
1T1-83973-00-00
|
$35.38 | ||
|
Unavailable |
|||
|
#41
SCREW, PAN HEAD
98580-05020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
