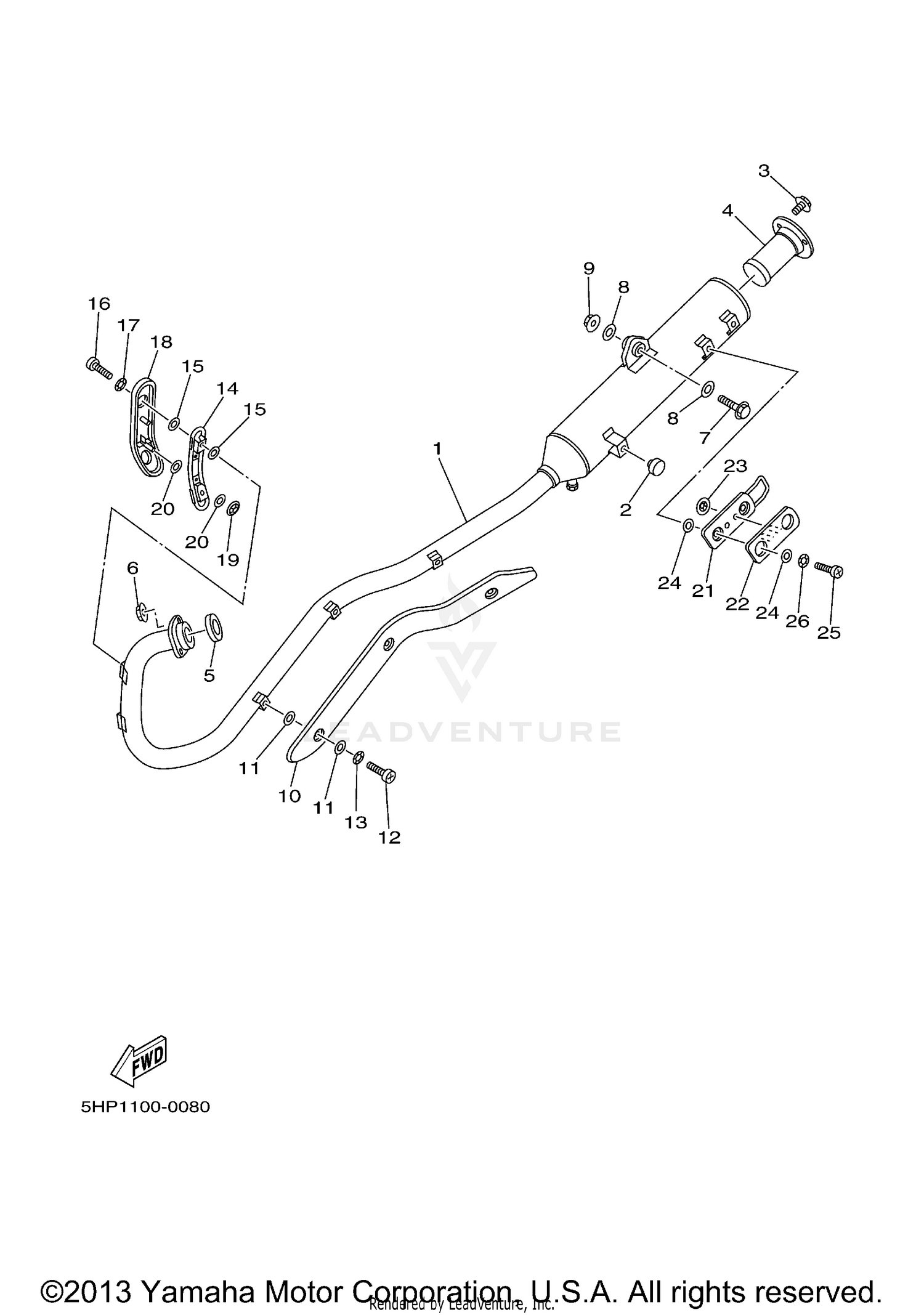

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MUFFLER 1
5HP-14711-00-00
|
$321.38 | ||
|
Unavailable |
|||
|
#2
DAMPER, LOCATING 1
22W-24181-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95027-06010-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPARK ARRESTER ASSY
5HP-14780-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, EXHAUST PIPE
4BR-14613-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, U FLANGE
95607-06200-00
Superseded by 95604-06200-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95817-10040-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-101J1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SELF-LOCKING
90185-10002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PROTECTOR, EXHAUST PIPE
5HP-14628-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#11
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, BIND
98980-06008-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, WAVE
90206-06090-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PROTECTOR, EXHAUST PIPE
5HP-14628-10-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
SCREW, BIND
98980-06008-00
|
$2.95 | ||
|
Unavailable |
|||
|
#17
WASHER, WAVE
90206-06090-00
|
$6.99 | ||
|
Unavailable |
|||
|
#18
COVER, 1
5HP-1479H-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SPRING
90183-04047-00
Superseded by 90183-04005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
PROTECTOR, SILENCER
5HP-14758-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER 2
5HP-1479J-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SPRING
90183-04047-00
Superseded by 90183-04005-00
|
$9.49 | ||
|
Unavailable |
|||
|
#24
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
SCREW, BIND
98980-06008-00
|
$2.95 | ||
|
Unavailable |
|||
|
#26
WASHER, WAVE
90206-06090-00
|
$6.99 | ||
|
Unavailable |
|||
