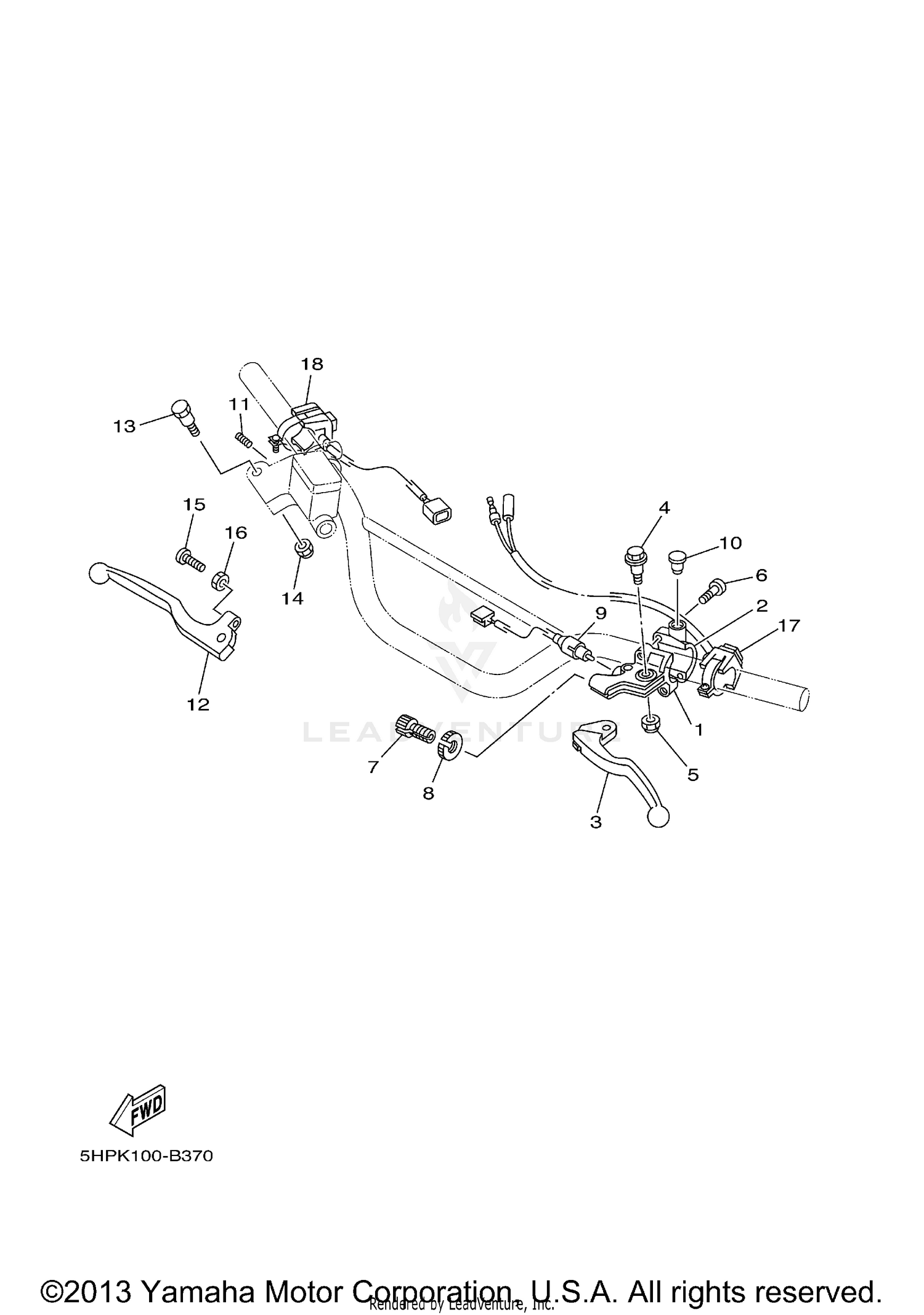

Handle Switch Lever Les Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, LEVER 1
1LN-82911-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER, LEVER LOWER 1
33G-82913-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LEVER 1
4GY-83912-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90109-06799-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, WITH WASHER
97607-05220-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH
5HP-82917-00-00
Superseded by 19D-82917-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG
90338-09012-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-061G2-00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER R
3SP-83922-00-00
Superseded by 3SP-83922-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90109-06577-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$7.99 | ||
|
Unavailable |
|||
|
#15
SCREW, HEXAGON
90143-06024-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90170-06010-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH, HANDLE 1
5HP-83976-20-00
Superseded by 5HP-83976-22-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SWITCH, HANDLE 1
5HP-83976-10-00
Superseded by 5HP-83976-12-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
