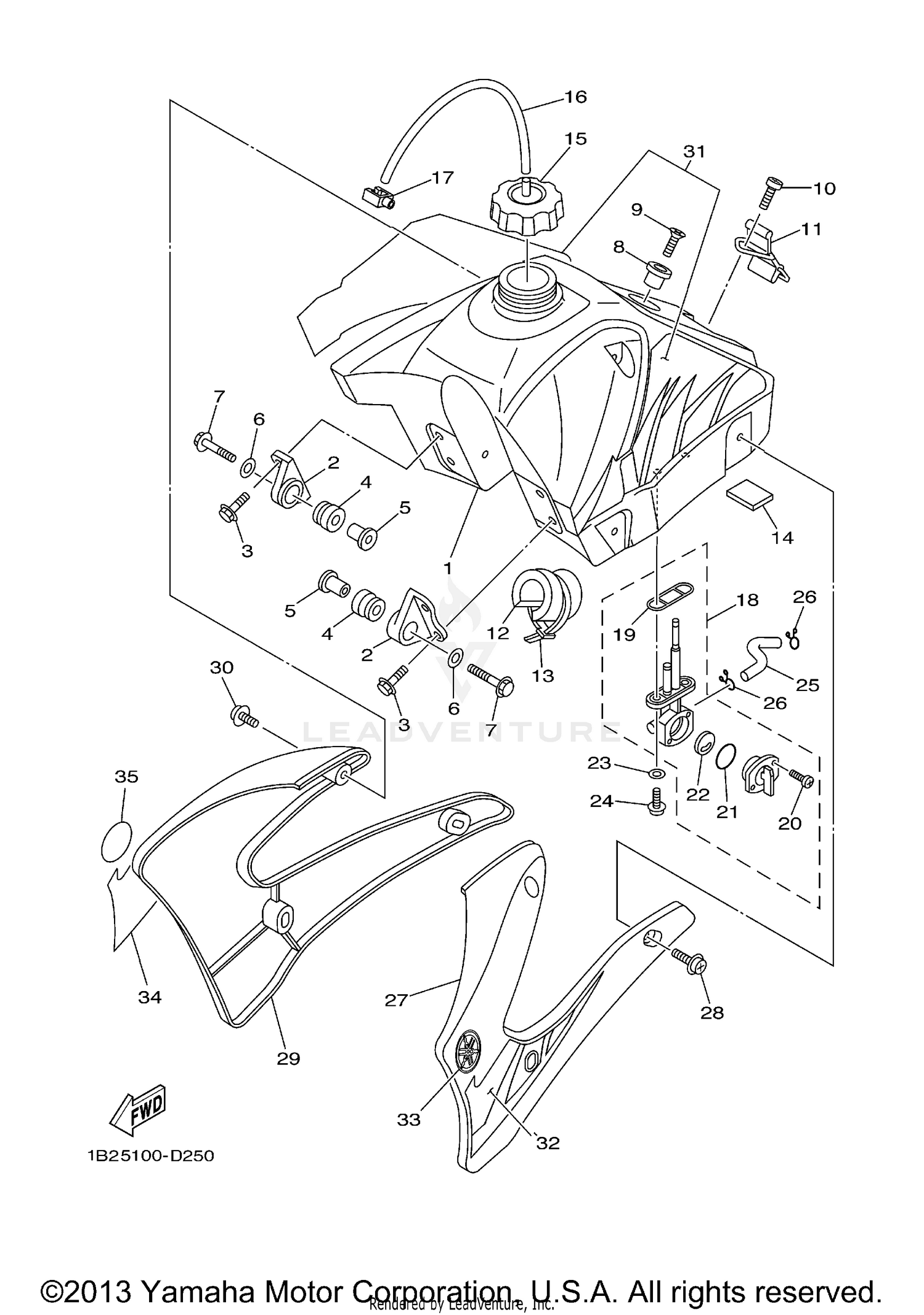

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5HP-24110-10-00
Superseded by 5HP-24110-30-00
|
$668.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER, DAMPER
1B2-F4144-00-00
Superseded by 5XE-24144-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
9582M-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-18549-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPECIAL
1B2-F4186-00-00
Superseded by 3JD-24186-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,FLANGE
9582M-06030-00
Superseded by 95817-06030-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, SEAT
1B2-F412F-00-00
Superseded by 4EW-2412F-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, FLAT HEAD
9870M-06025-00
Superseded by 98707-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, BIND
9890M-06020-00
Superseded by 98907-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, TANK FITTING 1
1B2-F4173-00-00
Superseded by 3SP-24173-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, SIDE COVER
1B2-F4145-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90465-13275-00
Superseded by 90464-15152-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER 1
1B2-F8415-00-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP ASSY
2FJ-24610-00-00
Superseded by 2FJ-24610-20-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE, BREATHER
1B2-F1826-00-00
Superseded by 5HN-21826-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90464-13003-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUEL COCK ASSY 1
4X8-24500-02-00
Superseded by 23F-24500-20-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
97801-03008-00
Superseded by 98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE (L110)
90445-10007-00
Superseded by 90445-10752-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-09W06-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCOOP, AIR 1
1B2-F137W-00-00
Superseded by 5HP-2137W-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, WITH WASHER
90159-06182-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCOOP, AIR 2
1B2-F137X-00-00
Superseded by 5HP-2137X-00-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, WITH WASHER
90159-06182-00
|
$8.49 | ||
|
Unavailable |
|||
|
#31
GRAPHIC SET
1B2-24240-00-00
|
$138.99 | ||
|
Unavailable |
|||
|
#32
GRAPHIC 1
1B2-F137N-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
TUNING FORK MARK
1B2-F175C-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#34
GRAPHIC 2
1B2-F137P-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
TUNING FORK MARK
1B2-F175C-00-00
|
$49.99 | ||
|
Unavailable |
|||
