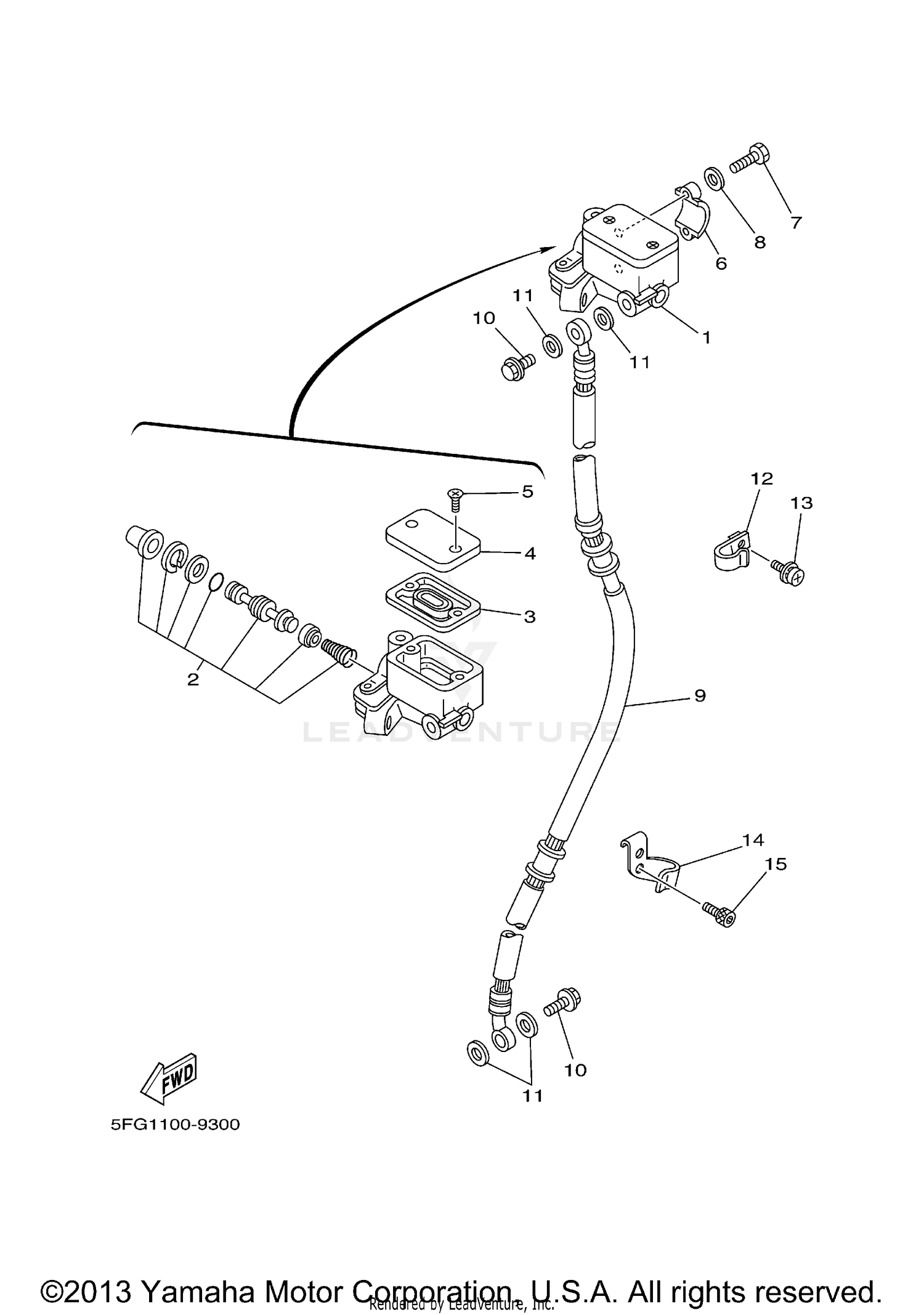

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
39F-25870-00-00
|
$300.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
56A-W0041-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
4L0-25854-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
4L3-25852-00-00
Superseded by 4H7-25852-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
4L0-25867-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, BRAKE 1
3RW-25872-02-00
|
$160.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, UNION
90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-10886-00
|
$1.30 | ||
|
Unavailable |
|||
|
#12
HOLDER, BRAKE HOSE 1
4BN-F5875-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, WITH WASHER
90119-06108-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, CABLE 1
4BN-F3318-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
BOLT
91317-06010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
