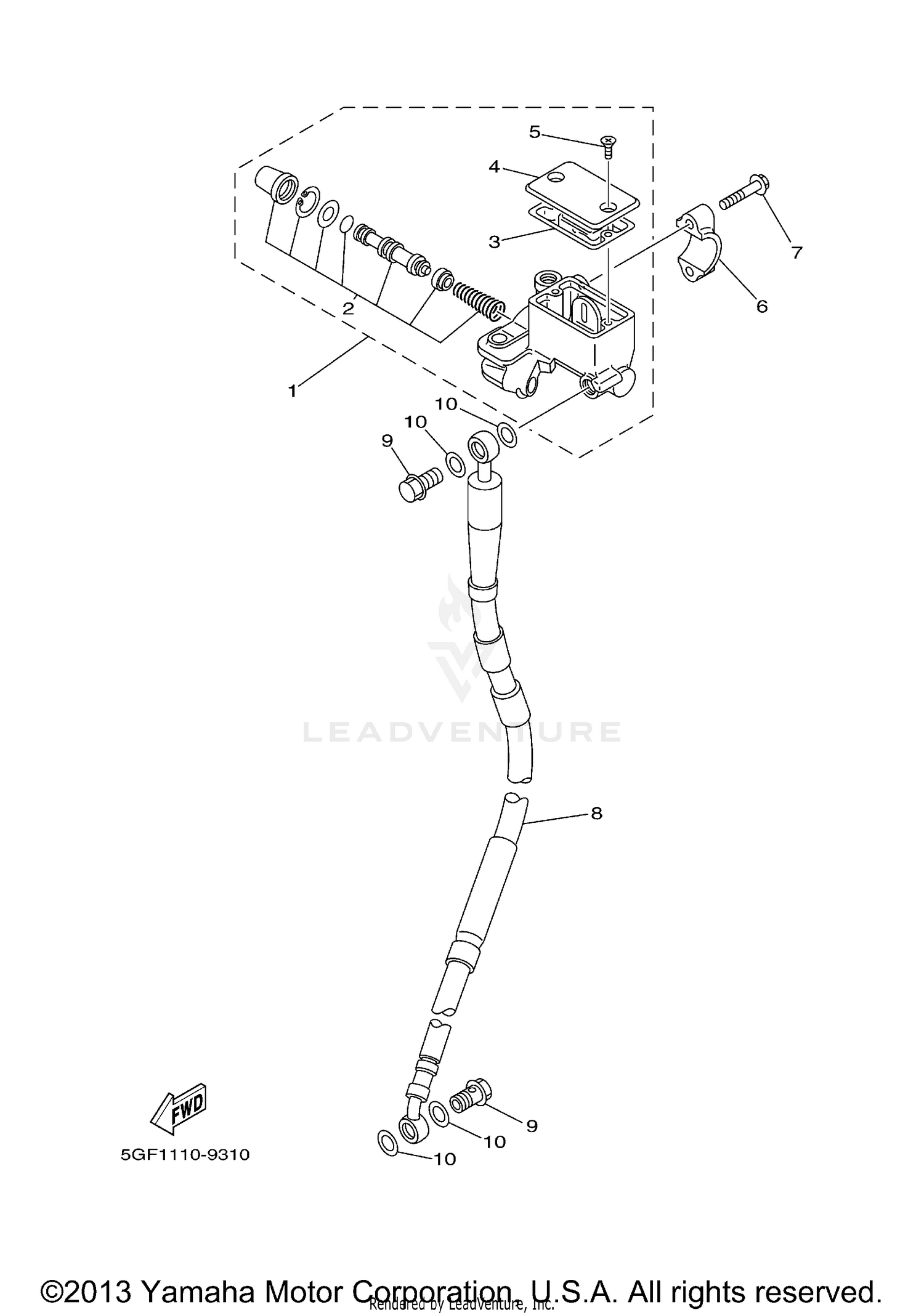

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
4GY-25870-02-00
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MAST
5CG-W0041-00-00
Superseded by 5RS-25807-03-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
3RW-25854-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
4GY-25852-00-00
Superseded by 4GY-25852-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
36Y-2589H-00-00
Superseded by 98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
3RW-25867-00-00
Superseded by 56A-25867-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, BRAKE 1
5GF-25872-00-00
|
$213.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, UNION
90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
