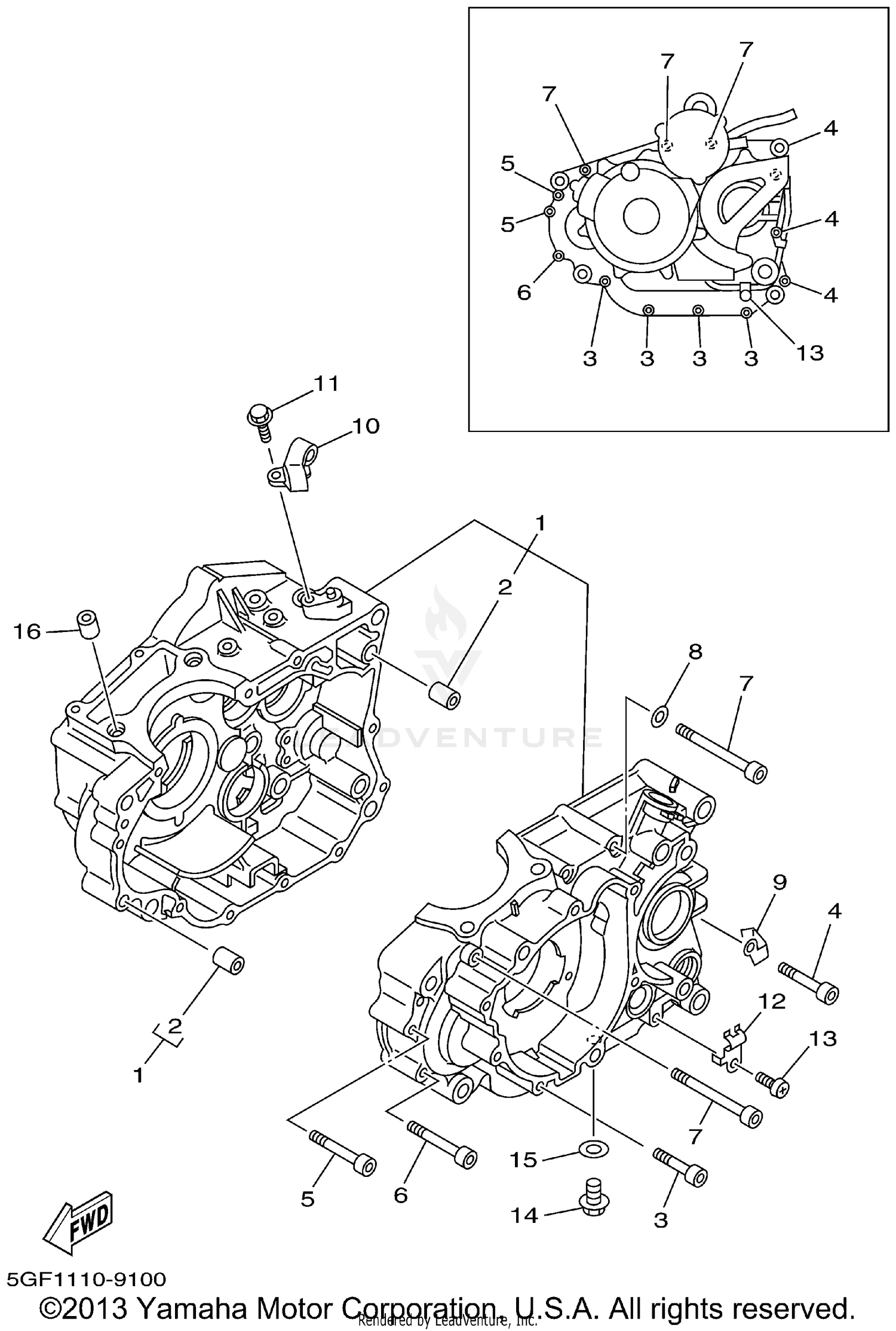

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
4RR-15100-02-00
|
$729.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91317-06040-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
91317-06045-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
91317-06050-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
91317-06055-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91317-06070-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90462-08225-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, CLUTCH CABLE
4GY-15441-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
90462-10215-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98507-06010-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, STRAIGHT SCREW
90340-12059-00
Superseded by 90340-12006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
90430-12213-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
