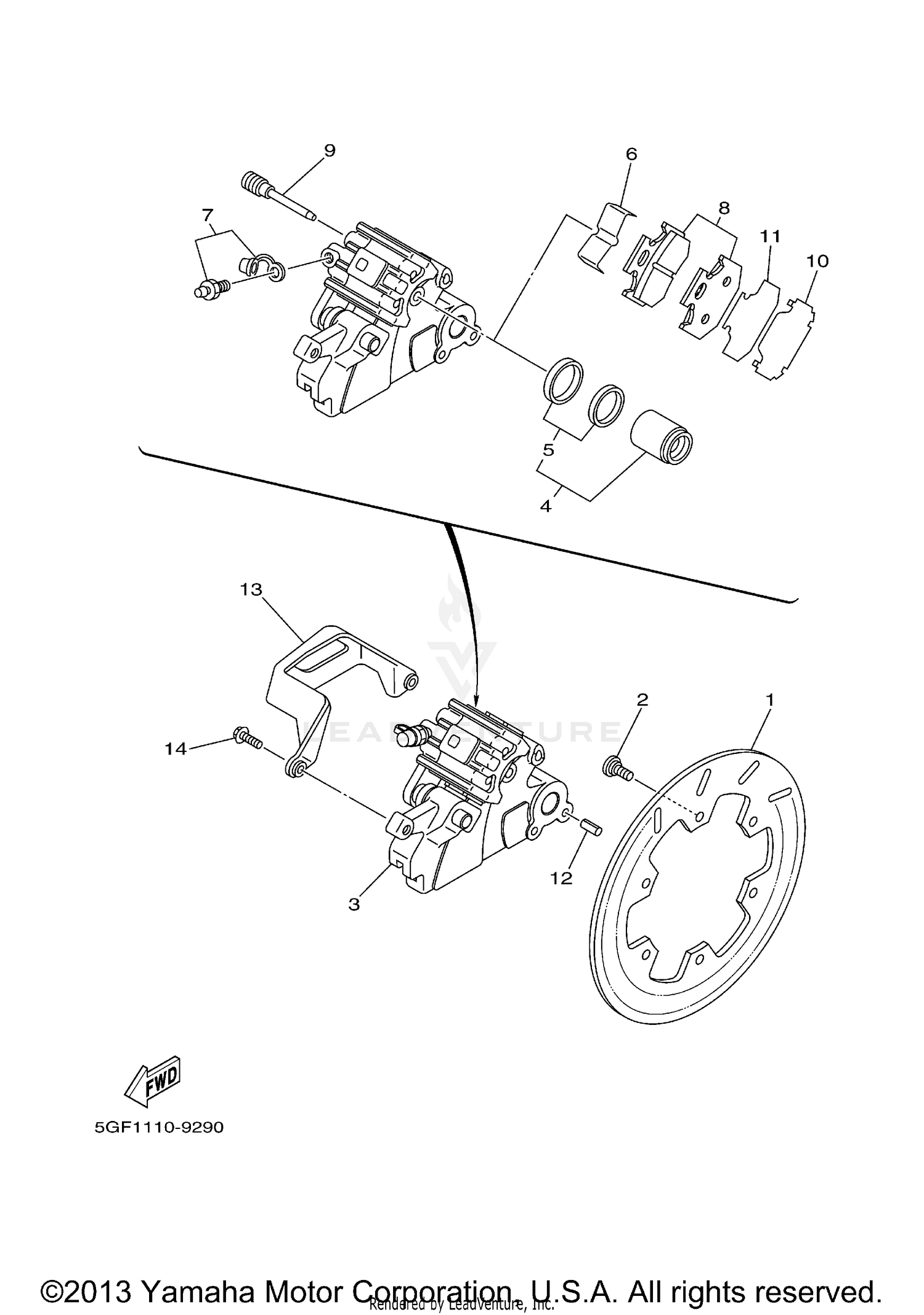

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISK, REAR BRAKE 2
4GY-2582W-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-065F3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY, REAR 2
5GF-2580W-00-00
|
$364.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
3SP-W0057-50-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
3JD-W0047-50-00
Superseded by 3JD-25803-50-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUPPORT, PAD
4GY-25919-50-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT 2
5GF-W0046-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, PAD
3SP-25924-51-00
Superseded by 3FV-25924-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, CALIPER
4GY-25827-50-00
Superseded by 4XM-25827-50-00
|
$19.49 | ||
|
Unavailable |
|||
|
#11
INSULATOR, HEAT
4GY-22898-50-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, SPRING
91690-60016-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
PROTECTOR
4GY-27491-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
