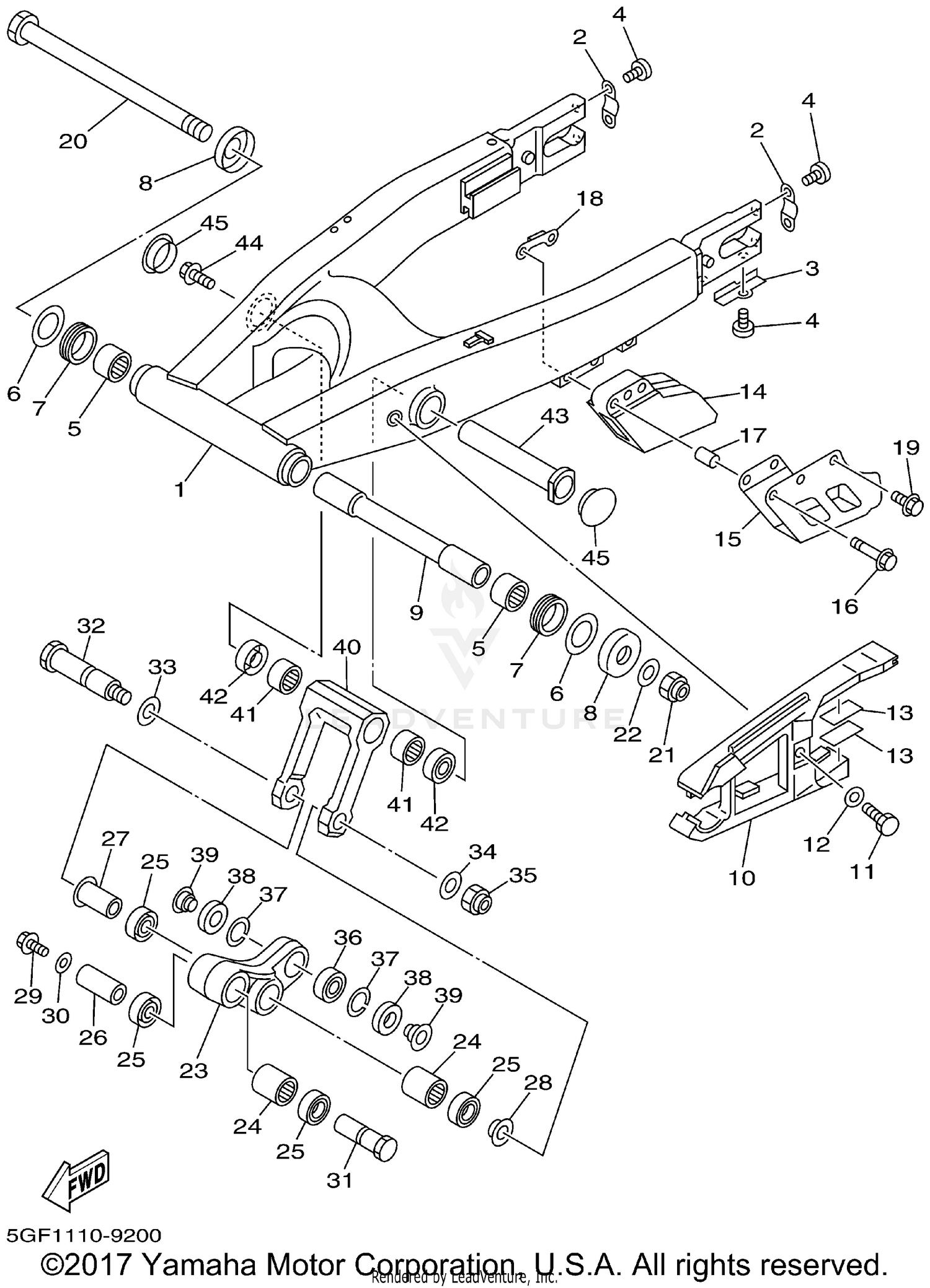

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
5GF-22110-00-00
|
$831.29 | ||
|
Unavailable |
|||
|
#2
END 3
4GY-22177-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET
4GY-22165-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98507-05010-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93315-22251-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-254H8-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL (35-41-8)
93108-35004-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER
30X-2219X-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH
29L-22184-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, GUARD
4GY-22151-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-064K6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER
22F-2139X-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SUPPORT, CHAIN
4RR-22199-00-00
Superseded by 4RR-22199-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#15
COVER, THRUST 1
4RR-22128-01-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95027-06050-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-06513-00
Superseded by 90387-060N3-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
4RR-22143-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95027-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHAFT, PIVOT
5X6-22141-01-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SELF-LOCKING
90185-16127-00
Superseded by 90185-16002-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-164H4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
ARM, RELAY
4GY-2217A-00-00
|
$240.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93315-32053-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93109-20076-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-166X1-00
|
$10.49 | ||
|
Unavailable |
|||
|
#27
COLLAR
90387-1606R-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
90387-164N2-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
95817-10016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-106F2-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
90179-10665-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, UNION
90401-14163-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90201-164H4-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
WASHER, PLATE
90201-14740-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, SELF-LOCKING
90185-14112-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING
93399-99935-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
CIRCLIP
93440-30113-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#38
SEAL, DUST
3XJ-22475-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR
90387-103X9-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
ROD, CONNECTING 1
4GY-2217F-00-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BEARING
93315-32052-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
OIL SEAL
93109-20076-00
|
$14.49 | ||
|
Unavailable |
|||
|
#43
NUT
90179-12666-00
Superseded by 90179-12001-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE
95817-12016-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#45
COVER
1HX-2135F-10-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
