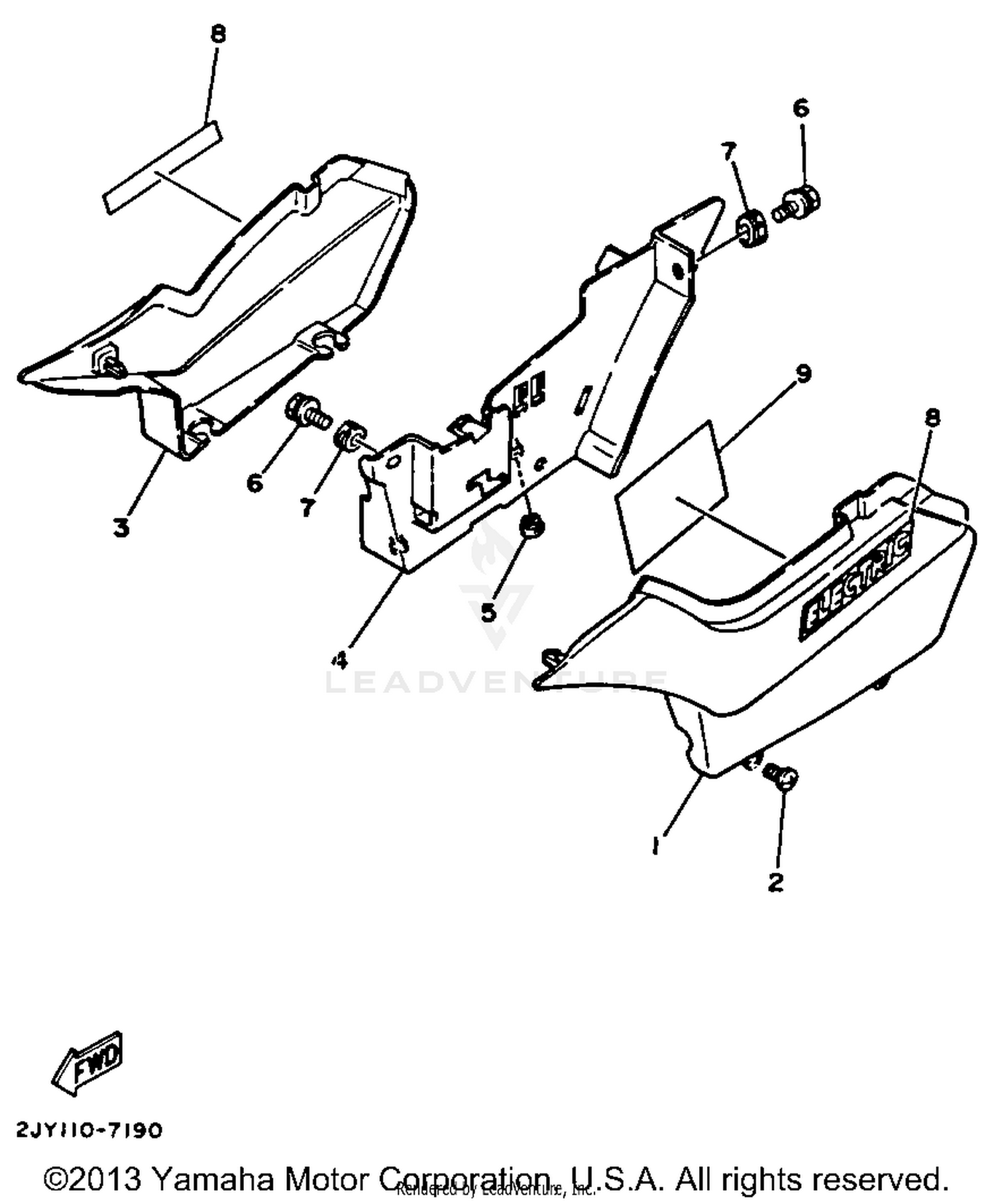

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
2YG-21711-00-98
|
$73.99 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 1
3AW-21711-10-98
|
$77.99 | ||
|
Unavailable |
|||
|
#2
SCREW, BINDING
90154-05013-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, SIDE 2
2YG-21721-00-98
|
$70.72 | ||
|
Unavailable |
|||
|
#
COVER, SIDE 2
3AW-21721-10-98
|
$76.99 | ||
|
Unavailable |
|||
|
#4
BOX
2JX-2177A-00-00
|
$88.99 | ||
|
Unavailable |
|||
|
#5
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET (41Y)
90480-01401-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
EMBLEM 2
3AW-21782-10-00
|
$12.99 | ||
|
Unavailable |
|||
|
#
EMBLEM 2
3AW-21782-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#9
PLATE, EPA U49
3AW-2179V-10-00
|
$16.49 | ||
|
Unavailable |
|||
|
#
PLATE, EPA CAL
3AW-2179N-10-00
|
$14.49 | ||
|
Unavailable |
|||
