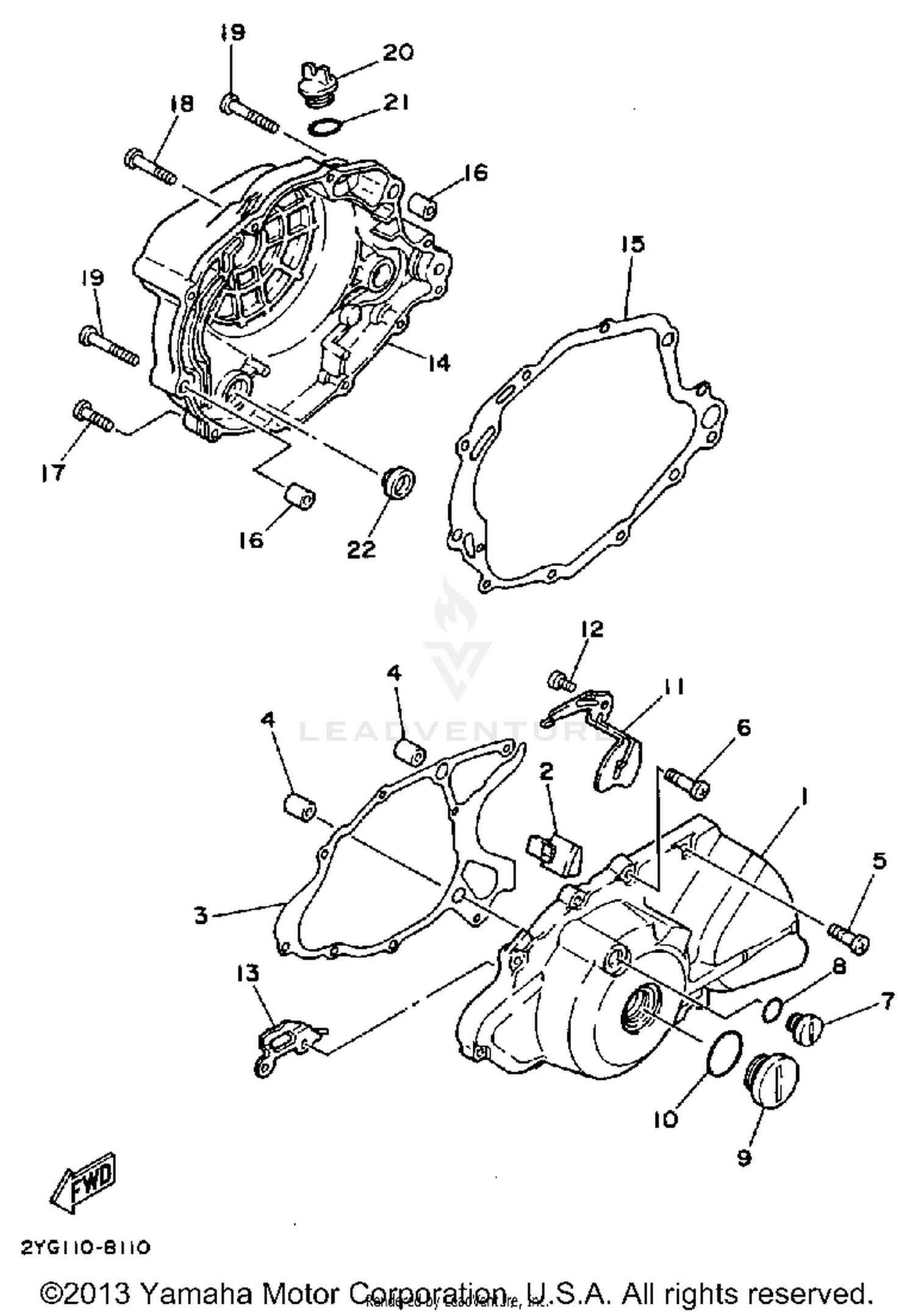

1991 Yamaha TW200B TRAILWAY CRANKCASE COVER 1 OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE COVER ASSEMBLY 1
3AW-15410-00-00
|
$353.99 | ||
|
Unavailable |
|||
|
#2
GUIDE, INLET
2JX-15377-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CRANKCASE COVER 1
3AW-15451-00-00
Superseded by 3AW-15451-03-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98506-06035-00
Superseded by 98507-06035-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, STRAIGHT SCREW
90340-14120-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-14369-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90430-06012-00
Superseded by 90202-05191-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-32172-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90465-08300-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-06010-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90462-16096-00
|
$6.49 | ||
|
Unavailable |
|||
|
#14
COVER, CRANKCASE 3
3AW-15431-01-00
|
$235.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, CRANKCASE COVER 3
4BE-15462-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.60 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.50 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98506-06035-00
Superseded by 98507-06035-00
|
$6.99 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98506-06045-00
Superseded by 98507-06045-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG, OIL
1RG-15363-00-00
Superseded by 3Y1-15363-10-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-19123-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GAUGE, LEVEL
3Y1-15361-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
