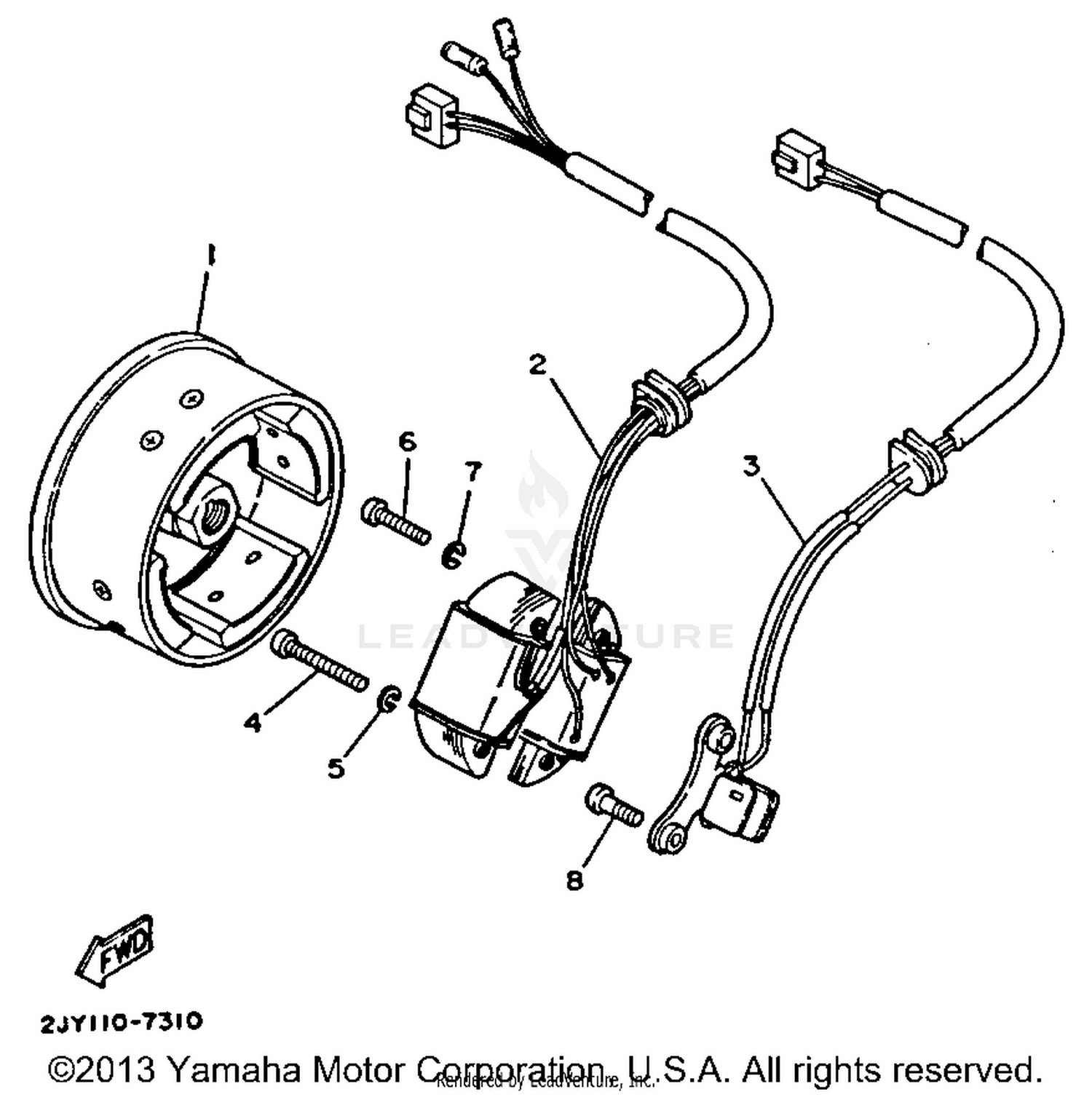

Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROTOR ASSY
3NS-85550-00-00
Superseded by 3NS-85550-01-00
|
$307.99 | ||
|
Unavailable |
|||
|
#2
STATOR ASY
2JX-81410-M0-00
Superseded by 2JX-81410-M1-00
|
$385.99 | ||
|
Unavailable |
|||
|
#3
COIL,PULSER
2JX-85580-M0-00
Superseded by 2JX-85580-M1-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98501-05040-00
Superseded by 98507-05040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98503-05025-00
Superseded by 98580-05525-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
