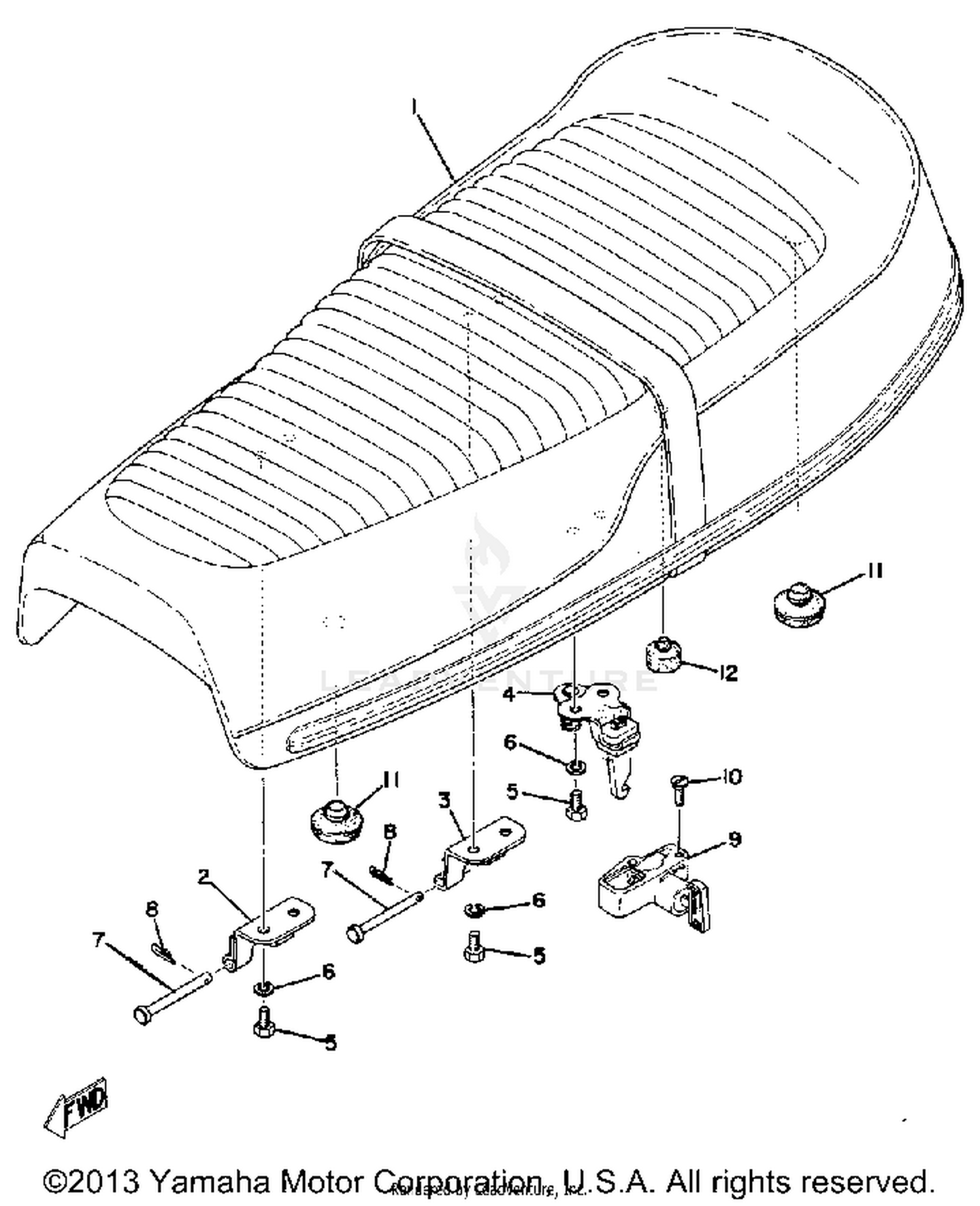

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSEMBLY
371-24730-02-00
|
$175.99 | ||
|
Unavailable |
|||
|
#
COVER, DOUBLE SEAT
371-24731-00-00
|
$31.04 | ||
|
Unavailable |
|||
|
#2
HINGE, SEAT
307-24726-00-33
|
$17.49 | ||
|
Unavailable |
|||
|
#3
HINGE, SEAT
371-24726-01-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, SEAT
371-24728-02-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, CLEVIS
91701-05055-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAT LOCK ASSEMBLY
584-24705-00-00
|
$188.99 | ||
|
Unavailable |
|||
|
#10
SCREW, FLAT HEAD
98706-06012-00
Superseded by 98707-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PAD, SEAT
1L9-24741-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
STOPPER, MAIN STAND
278-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
