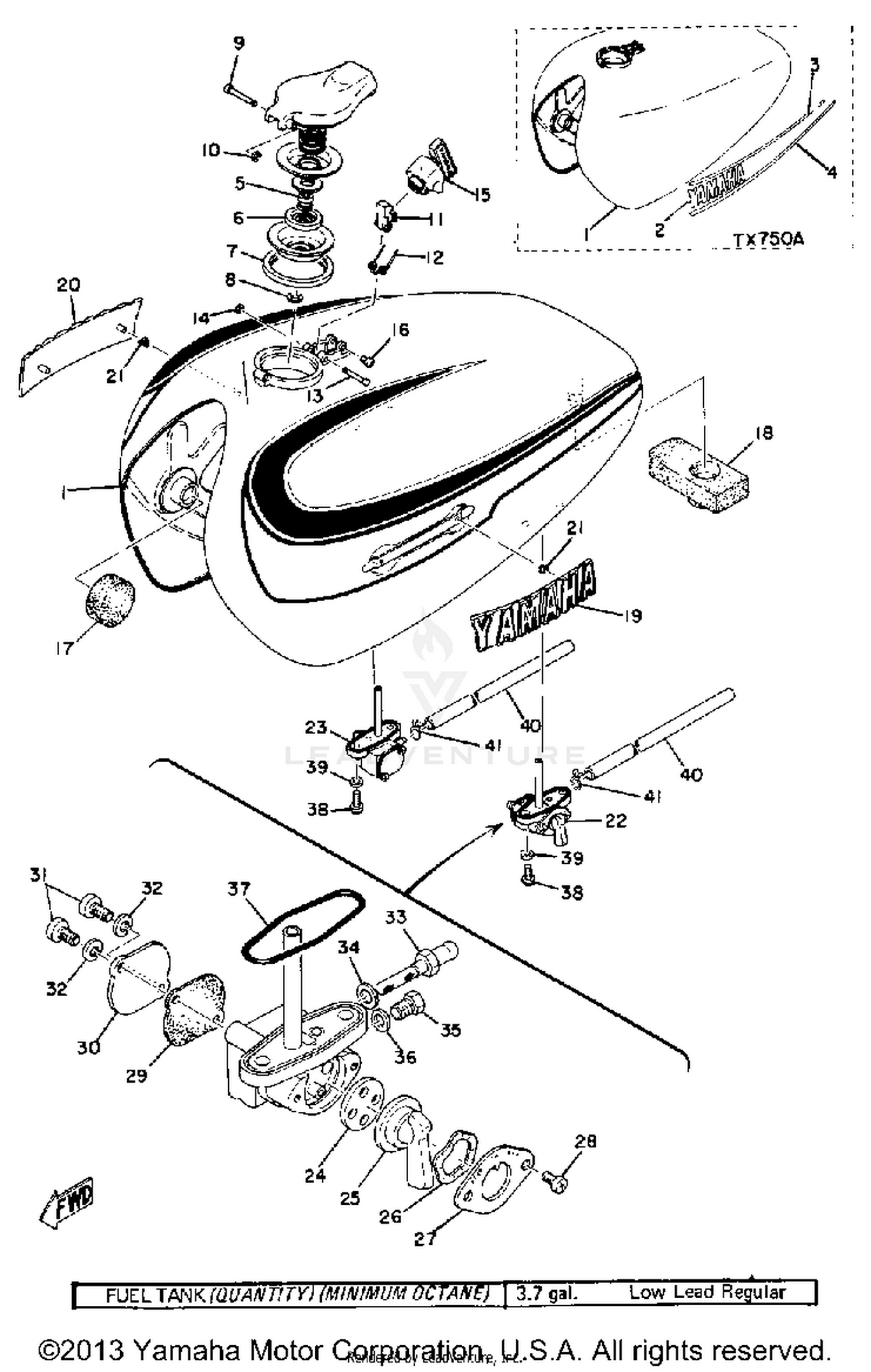

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP ASSEMBLY
341-24653-00-00
|
$36.48 | ||
|
Unavailable |
|||
|
#
FUEL TANK
341-24110-01-01
|
$229.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
341-24110-02-04
|
$314.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
322-24161-00-00
Superseded by 99221-00140-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRAPHIC, FUEL TNK 7
341-24254-01-00
|
$6.04 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, FUEL TNK 8
341-24255-01-00
|
$6.04 | ||
|
Unavailable |
|||
|
#5
GASKET, CAP 2
308-24642-00-00
|
$8.06 | ||
|
Unavailable |
|||
|
#6
GASKET, CAP 1
308-24641-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#7
GASKET, CAP
341-24612-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#8
CIRCLIP
99009-06600-00
Superseded by 99001-06600-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, SPEC''L SHAPE (308-24623-0
90249-03087-00
|
$4.40 | ||
|
Unavailable |
|||
|
#10
CIRCLIP
93430-02001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOOK
341-24628-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#12
SPRING, TORSION
90508-07235-00
|
$5.49 | ||
|
Unavailable |
|||
|
#13
PIN, SPEC''L SHAPE (308-24624-0
90249-03088-00
|
$3.65 | ||
|
Unavailable |
|||
|
#14
CIRCLIP
93430-02001-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
CAP ASSEMBLY
341-24602-01-00
|
$32.70 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, LOCATING 1
341-24181-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#19
EMBLEM 1
341-24161-02-00
|
$8.49 | ||
|
Unavailable |
|||
|
#20
EMBLEM 2
341-24162-02-00
|
$8.49 | ||
|
Unavailable |
|||
|
#21
NUT, SPRING
90183-03006-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
FUEL COCK ASSEMBLY 1
447-24500-02-00
|
$137.99 | ||
|
Unavailable |
|||
|
#23
FUEL COCK ASSEMBLY 2
447-24510-02-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
137-24523-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
GASKET
256-24528-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#25
LEVER, COCK
256-24524-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#26
WASHER, WAVE
132-24518-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLATE, LVR FITTING
132-24525-01-00
|
$3.30 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER (256-24522-00)
647-14227-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CUP, FILTER
256-24521-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#33
NIPPLE
256-24537-00-00
|
$11.64 | ||
|
Unavailable |
|||
|
#35
SCREW, PAN HEAD
98580-05006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
GASKET, BODY 4
801-24437-00-00
|
$3.92 | ||
|
Unavailable |
|||
|
#37
GASKET
256-24512-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIPE 5
90445-09078-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
