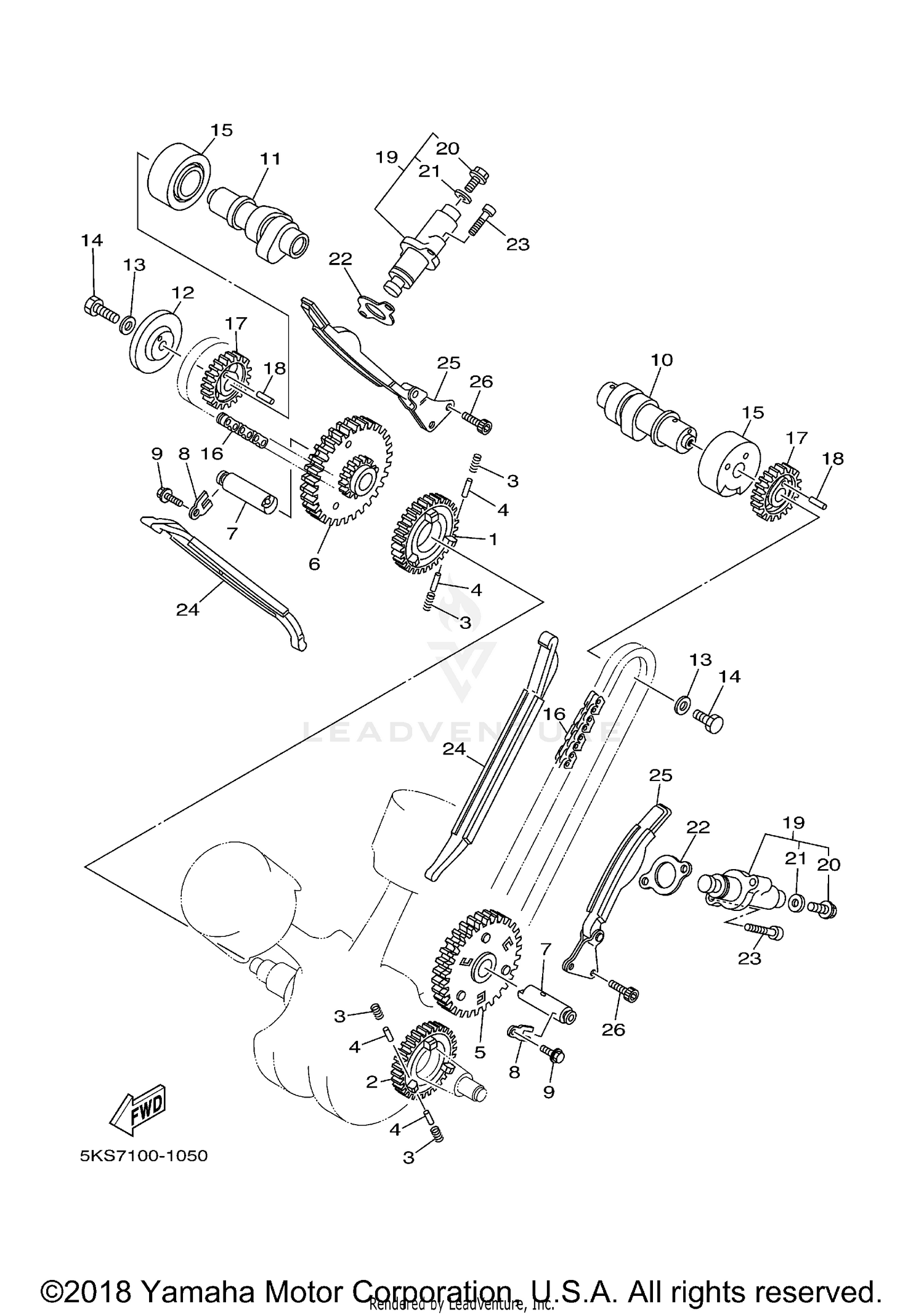

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, DRIVE (35T)
4X7-11536-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#2
GEAR, BREAKER DRIVE (35T)
4X7-11534-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, COMPRESSION
90501-21133-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93605-10090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAM CHAIN SPROCKET ASSY 1
5EL-11540-01-00
|
$266.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAM CHAIN SPROCKET ASSY 2
5EL-11550-01-00
|
$282.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, TENSIONER
5EL-12247-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
90209-06205-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-06154-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAMSHAFT 1
5EL-12171-00-00
|
$230.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAMSHAFT 2
5EL-12181-00-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, BREATHER 2
42X-11145-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-10591-00
Superseded by 90201-10774-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90101-10303-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH, SOLID
90380-25125-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CHAIN
94591-49098-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPROCKET, CAM CHAIN
5EL-12176-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, DOWEL
93604-12037-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
TENSIONER ASSY, CAM CHAIN
5EL-12210-01-00
|
$183.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
5EL-12228-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
5EL-12214-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, TENSIONER CASE
4FM-12213-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUIDE, STOPPER 1
5EL-12231-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GUIDE, STOPPER 2
5EL-12241-01-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEXAGON SOCKET HEAD
91314-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
