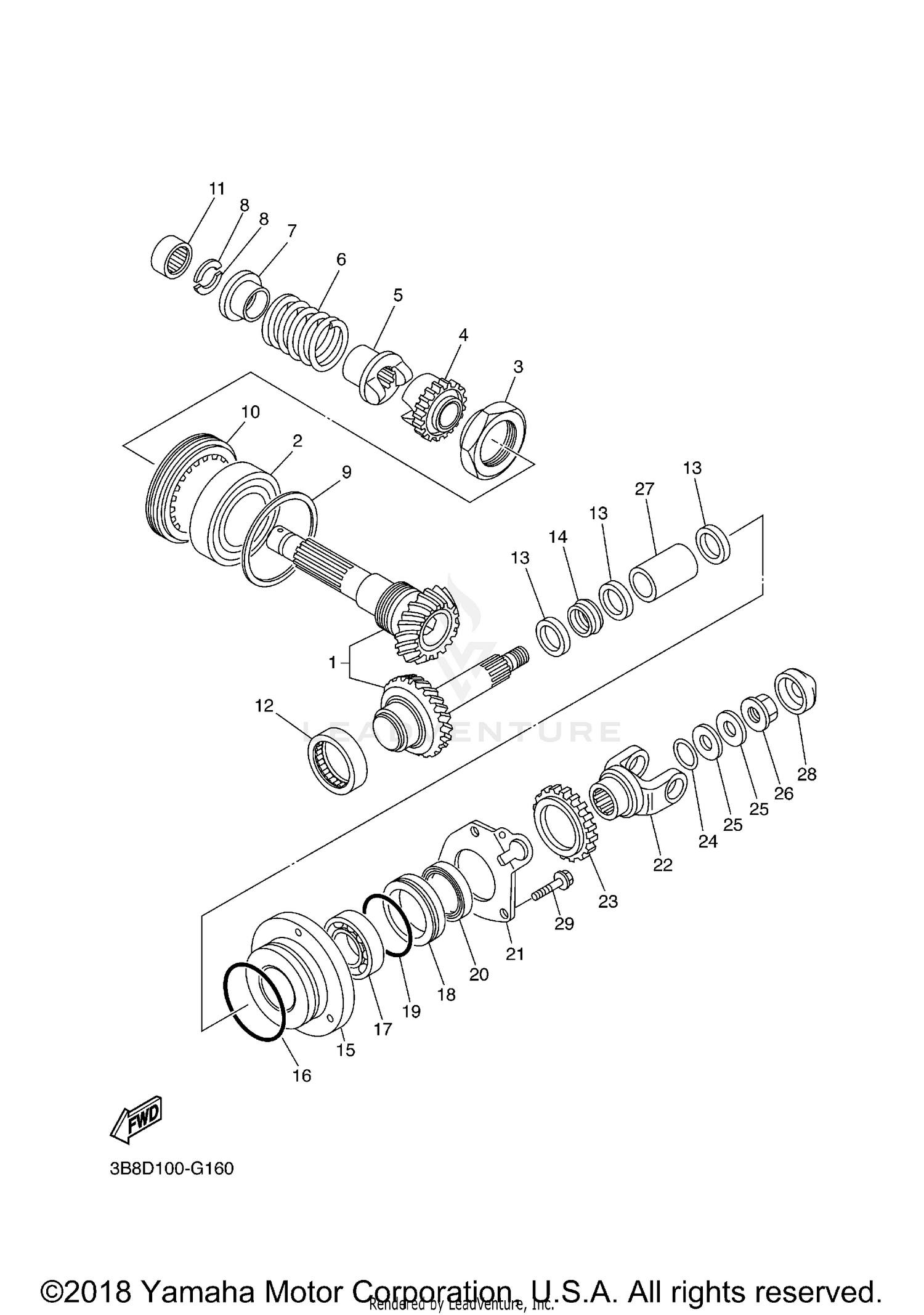

Middle Drive Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MIDDLE GEAR COMP.
5EL-Y1757-10-00
|
$541.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING (B6209RSH2-C2)
93306-20901-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-44328-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAM, DRIVE
42X-17526-01-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAM, DRIVEN
31A-17527-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, COMPRESSION
90501-70762-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER
4X7-17524-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, THRUST
3H5-17529-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM, PINION (0.30T)
4X7-17531-00-30
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM, PINION (0.50T)
4X7-17531-00-50
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM, PINION (0.40T)
4X7-17531-00-40
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM, PINION (0.15T)
4X7-17531-00-15
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90179-88336-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93317-22021-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93311-44051-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-255A6-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER, EXPANSION
1J7-46129-Y1-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOUSING, BEARING
4X7-17551-00-00
Superseded by 11H-17551-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-71360-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93306-20548-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RETAINER, BEARING
4X7-17554-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-52449-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93101-35099-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE, BEARING
5EL-17558-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
YOKE, JOINT
3B8-17556-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
ROTOR
5EL-8135E-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
93210-16001-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-16028-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90179-16013-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-251E1-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAP
3B8-17631-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
90105-08010-00
Superseded by 95817-08030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
