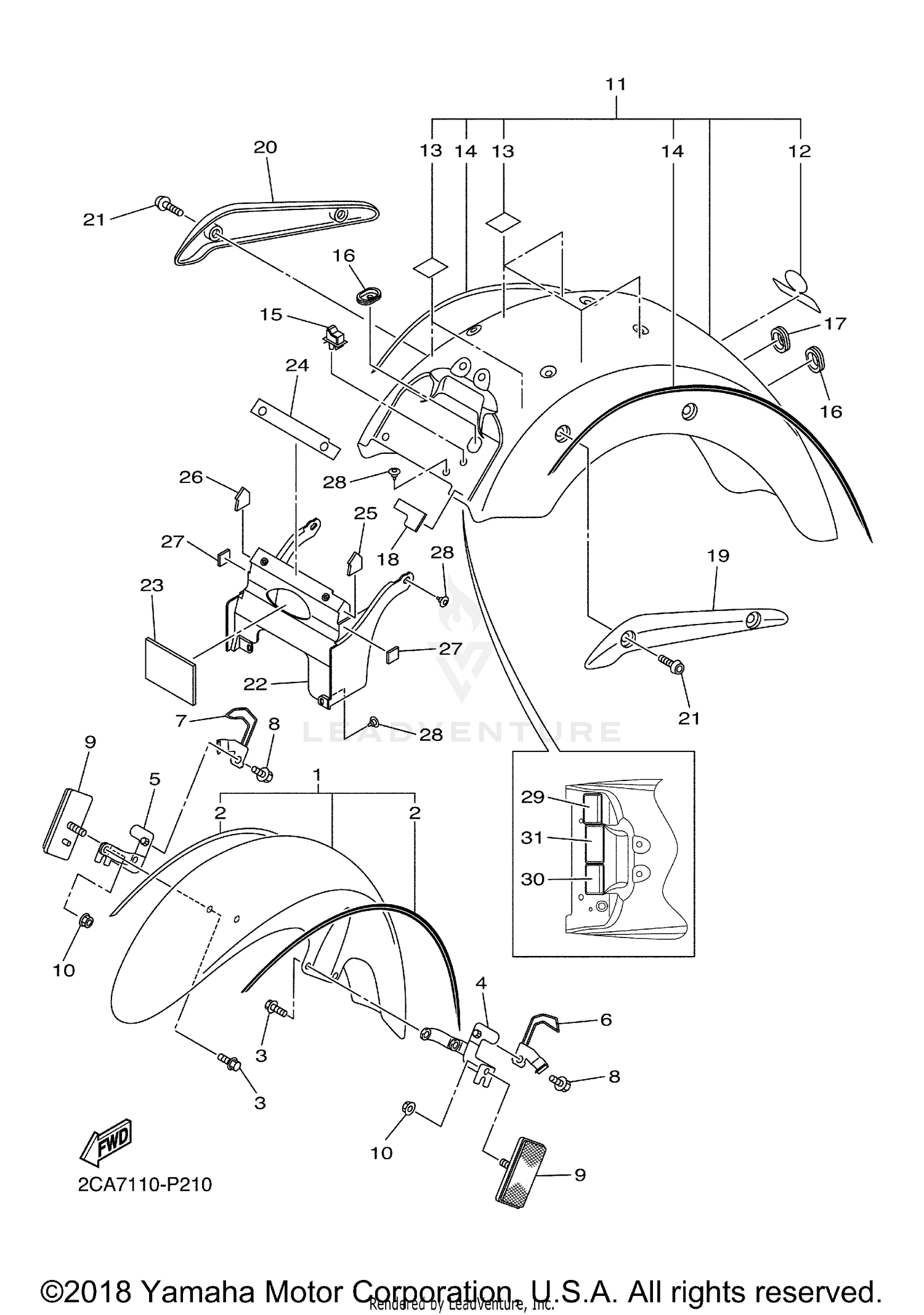

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER ASSY
3D8-Y2151-51-PG
|
$475.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRAPHIC, FRONT FENDER SET
5S6-21570-40-00
|
$160.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95812-08020-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY 1
3D8-21587-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY 2
3D8-21588-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER,WIRE 1
3D8-21597-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, WIRE 2
3D8-21598-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95027-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
REFLECTOR ASSY
11H-85110-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
REAR FENDER ASSY
3D8-W216R-83-P9
|
$1,011.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
EMBLEM 1
5S7-2163G-00-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL
5PX-21669-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GRAPHIC SET, REAR FENDER
5S6-2165A-40-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90464-16021-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-01015-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG
90338-20004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER
3D8-21747-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAY 1
3D8-2164F-10-00
|
$317.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY 2
3D8-2164G-10-00
|
$317.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEX. SOCKET BUTTON
90111-08033-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUARD, MUD
3D8-21629-00-PG
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FLAP
3D8-21621-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER 1
3D8-21638-00-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER 2
3D8-21639-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER
3D8-21649-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
PROTECTOR
3D8-21652-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
RIVET
90269-07077-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE, ROUTING 2
5RU-21686-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLATE, ROUTING
34B-21684-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
LABEL, TIRE
1D7-21668-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
