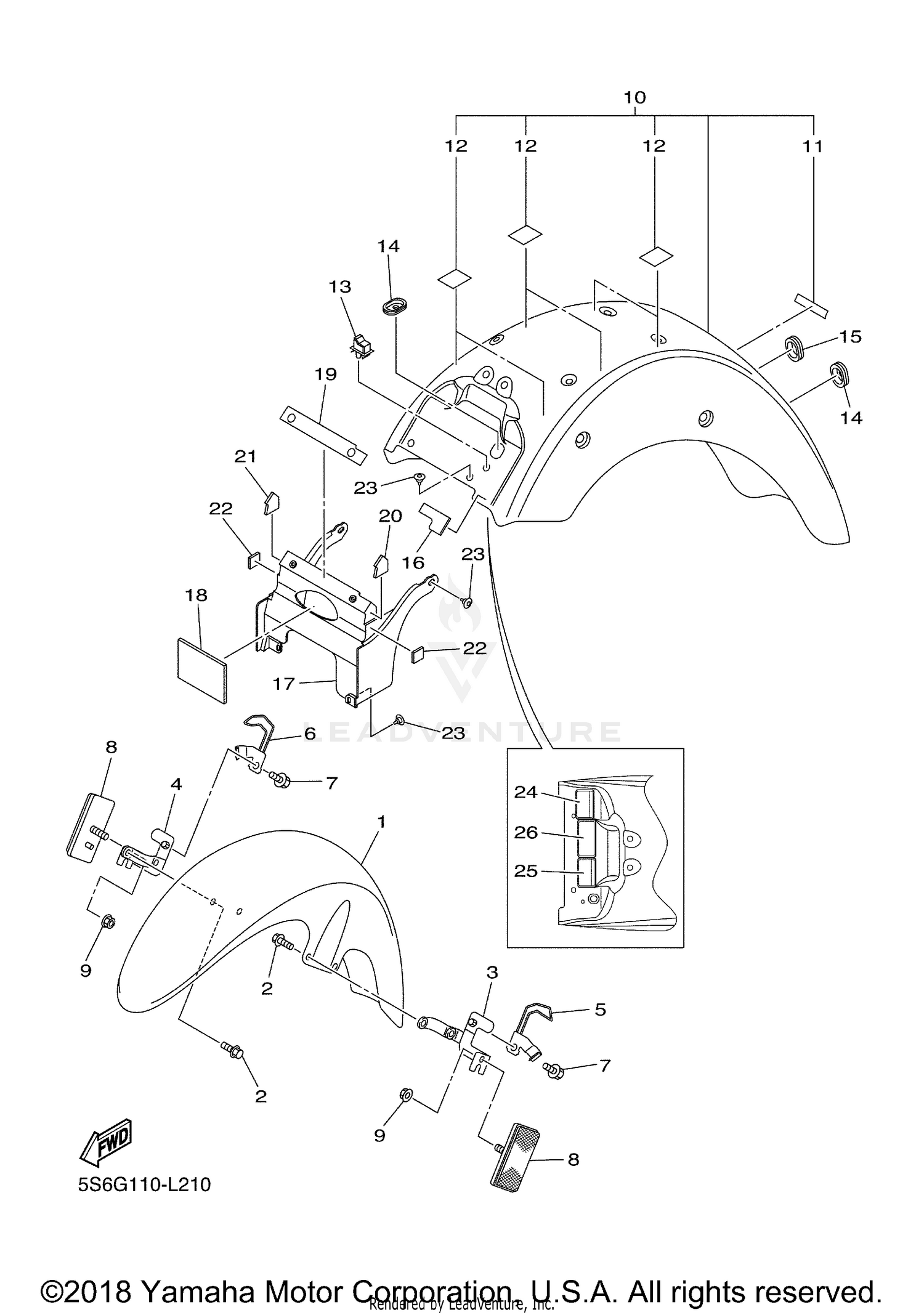

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
3D8-21510-01-P9
|
$371.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95812-08020-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY 1
3D8-21587-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY 2
3D8-21588-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER,WIRE 1
3D8-21597-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER, WIRE 2
3D8-21598-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95027-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
REFLECTOR ASSY
11H-85110-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
REAR FENDER ASSY
3D8-W216R-11-P3
|
$1,022.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
EMBLEM, YAMAHA
1D6-2153E-00-00
Superseded by 3WF-2153E-71-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL
5PX-21669-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90464-16021-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-01015-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG
90338-20004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER
3D8-21747-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUARD, MUD
3D8-21629-00-P9
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FLAP
3D8-21621-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER 1
3D8-21638-00-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER 2
3D8-21639-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER
3D8-21649-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
PROTECTOR
3D8-21652-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
RIVET
90269-07077-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, ROUTING 2
5RU-21686-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, ROUTING
34B-21684-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
LABEL, TIRE
1D7-21668-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
