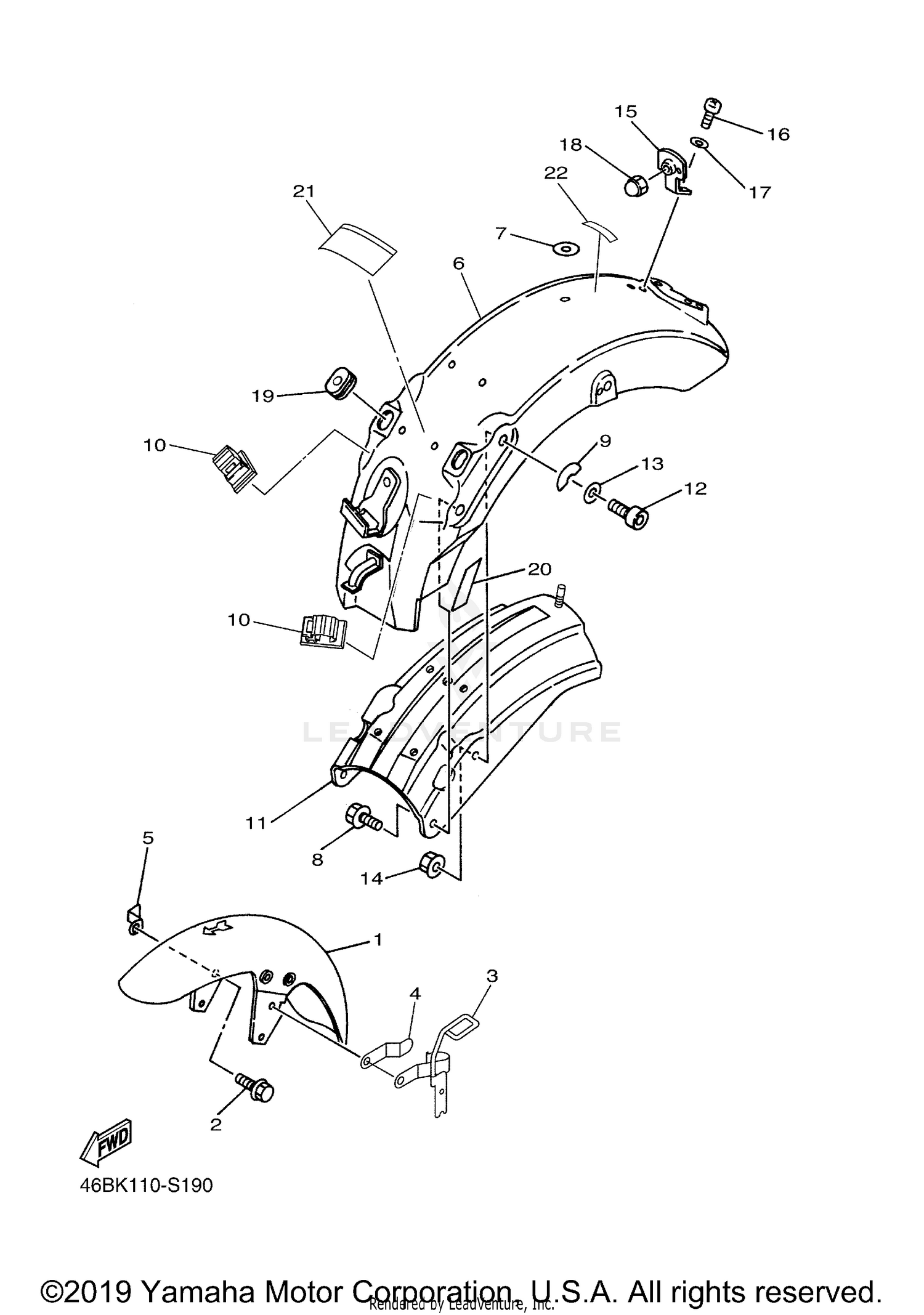

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
2UJ-21510-00-P6
Superseded by 2UJ-21510-01-P6
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE (SMALL HEAD)
95024-08012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, WIRE 1
3DN-21597-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER 2
2UJ-26116-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET
3DN-21586-00-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
REAR FENDER COMP.
2UJ-21610-00-PC
|
$292.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL 2
2UJ-21735-00-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95817-10020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL 4
3DM-2173N-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90464-14002-00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
REINF. COMP.
2UJ-21670-20-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. SOCKET HEAD
91317-10035-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
92907-10600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE
95707-10500-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, REFLECTOR
2UJ-21641-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98507-05010-00
Superseded by 98517-05010-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
92907-05600-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
95307-05800-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-01502-00
Superseded by 90480-15061-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL 3
2UJ-2173M-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
LABEL, NOTICE BATTERY
10D-2815N-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
EMBLEM, YAMAHA
1D6-2153E-00-00
Superseded by 3WF-2153E-71-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
