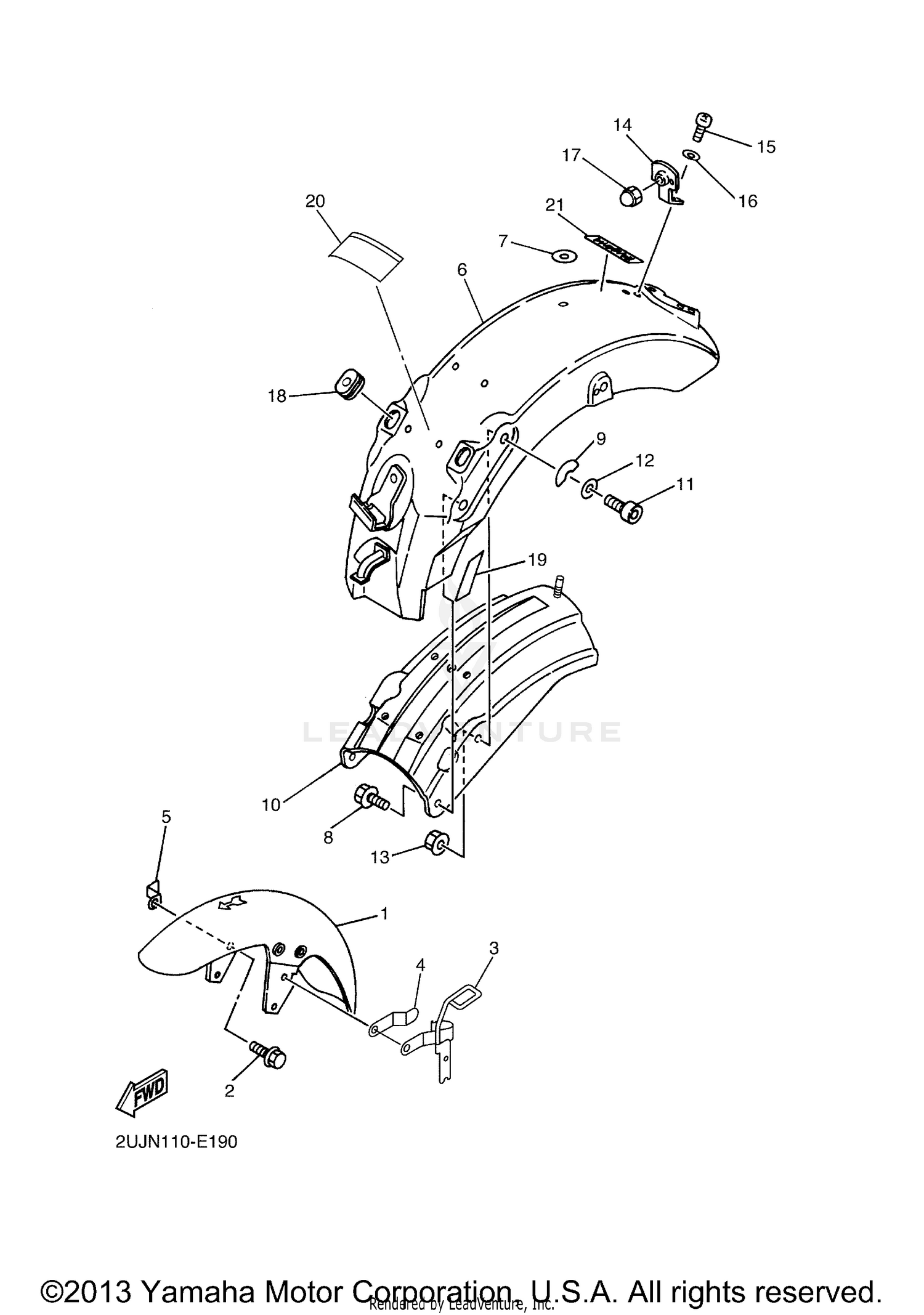

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
2UJ-21510-00-P7
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE (SMALL HEAD)
95024-08012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER,WIRE 1
3DN-21597-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER 2
2UJ-26116-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET
3DN-21586-00-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
REAR FENDER COMP.
2UJ-21610-00-PD
|
$345.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL 2
2UJ-21735-00-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95817-10020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL 4
3DM-2173N-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
REINF. COMP.
2UJ-21670-20-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91317-10035-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92907-10600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE
95707-10500-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, REFLECTOR
2UJ-21641-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98507-05010-00
Superseded by 98517-05010-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92907-05600-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95307-05800-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
90480-01502-00
Superseded by 90480-15061-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL 3
2UJ-2173M-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
LABEL, NOTICE BATTERY
10D-2815N-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
EMBLEM, YAMAHA
99246-00080-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
