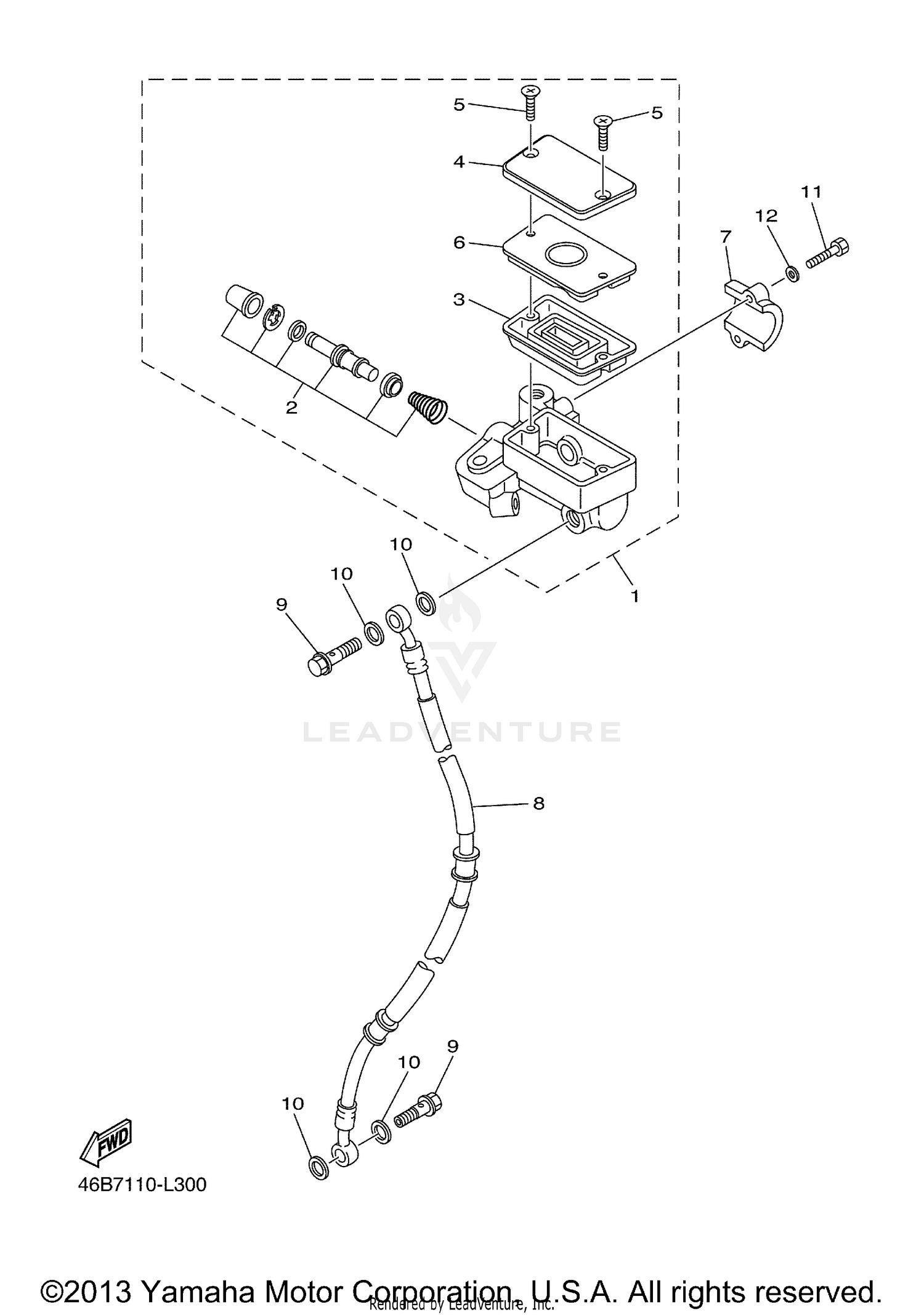

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
19D-25870-00-00
|
$183.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
23L-W0041-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
4L0-25854-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
19D-25852-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98707-04012-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, DIAPHRAGM
19D-25855-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, MASTER CYLINDER
4L0-25867-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, BRAKE 1
46B-25872-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, UNION
90401-10020-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
90430-10005-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92907-06600-00
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
