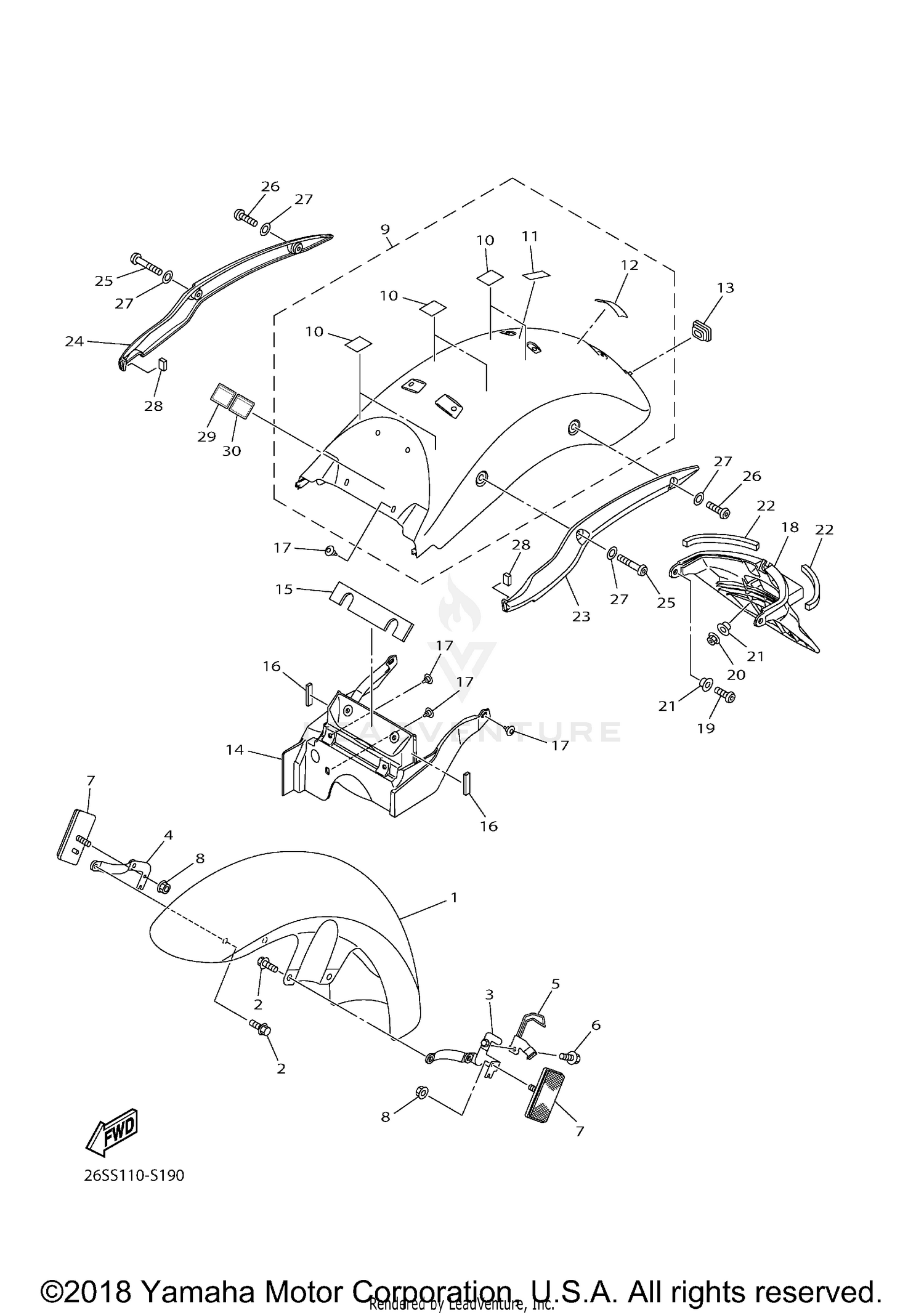

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
5S7-21510-01-P4
|
$393.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95812-08020-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY 1
5S7-21587-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY 2
5S7-21588-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER,WIRE 1
3D8-21597-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95027-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
REFLECTOR ASSY
11H-85110-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
REAR FENDER COMP.
5S7-W2161-01-P4
|
$546.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL
5PX-21669-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL
5S7-21669-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
EMBLEM, YAMAHA
1D6-2153E-00-00
Superseded by 3WF-2153E-71-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-13027-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, MUD
5S7-21629-00-P4
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER 1
5S7-21638-00-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER 2
5S7-21639-00-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
RIVET
90269-07077-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
FENDER 2
5S7-2162R-00-00
Superseded by 5S7-2162R-01-00
|
$34.99 | ||
|
Unavailable |
|||
|
#19
BOLT, BUTTON HEAD
92012-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-07717-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL
4DN-21669-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY 1
5S7-2164F-01-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
STAY 2
5S7-2164G-01-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, BUTTON HEAD
92014-08045-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, BUTTON HEAD
92014-08030-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER, LOCATING 1
3MA-24181-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE, ROUTING 2
5RU-21686-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLATE, ROUTING
34B-21684-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
