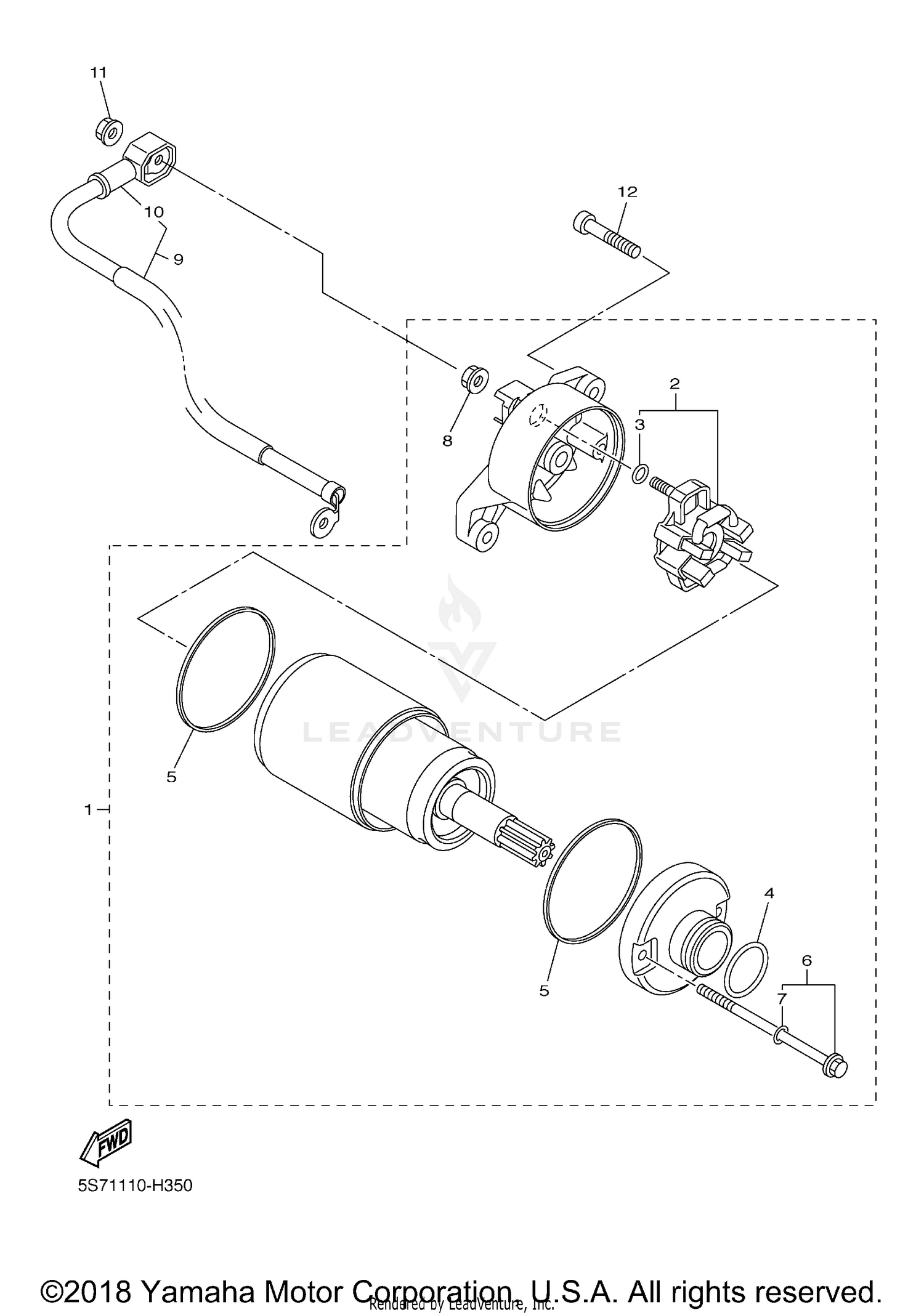

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY
5S7-81890-10-00
|
$386.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRUSH HOLDER ASSY
4B5-81840-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
3TB-81847-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
1FK-81847-00-00
Superseded by 93210-24235-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
35C-81844-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
28P-81826-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
3TB-81847-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#8
NUT
4XV-8182A-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CORD, STARTER MOTOR
5S7-81815-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP
4B5-81871-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
4XV-8182A-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
91314-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
