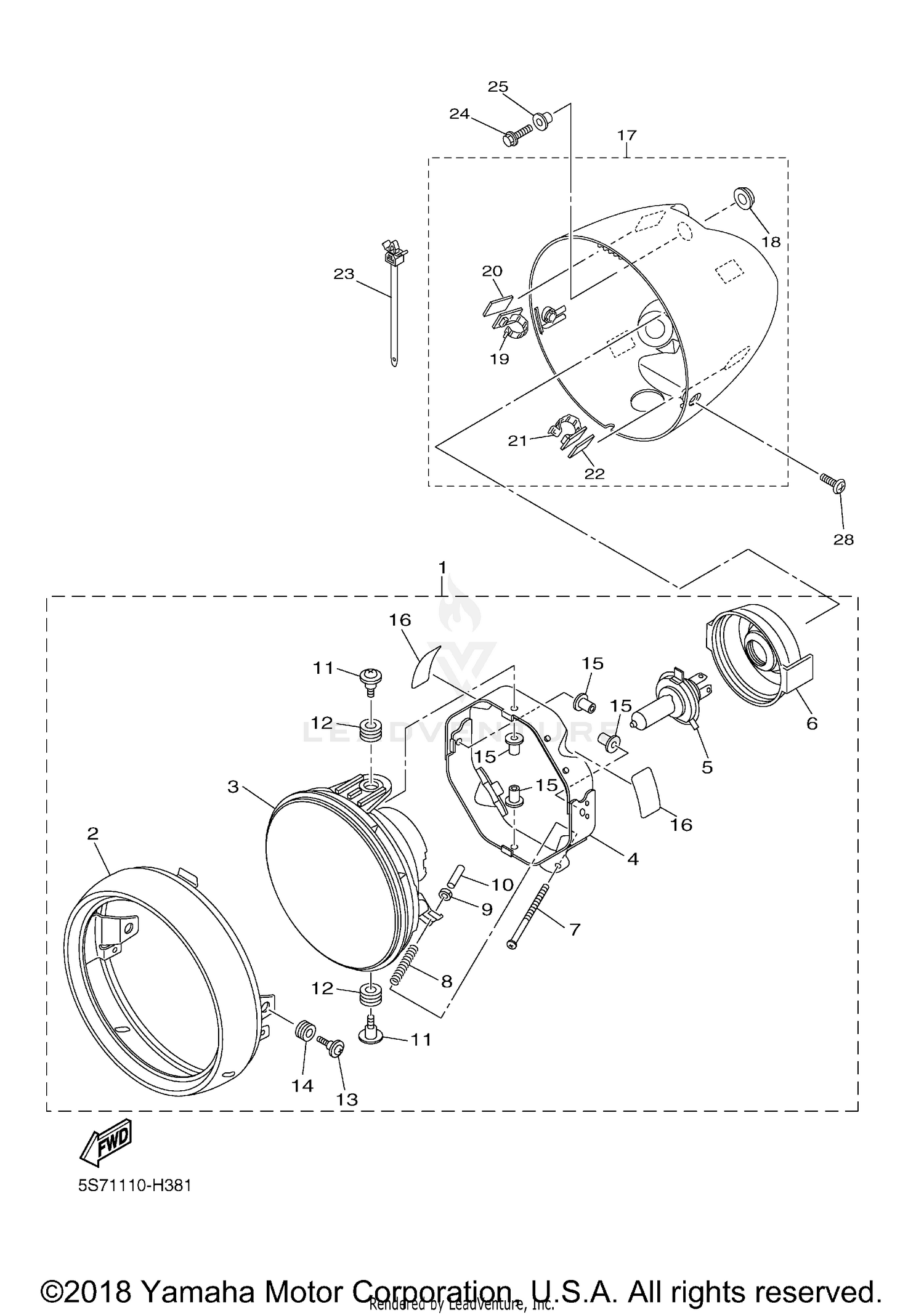

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASSY
5S7-84310-00-00
|
$449.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RIM, HEADLIGHT
5S7-84315-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS ASSY
5PX-84320-00-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, HEADLIGHT 1
5PX-84318-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB, HEADLIGHT (12V-60/55W)
8G9-84314-00-00
Superseded by 8V0-84314-10-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, SOCKET
5PX-84397-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, RIM ADJUSTING
5PX-84331-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SCREW
5PX-84332-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, ADJUSTING
5PX-84334-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, 1
5PX-84385-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, RIM FITTING
5PX-84325-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
5PX-84354-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, RIM FITTING
5PX-84125-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
5PX-84352-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
5PX-84317-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL
5PX-21669-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BODY ASSY
5S7-84330-00-P0
|
$162.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, HEADLIGHT 1
42X-84366-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-20020-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL
5S7-28307-00-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90464-17002-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL 1
5S7-28428-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90465-13M76-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95022-06025-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-06175-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, BIND
98980-05014-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
