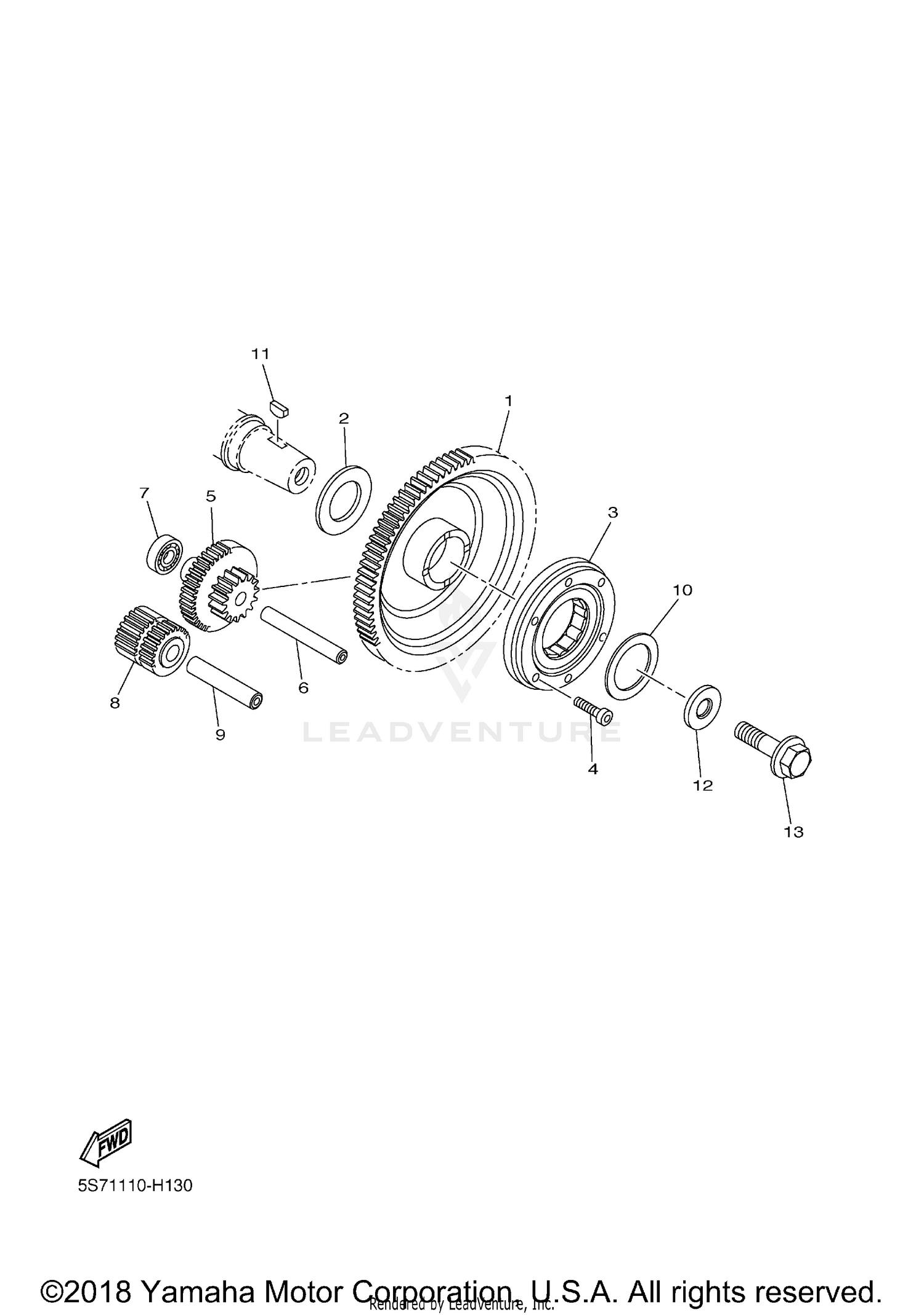

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR 3
5S7-15515-00-00
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER
5S7-15561-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
STARTER ONE-WAY ASSY
3LD-15590-02-00
|
$275.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90110-06169-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, IDLER 1
5S7-15512-01-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT 1
1D7-15521-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-00006-00
Superseded by 93306-00004-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, IDLER 1
3D8-15512-01-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT 2
4WM-15522-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-350F3-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
KEY, WOODRUFF
90280-05048-00
Superseded by 90280-05001-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-12008-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-12584-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
