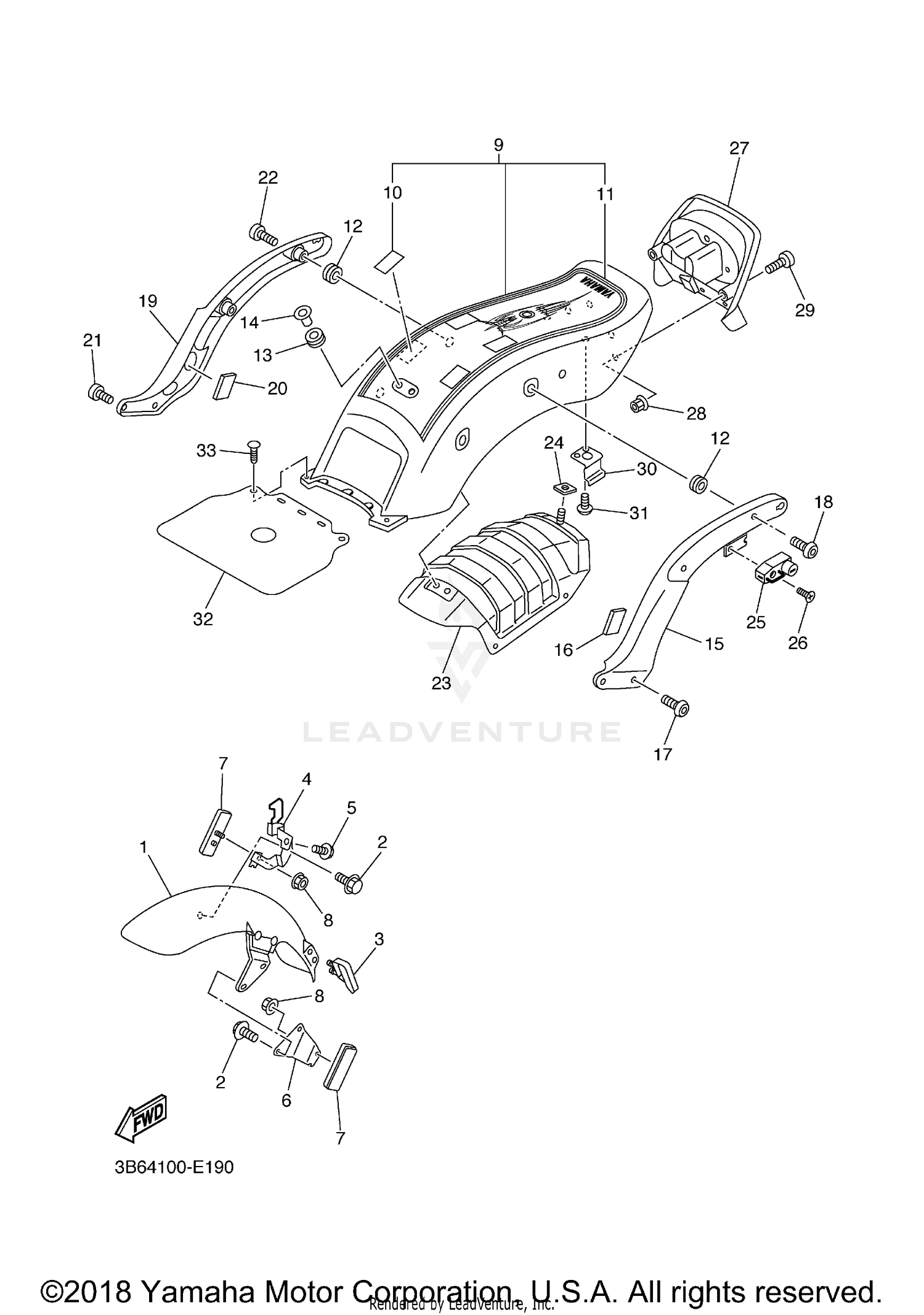

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
4TR-21510-02-PF
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95027-08012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, CABLE
4VR-21518-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, WIRE 2
5FB-21598-01-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95807-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, REFLECTOR 1
5FB-85112-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
REFLECTOR ASSY
11H-85110-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
REAR FENDER COMP.
4TR-Y2161-0L-PG
Superseded by 4TR-Y2161-62-PG
|
$318.99 | ||
|
Unavailable |
|||
|
#10
SEAL 1
3SP-21732-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GRAPHIC, REAR FENDER
3B6-21675-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#12
GROMMET
90480-18418-00
Superseded by 90480-18495-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-067N5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY, FENDER 1
4TR-21613-01-00
|
$240.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER
3SX-2139X-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
90157-10043-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BUTTON HEAD
92014-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAY, FENDER 2
4TR-21614-01-00
|
$256.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER
3SX-2139X-00-00
|
$2.25 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
90157-10043-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
BOLT, BUTTON HEAD
92014-08040-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
STAY, REAR
4TR-21643-00-00
Superseded by 4TR-21643-01-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, SEAT
5FB-24737-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
HELMET HANGER ASSY
4R8-21308-00-00
Superseded by 26H-21308-01-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW
90149-06154-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
FENDER 2
5FB-2162R-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
90179-05523-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, BINDING
90154-05011-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOLDER, HARNESS
4TR-21679-00-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, TRUSS HEAD TAPPING
90167-05025-00
Superseded by 97707-50012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
GUARD, MUD
4TR-21629-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
RIVET
90269-05039-00
Superseded by 90269-05055-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
