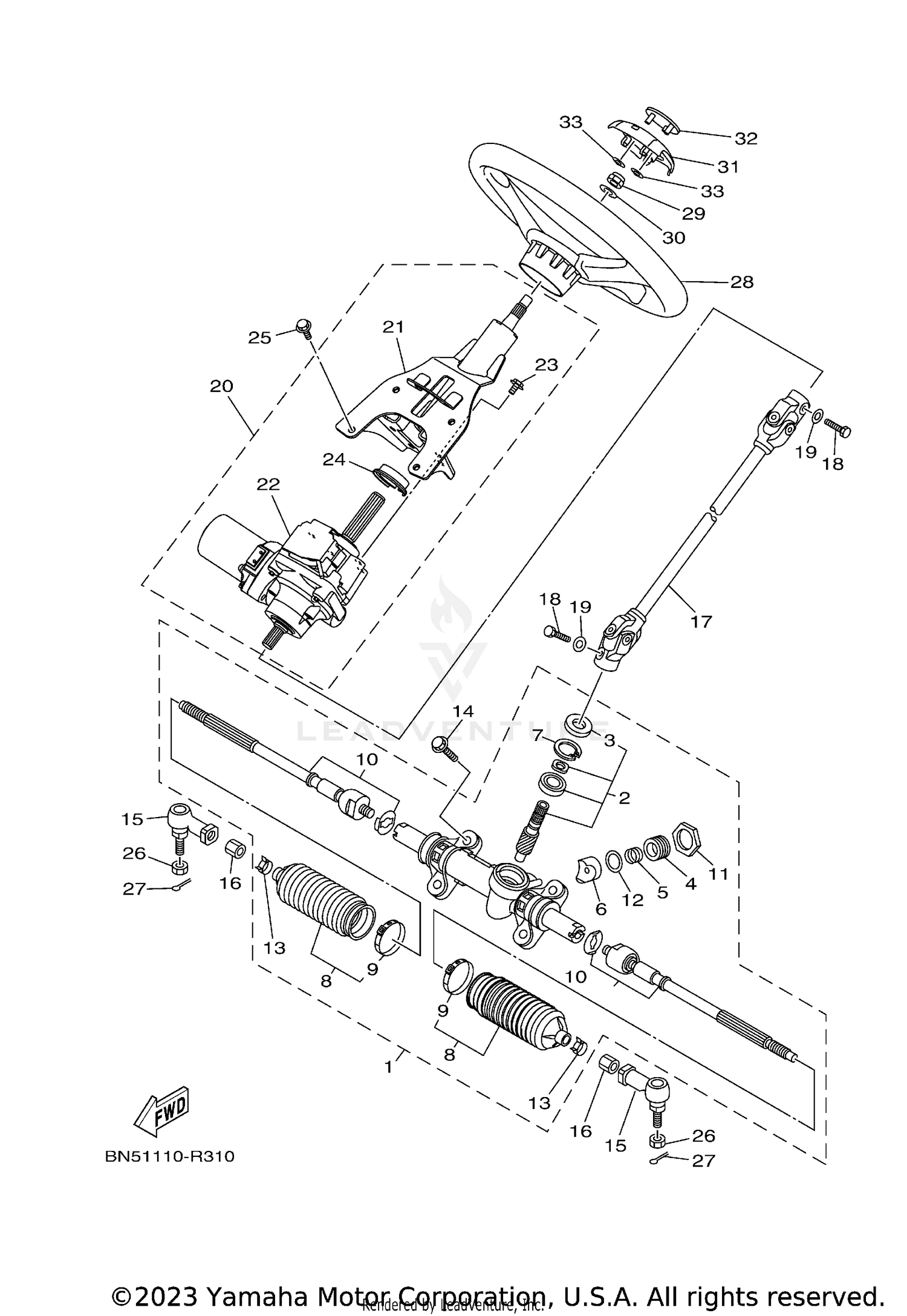

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STEERING ASSY
1XD-F3400-00-00
Superseded by 1XD-F3400-01-00
|
$213.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STEERING PINION SET
1XD-F38G0-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL
1XD-F3844-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, ADJUST
1XD-F387G-00-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, PRESSURE
1XD-F387K-00-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
PAD, PRESSURE
1XD-F387F-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, STOPPER
1XD-F387J-00-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL SET, 1
1XD-F1208-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND
1XD-F3489-00-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
RACK END SET
1XD-F38H0-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK ASSY
1XD-F178K-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, FELT
1XD-F3165-00-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
1XD-F3447-00-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95022-10030-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
JOINT, UNIVERSAL 1
B42-23841-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT 1
2PG-F3833-00-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
STEERING SHAFT ASSY
1XD-F3840-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
91312-08025-00
Superseded by 91317-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-083P5-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
STEERING COLUMN ASSY
2MB-23810-00-00
|
$2,406.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLUMN, STEERING 2
2MB-23813-00-00
|
$281.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
STEERING COLUMN ASSY
2MB-238B0-00-00
Superseded by 2HC-23810-06-00
|
$2,253.99 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE
95812-08020-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, DUST
2MB-2384L-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95812-08020-00
|
$2.65 | ||
|
Unavailable |
|||
|
#26
NUT, CASTLE
90171-12001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, COTTER
91402-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WHEEL, STEERING
2HC-F3838-00-00
Superseded by 2HC-F3838-02-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, SELF-LOCKING
90185-12008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLAIN
92902-12200-00
Superseded by 92990-12200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER, STEERING
2HC-F3818-00-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
TUNING FORK MARK
1XD-F175B-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, SPRING
90183-06071-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
