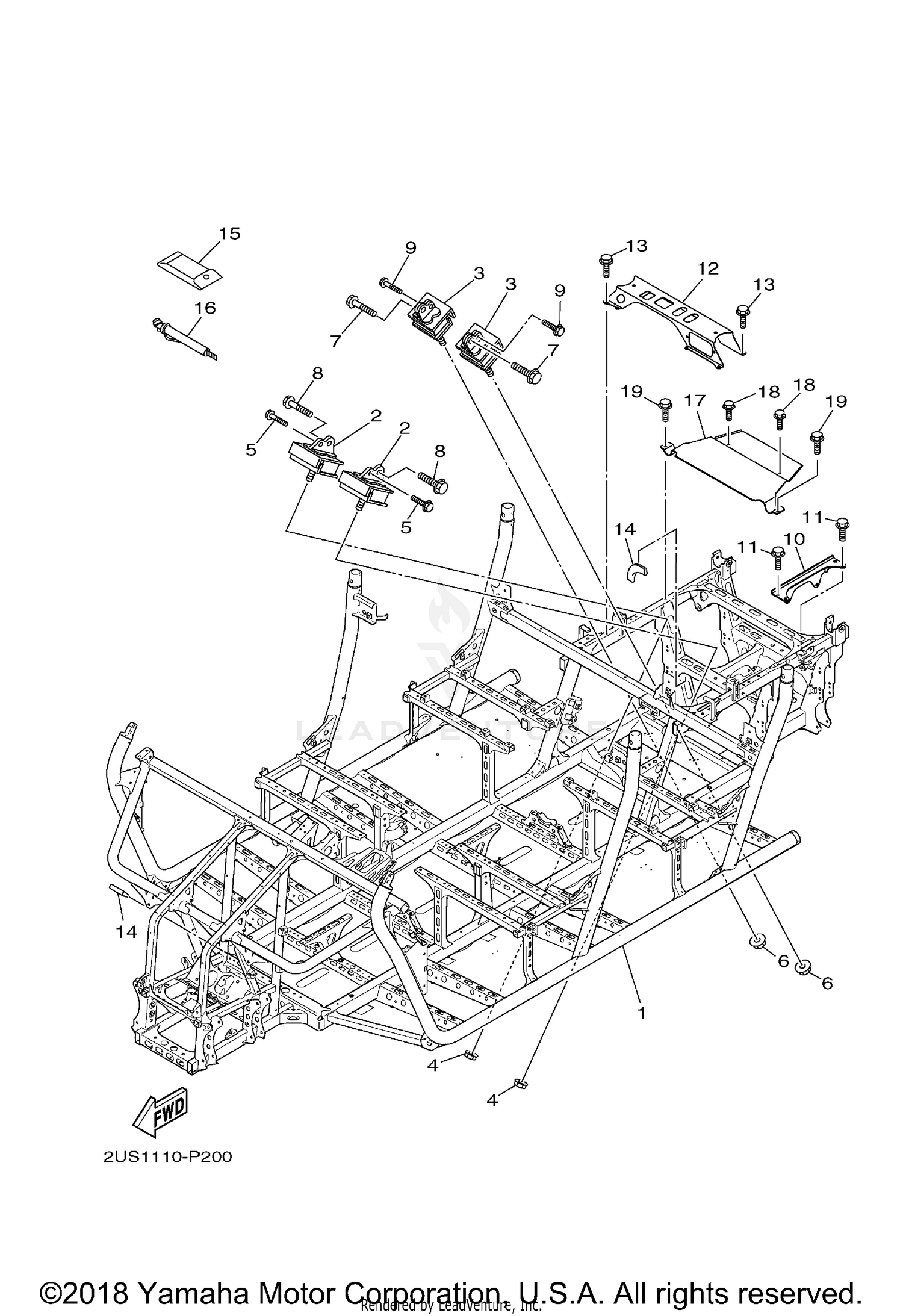

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
2PG-F1110-00-00
|
$1,860.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER, RUBBER 1
2PG-21485-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, RUBBER 1
2PG-21485-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#4
NUT, SELF-LOCKING
90185-10011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-06639-00
Superseded by 95024-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SELF-LOCKING
90185-10011-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
95812-10035-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-10314-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-06639-00
Superseded by 95024-06016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#10
STAY, SUPPORT 1
2PG-F831T-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT,FLANGE (JN5)
95812-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PROTECTOR 1
1XD-F834V-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-08867-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
MOLE 3
4XY-28347-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
TOOL KIT
5B4-F8100-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GAUGE, AIR
1XD-F811A-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
INSULATOR, HEAT
1XD-F2898-10-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-08867-00
|
$14.49 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
90105-08867-00
|
$14.49 | ||
|
Unavailable |
|||
