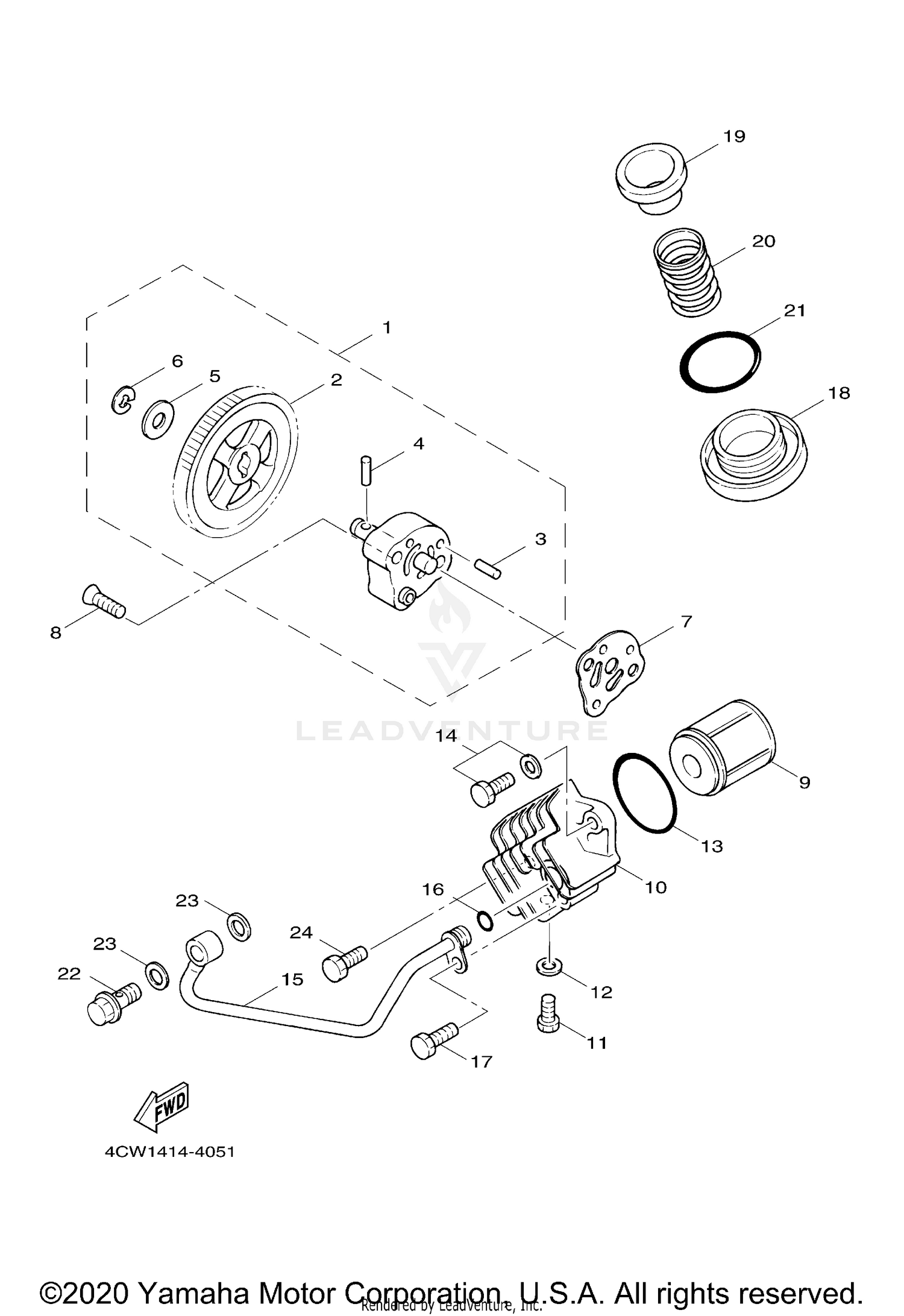

2009 Yamaha VINO 125 OIL PUMP OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSY
4CW-E3300-20-00
Superseded by 1CF-E3300-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PUMP DRIVEN
4CW-E3325-10-00
Superseded by 1CF-E3325-00-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
93603-12833-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93602-13832-00
Superseded by 93602-13177-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-077F5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
99001-05600-00
Superseded by 99080-05600-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
3UH-E3475-00-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, FLAT HEAD
98707-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
ELEMENT ASSY, OIL CLEANER
3UH-E3440-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, OIL ELEMENT
5NV-E3447-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT(3JP)
97007-06010-00
Superseded by 97017-06010-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-06166-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (705)
93210-44880-00
Superseded by 93210-44383-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WITH WASHER
90119-06841-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL PIPE COMP. 1
4CW-E3405-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-08800-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
91317-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, DRAIN
5NW-E5341-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
STRAINER, OIL
3KW-E3411-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, COMPRESSION
90501-16829-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-35879-00
Superseded by 93210-347A1-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, UNION
90401-08803-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-08087-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, WITH WASHER
90119-06840-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
