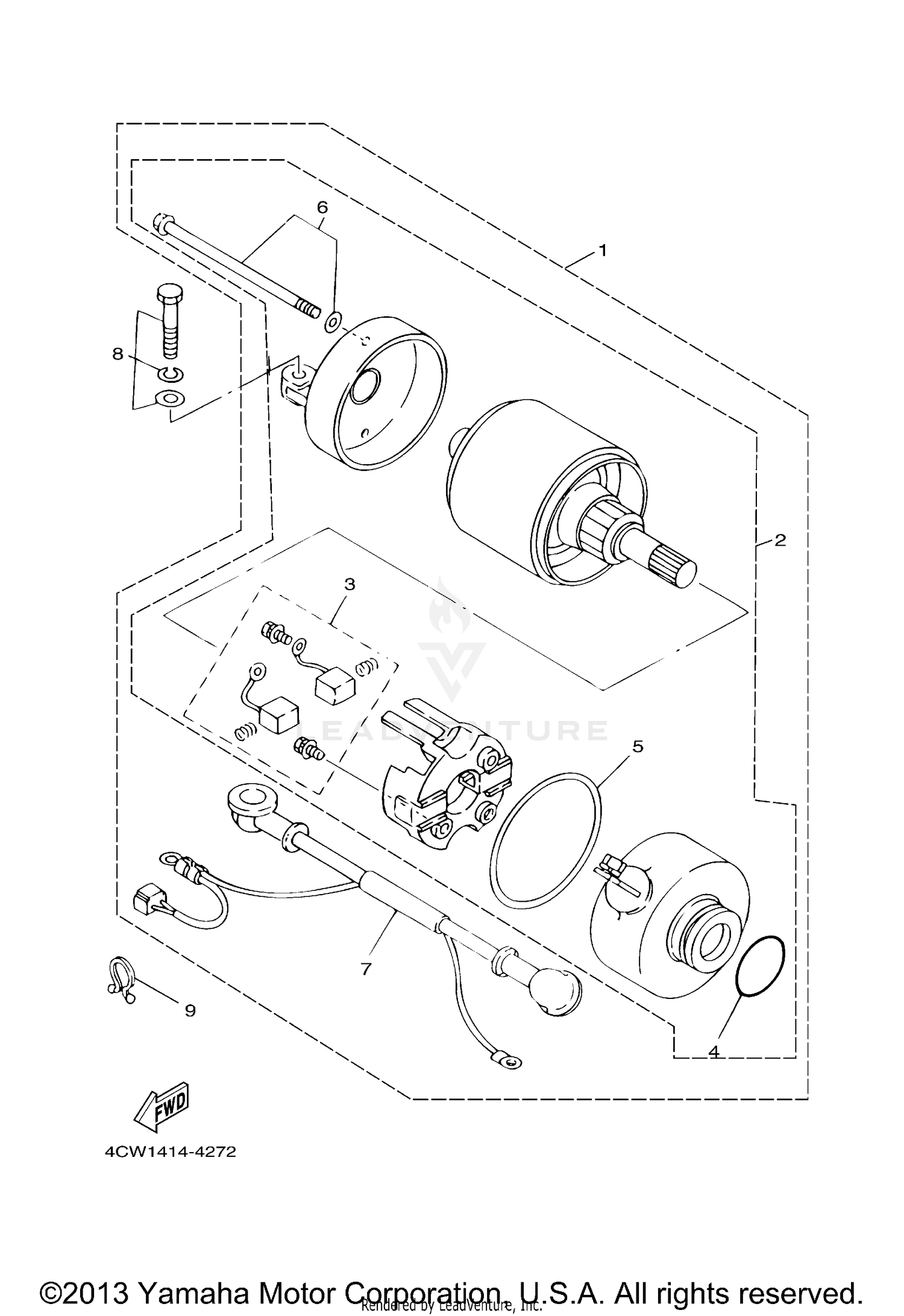

2008 Yamaha VINO 125 STARTING MOTOR OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTING MOTOR ASSY
4TE-H1800-10-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ELECTRIC START KIT
4CW-W8180-00-00
Superseded by 4CW-W8180-10-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRUSH SET
3KW-H1801-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-26668-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
3KW-H1861-00-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT 2
3UH-H1828-01-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CORD COMP.
4TE-H183G-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEX HEAD W/WASHER
97507-06625-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90464-23811-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
