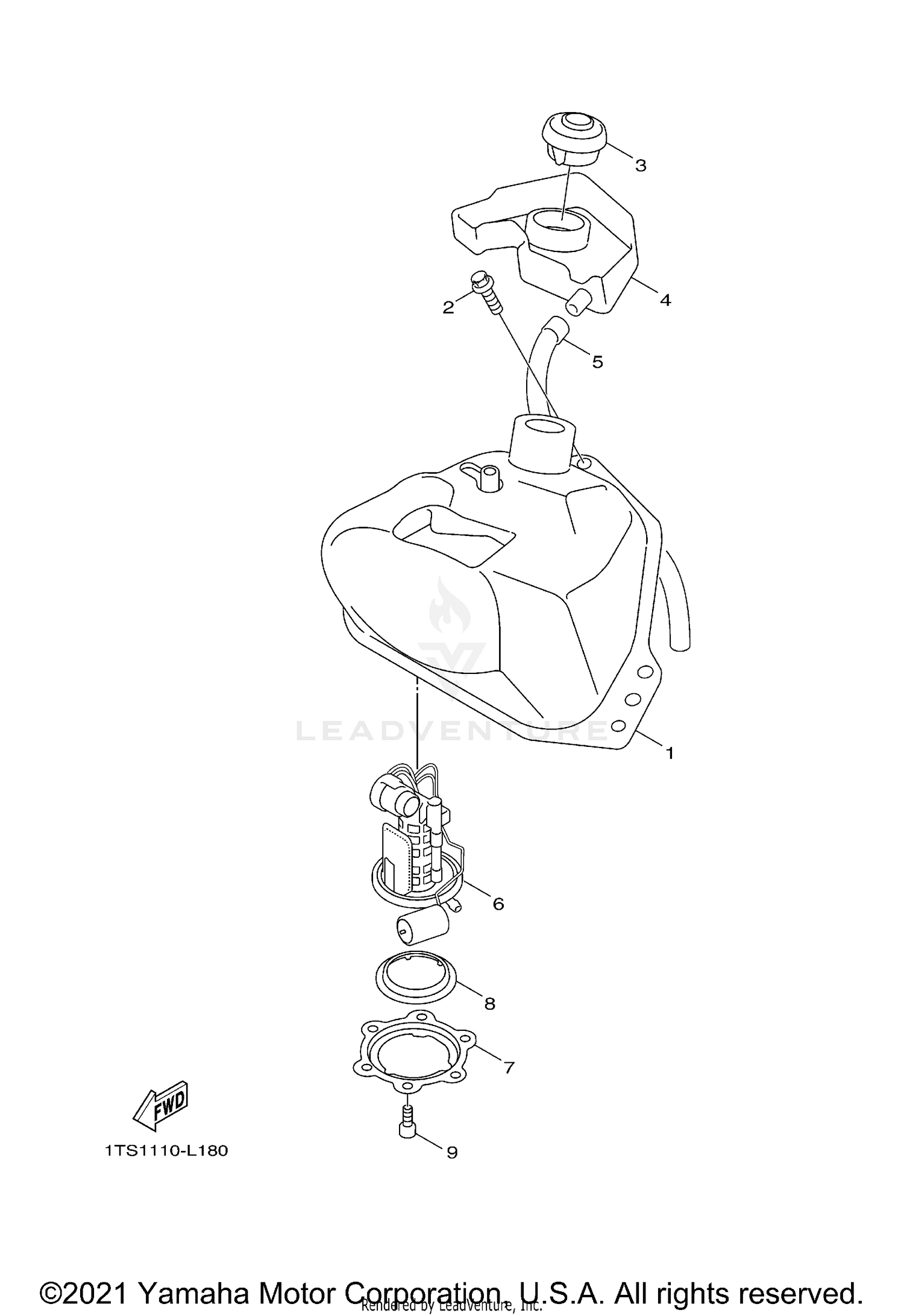

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
13P-F4110-10-33
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95827-06016-00
Superseded by 95817-06016-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP ASSY
5ST-F4602-43-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, FILLER
5ST-F414A-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE, FLEXIBLE VINYL
91A20-12026-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUEL PUMP COMP.
3P3-E3907-10-00
Superseded by 3P3-E3907-12-00
|
$358.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, FUEL PUMP
13P-F4491-01-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
1S4-24486-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX. SOCKET HEAD
91317-05010-00
|
$2.50 | ||
|
Unavailable |
|||
