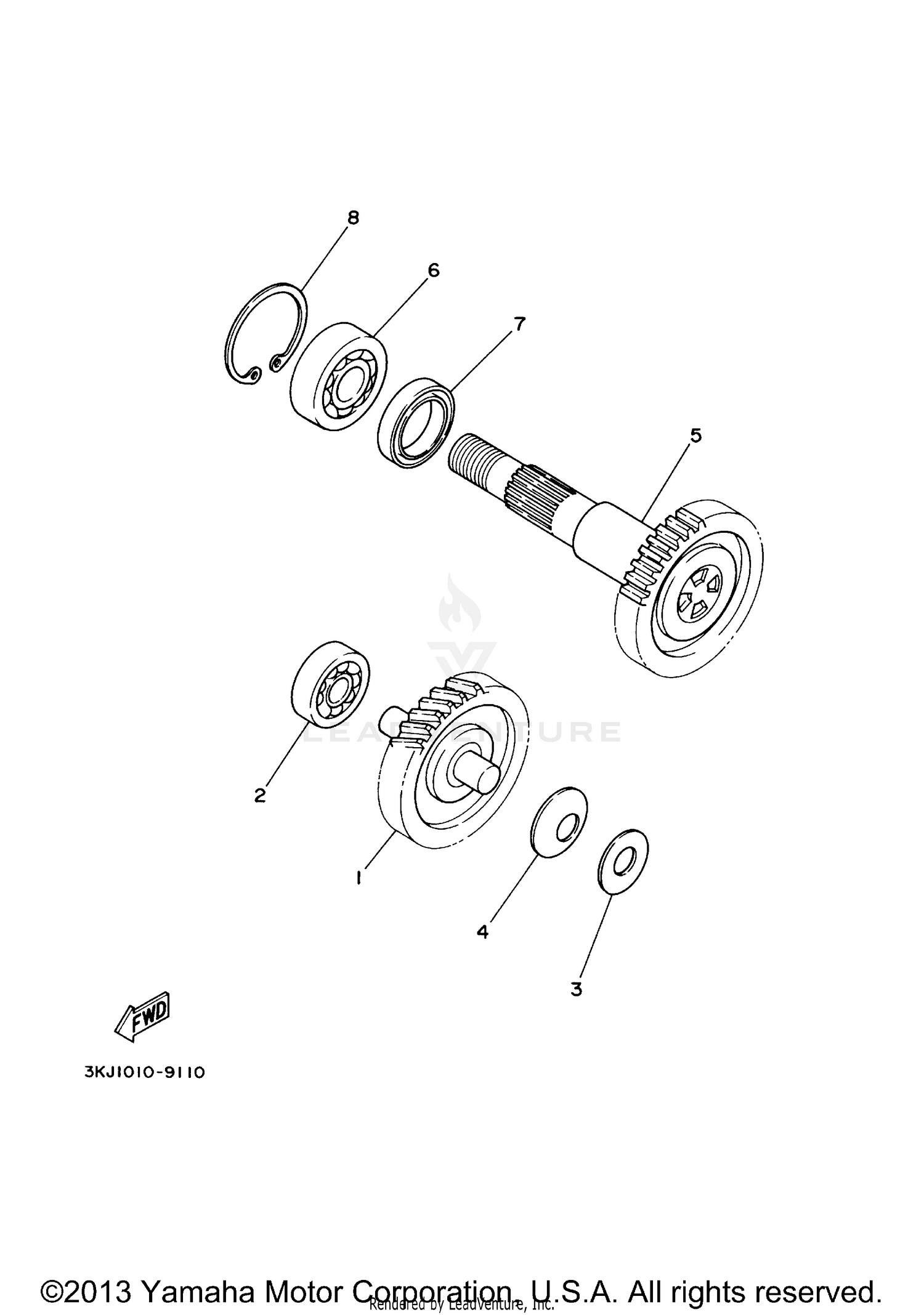

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE COMPLETE (48T/13T)
3RY-17410-10-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-20012-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-123K4-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, CONICAL SPRING
90208-12049-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRIVE AXLE ASSY
4JP-17420-10-00
Superseded by 5SU-E7420-01-00
|
$201.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-20314-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, OIL
93102-22082-00
Superseded by 93102-22314-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
93420-40064-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
