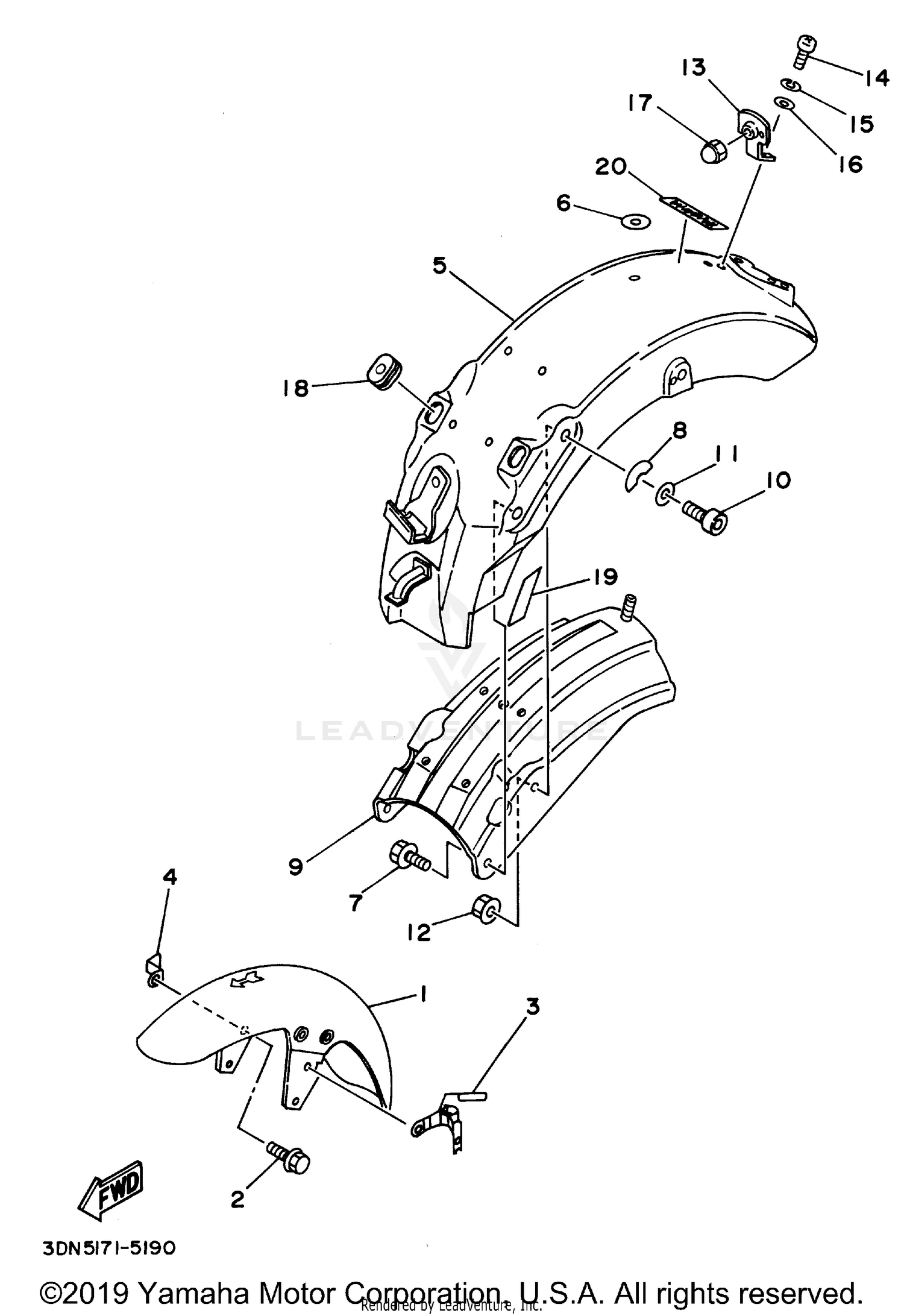

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
2UJ-21510-00-4B
Superseded by 2UJ-21510-01-P6
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE (SMALL HEAD)
95024-08012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, WIRE 1
3DN-21597-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET
3DN-21586-00-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
REAR FENDER COMP.
2UJ-21610-00-4B
Superseded by 2UJ-21610-00-PC
|
$280.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL 2
2UJ-21735-00-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95817-10020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL 4
3DM-2173N-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
REINF. COMP.
2UJ-21670-20-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. SOCKET HEAD
91317-10035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92907-10600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT,SPEC'L SHAPE
90179-10394-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, REFLECTOR
2UJ-21641-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98517-05010-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95307-05800-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
90480-15061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL 3
2UJ-2173M-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
EMBLEM, YAMAHA
99246-00080-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
