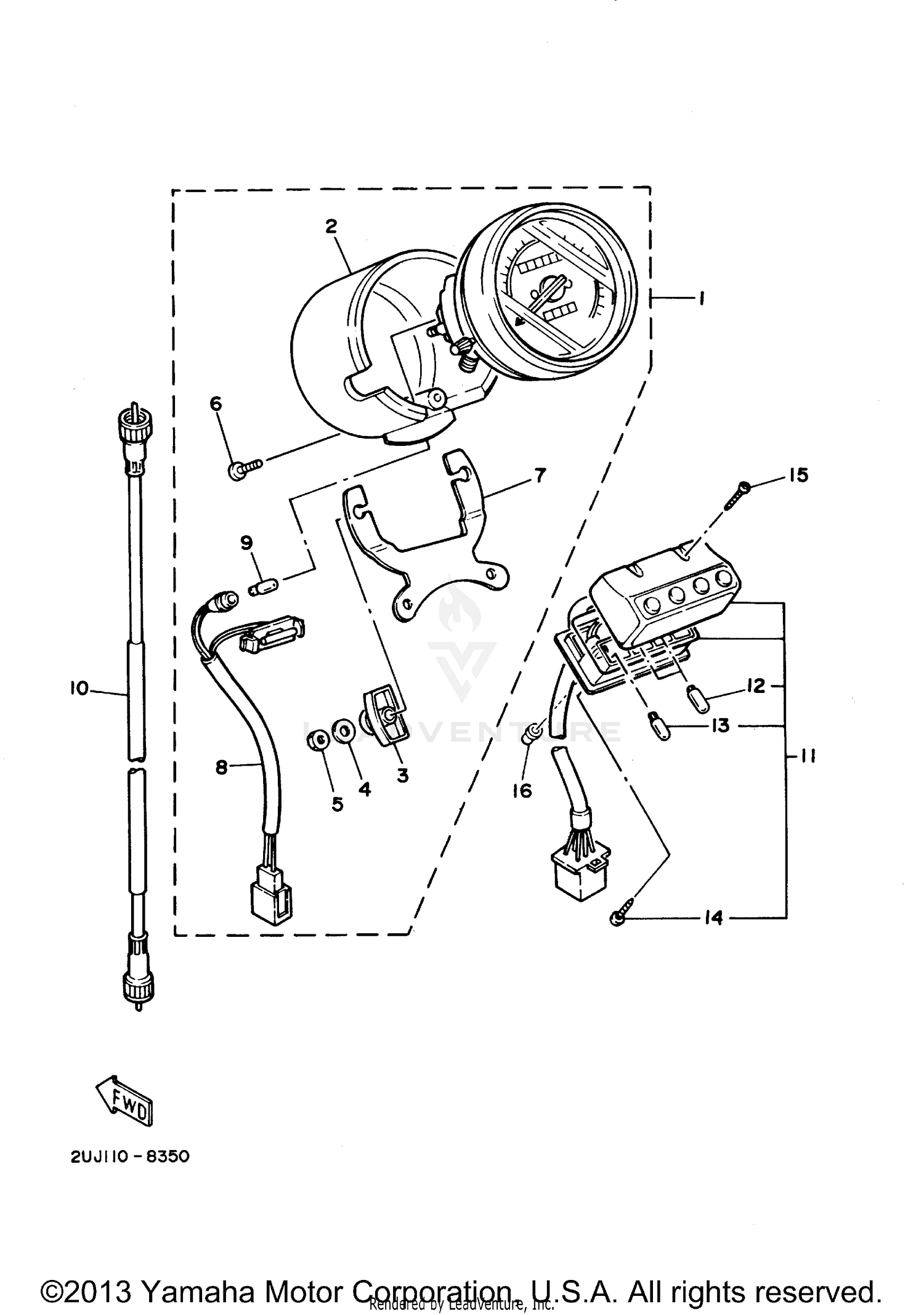

2006 Yamaha VIRAGO 250 METER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSY (MPH)
3LS-83570-11-00
|
$245.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CASE COMP, UNDER
1FK-83507-11-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER
2UJ-83523-00-00
Superseded by 1FG-83523-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92907-05600-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
95307-05600-00
Superseded by 95317-05600-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, TAPPING
90164-04009-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, METER
2UJ-83519-00-00
Superseded by 2GV-83519-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#8
SOCKET CORD ASSEMBLY
2UJ-83509-00-00
Superseded by 2GV-83509-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#9
BULB (12V-3W)
2UJ-83517-00-00
Superseded by 42X-83517-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPEEDOMETER CABLE ASSY
4YH-83550-00-00
Superseded by 4YH-83550-01-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PILOT LIGHT ASSY
2UJ-83530-00-00
Superseded by 5AJ-83530-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BULB (12V-3W)
42X-83517-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#13
BULB (12V-1.7W)
2GV-83517-00-00
Superseded by 3FV-83517-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING
4AS-83616-10-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98507-04035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90179-04579-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
