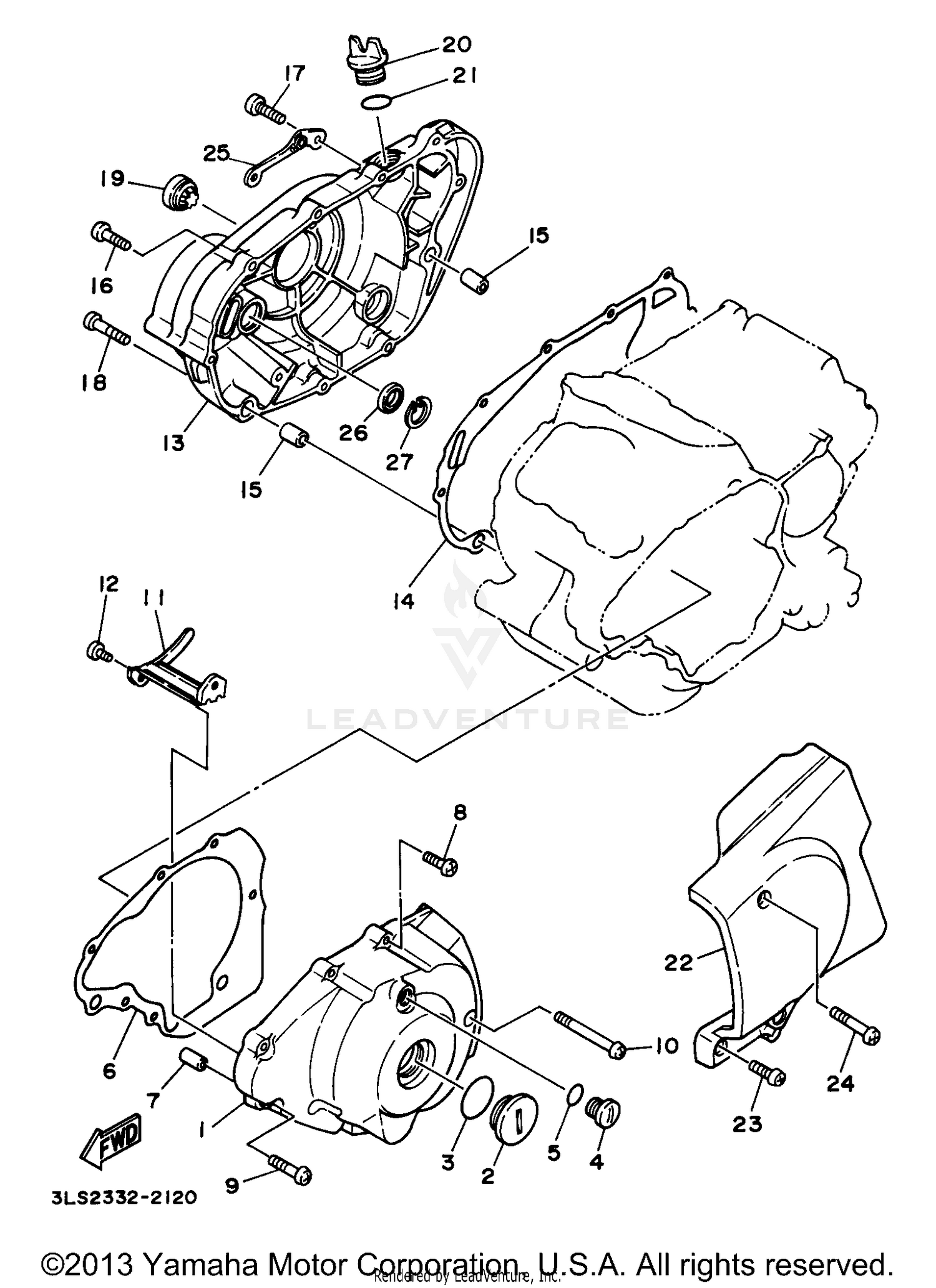

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
2UJ-15411-01-00
|
$267.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG, STRAIGHT SCREW
90340-32116-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-32172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG, STRAIGHT SCREW
90340-14068-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-14369-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CRANKCASE COVER 1
4RF-15451-00-00
Superseded by 4RF-15451-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL
99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98504-06025-00
Superseded by 97885-06025-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98504-06035-00
Superseded by 97885-06035-00
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98504-06070-00
Superseded by 98580-06570-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90465-06322-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98507-06010-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, CRANKCASE 2
2UJ-15421-00-00
|
$346.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, CRANKCASE COVER 2
4RF-15461-00-00
Superseded by 4RF-15461-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, DOWEL
99530-12016-00
|
$4.70 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98504-06025-00
Superseded by 97885-06025-00
|
$4.70 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
90153-06042-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98504-06035-00
Superseded by 97885-06035-00
|
$5.80 | ||
|
Unavailable |
|||
|
#19
GAUGE, LEVEL
3Y1-15361-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG, OIL
3Y1-15363-00-00
Superseded by 3Y1-15363-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-19123-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, CRANKCASE 3
2UJ-15431-01-00
Superseded by 2UJ-15431-02-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98504-06025-00
Superseded by 97885-06025-00
|
$4.70 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN HEAD
98504-06050-00
Superseded by 98580-06550-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, CLUTCH CABLE
2UJ-15441-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93101-14089-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
99009-25500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
