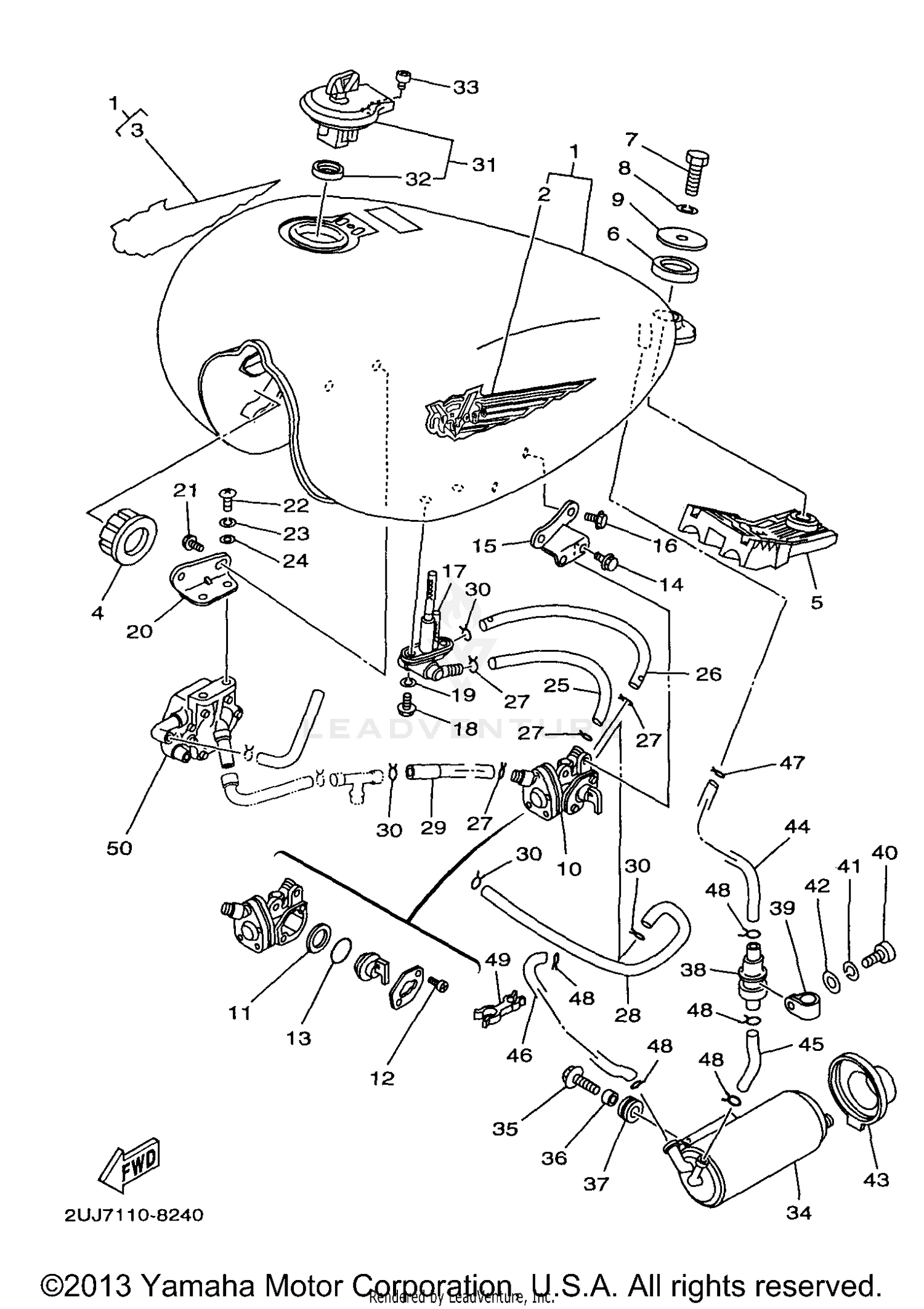

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
3BG-24110-00-X1
Superseded by 3BG-Y2410-02-05
|
$753.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK COMP.
3LS-24110-00-07
Superseded by 3LS-Y2410-T3-08
|
$746.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM 1
3LW-24161-00-00
Superseded by 3LW-24161-20-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
EMBLEM 2
3LW-24162-00-00
Superseded by 3LW-24162-20-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 1
4H7-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, LOCATING 2
2UJ-24182-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 3
42X-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97007-08035-00
Superseded by 97017-08035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92907-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-08569-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUEL COCK ASSY 1
2UJ-24500-00-00
Superseded by 2UJ-24500-10-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE
3H3-24523-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
97801-03008-00
Superseded by 98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, COCK
1JK-24534-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, FUEL COCK
2UJ-24544-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$4.35 | ||
|
Unavailable |
|||
|
#17
FILTER ASSY
2UJ-24560-00-00
Superseded by 2UJ-24560-10-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, FUEL PUMP
2UJ-24491-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$4.35 | ||
|
Unavailable |
|||
|
#22
SCREW,PAN
98507-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE (L400)
90445-11501-00
Superseded by 90445-116K9-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE (L400)
90445-11754-00
Superseded by 90445-116K9-00
|
$22.99 | ||
|
Unavailable |
|||
|
#27
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE 2
2UJ-24312-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIPE 3
2UJ-24313-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#31
CAP ASSY
20K-24602-04-00
Superseded by 20K-24602-10-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CAP ASSY
4X7-24602-04-00
Superseded by 4X7-24602-10-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PACKING, CAP
4X7-24612-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
91317-05010-00
|
$2.40 | ||
|
Unavailable |
|||
|
#34
CANISTER ASSY
3BG-24170-00-00
|
$257.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, WITH WASHER
90119-06118-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR
90387-0602R-00
Superseded by 90387-0600V-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
GROMMET
90480-14323-00
Superseded by 90480-14329-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
ROLL OVER VALVE ASSY
25H-24180-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP
90461-15100-00
Superseded by 90464-15014-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW, PAN HEAD
98507-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPRING
92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#43
COVER, CANISTER
2JU-2419E-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
PIPE 10
3BG-24321-00-00
Superseded by 3BG-24321-01-00
|
$22.99 | ||
|
Unavailable |
|||
|
#45
PIPE 11
3BG-24322-00-00
Superseded by 3BG-24322-01-00
|
$8.99 | ||
|
Unavailable |
|||
|
#46
PIPE 12
3BG-24323-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#47
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#49
CLAMP
90464-16119-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#50
FUEL PUMP ASSY
3DM-13910-00-00
Superseded by 3DM-13910-01-00
|
$272.99 | ||
|
Available to order. Add to View Price |
|||
