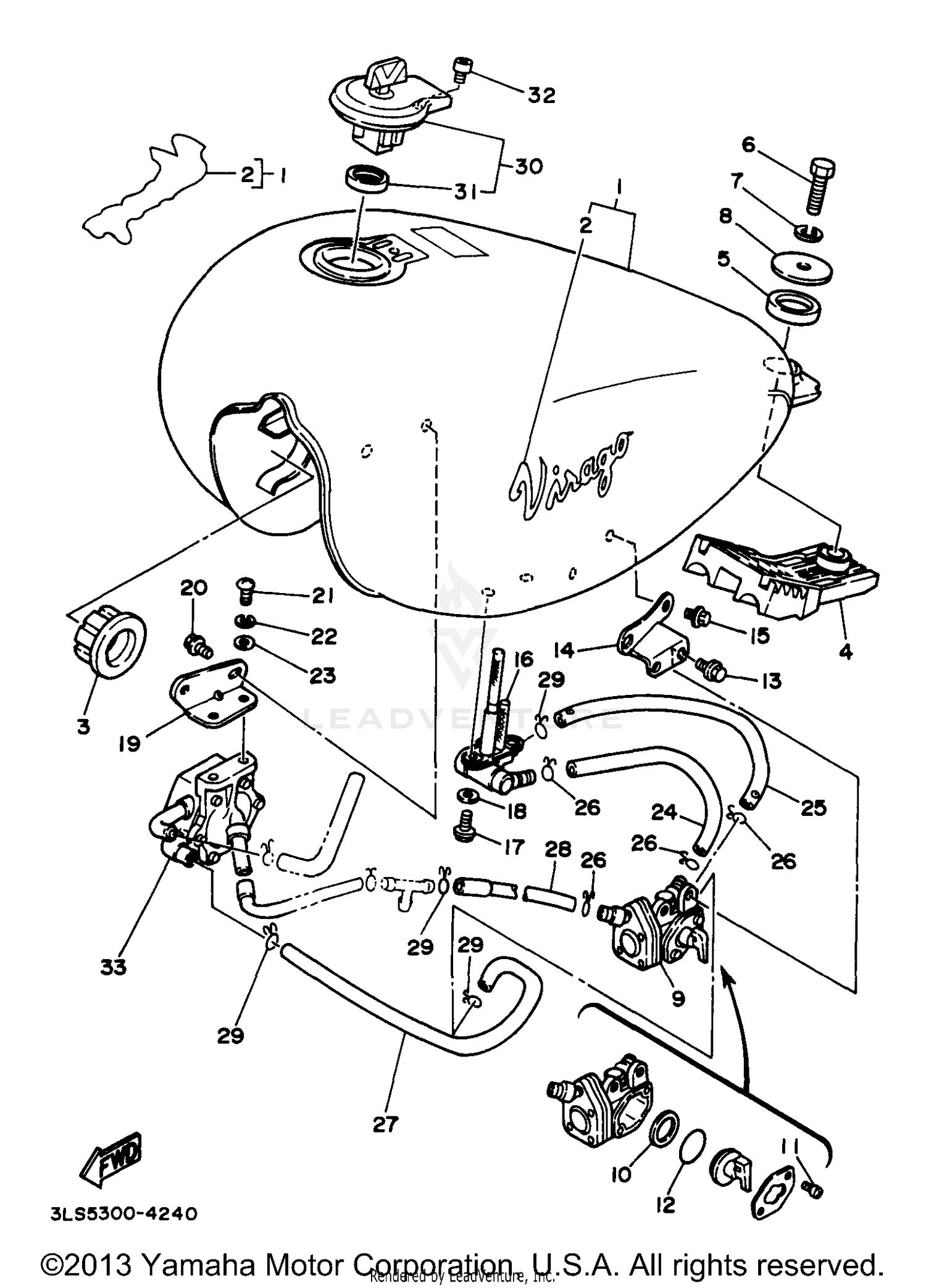

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
2UJ-24110-00-W5
|
$773.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM 1
3LS-24161-40-00
|
$9.49 | ||
|
Unavailable |
|||
|
#3
DAMPER, LOCATING 1
4H7-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 2
2UJ-24182-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, LOCATING 3
42X-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
97027-08035-00
Superseded by 97017-08035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92907-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08569-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUEL COCK ASSY 1
2UJ-24500-00-00
Superseded by 2UJ-24500-10-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE
3H3-24523-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, COCK
1JK-24534-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, FUEL COCK
2UJ-24544-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$4.35 | ||
|
Unavailable |
|||
|
#16
FILTER ASSY
2UJ-24560-00-00
Superseded by 2UJ-24560-10-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, FUEL PUMP
2UJ-24491-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$4.35 | ||
|
Unavailable |
|||
|
#21
SCREW,PAN
98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE (L400)
90445-11501-00
Superseded by 90445-116K9-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE (L400)
90445-11754-00
Superseded by 90445-116K9-00
|
$22.99 | ||
|
Unavailable |
|||
|
#26
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIPE 2
2UJ-24312-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE 3
2UJ-24313-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#30
CAP ASSY
4X7-24602-04-00
Superseded by 4X7-24602-10-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PACKING, CAP
4X7-24612-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
91317-05010-00
|
$2.40 | ||
|
Unavailable |
|||
|
#33
FUEL PUMP ASSY
3DM-13910-00-00
Superseded by 3DM-13910-01-00
|
$272.99 | ||
|
Available to order. Add to View Price |
|||
