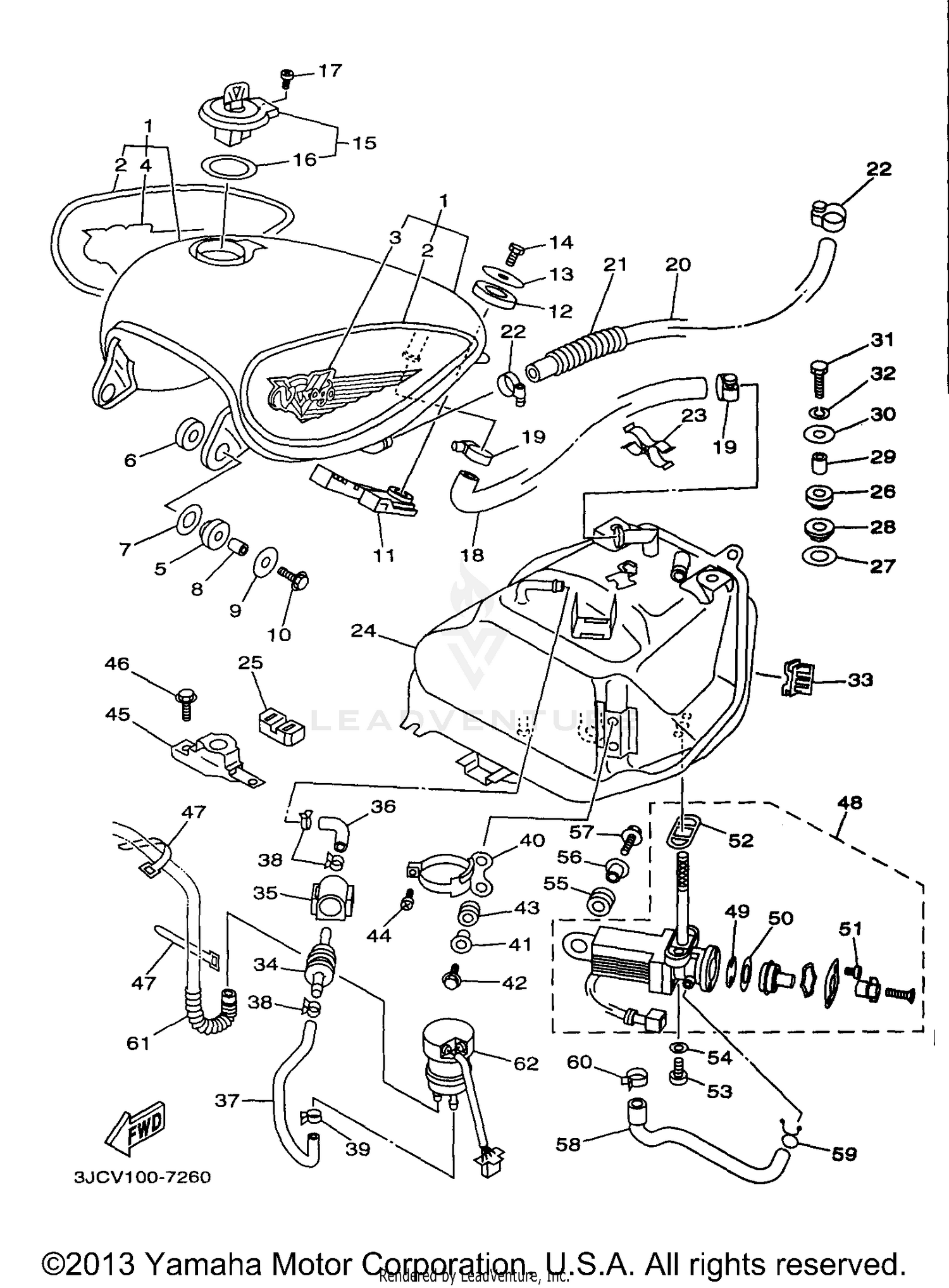

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SUB-TANK ASSY
3JB-Y2428-C1-4B
Superseded by 3BR-Y2428-M0-4B
|
$939.99 | ||
|
Unavailable |
|||
|
#
SUB TANK ASSEMBLY
3JC-Y2428-90-4B
|
$1,191.99 | ||
|
Unavailable |
|||
|
#
SUB-TANK ASSY
3JB-Y2428-M0-5X
Superseded by 3BR-Y2428-B0-2X
|
$836.99 | ||
|
Unavailable |
|||
|
#
SUB-TANK ASSEMBLY
3JC-Y2428-A0-3X
|
$690.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
4KU-24240-40-00
|
$96.65 | ||
|
Unavailable |
|||
|
#
GRAPHIC SET
4KU-24240-20-00
|
$119.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM 1
4KU-24161-20-00
Superseded by 4KU-24161-21-00
|
$39.99 | ||
|
Unavailable |
|||
|
#
EMBLEM 1
4YH-24161-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#4
EMBLEM 2
4KU-24162-20-00
Superseded by 4KU-24162-21-00
|
$39.99 | ||
|
Unavailable |
|||
|
#
EMBLEM 2
4YH-24162-00-00
Superseded by 4YH-24162-01-00
|
$46.99 | ||
|
Unavailable |
|||
|
#5
DAMPER, LOCATING 2
1FK-24182-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 3
23T-24724-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL
1FK-24186-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-06387-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-066M2-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (SMALL HEAD)
95024-06025-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, LOCATING 2
3JB-24182-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#12
DAMPER, LOCATING 3
42X-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-08569-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
97007-08016-00
Superseded by 97017-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP ASSY
20K-24602-03-00
Superseded by 20K-24602-10-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CAP ASSY
4X7-24602-04-00
Superseded by 4X7-24602-10-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PACKING, CAP
4X7-24612-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
91317-05010-00
|
$2.40 | ||
|
Unavailable |
|||
|
#18
PIPE 6
3JB-24316-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE CLAMP ASSY
90450-25037-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE 7
3JB-24317-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, COMPRESSION
90501-101J4-00
|
$20.99 | ||
|
Unavailable |
|||
|
#22
HOSE CLAMP ASSY
90450-22052-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Unavailable |
|||
|
#23
CLAMP 1
3JB-24135-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#24
FUEL TANK COMP.
3JB-24110-01-33
|
$285.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FUEL TANK COMP.
3JC-24110-00-33
|
$572.99 | ||
|
Unavailable |
|||
|
#25
DAMPER, LOCATING 1
2GV-24181-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#26
DAMPER, LOCATING 2
1FK-24182-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#27
DAMPER, LOCATING 3
23T-24724-01-00
|
$6.49 | ||
|
Unavailable |
|||
|
#28
WASHER, SPECIAL
1FK-24186-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#29
COLLAR
90387-06387-00
|
$6.99 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
90201-065G8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT,HEXAGON
97027-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#33
DAMPER, LOCATING 4
2GV-24184-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#34
FILTER ASSY
1FK-24560-00-00
Superseded by 1FK-24560-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRACKET, FILTER
1FK-24566-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIPE, FUEL 1
2GV-24311-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIPE 2
2GV-24312-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP
90467-11044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP
90467-10135-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BRACKET, FUEL PUMP
2GV-24491-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#41
COLLAR
90387-062L2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
95807-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#43
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
SCREW, PAN HEAD
98507-05016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#45
BRACKET, FUEL TANK 1
2GV-24191-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#46
BOLT, WITH WASHER
90119-06123-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#48
FUEL COCK ASSEMBLY 1
3JB-24500-02-00
Superseded by 3JB-24500-03-00
|
$210.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
SCREW, PAN HEAD
98517-03008-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#52
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
SCREW, SPECIAL SHAPE
90149-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#55
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT, FLANGE
95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
PIPE 4
3JB-24314-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
CLIP
90467-11044-00
|
$7.49 | ||
|
Unavailable |
|||
|
#61
SPRING, COMPRESSION
90501-100F8-00
|
$8.99 | ||
|
Unavailable |
|||
|
#62
FUEL PUMP COMP.
1HX-13907-00-00
Superseded by 1HX-13907-01-00
|
$282.99 | ||
|
Unavailable |
|||
