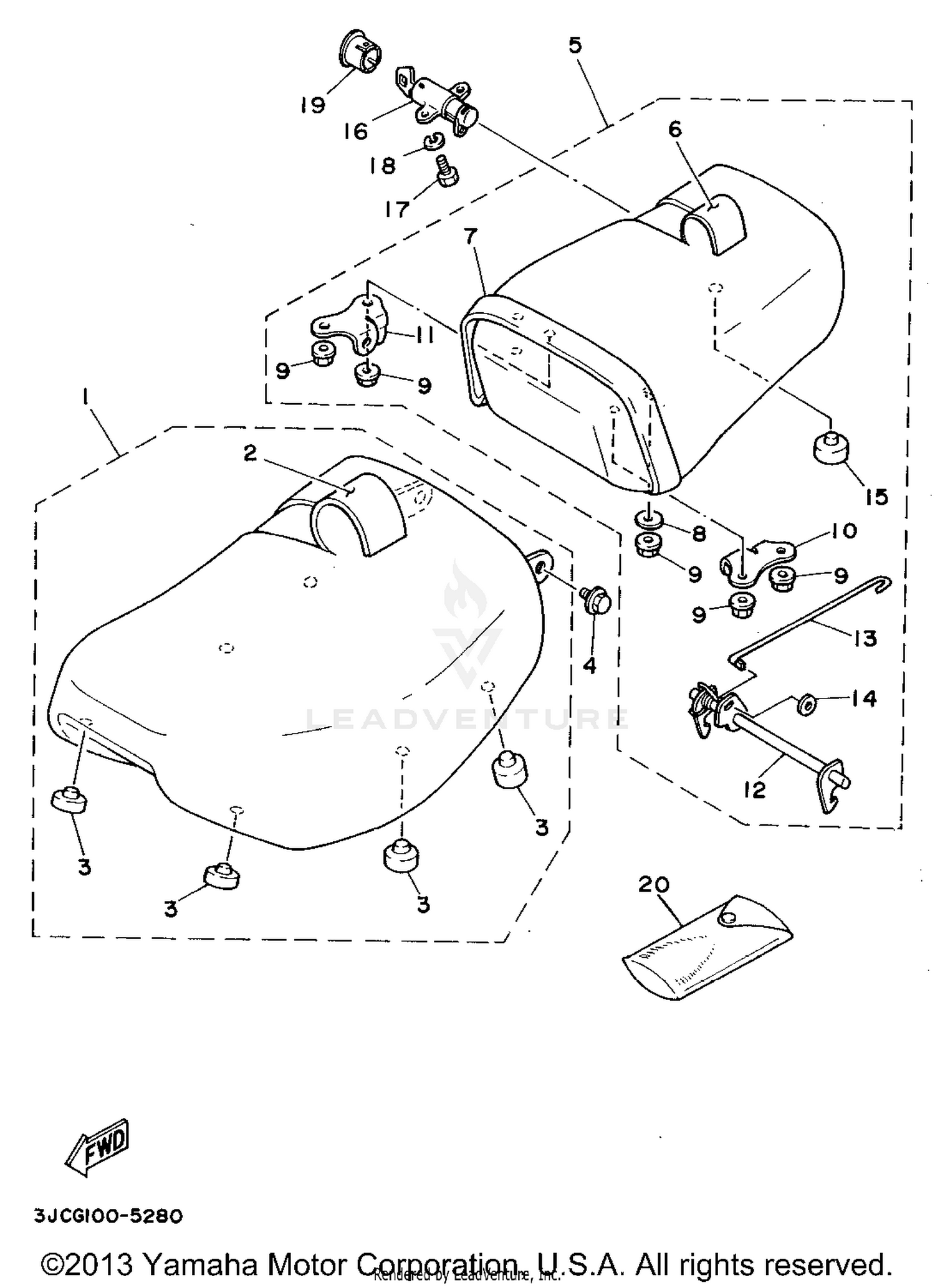

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSEMBLY
3JB-24710-00-00
|
$265.66 | ||
|
Unavailable |
|||
|
#
SINGLE SEAT ASSEMBLY
3JB-24710-10-00
|
$266.99 | ||
|
Unavailable |
|||
|
#2
COVER, SINGLE SEAT
3JB-24711-10-00
|
$254.99 | ||
|
Unavailable |
|||
|
#
COVER, SINGLE SEAT
3JB-24711-00-00
|
$135.99 | ||
|
Unavailable |
|||
|
#3
DAMPER, SEAT
18A-24724-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95807-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
TANDEM SEAT ASSEMBLY
3JB-24750-00-00
|
$216.99 | ||
|
Unavailable |
|||
|
#
TANDEM SEAT ASSEMBLY
3JB-24750-10-00
|
$215.91 | ||
|
Unavailable |
|||
|
#6
COVER, TANDEM SEAT
3JB-24751-10-00
|
$162.99 | ||
|
Unavailable |
|||
|
#
COVER, TANDEM SEAT
3JB-24751-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#7
BAND, SEAT
3JB-24754-00-00
Superseded by 3JB-24734-00-00
|
$109.99 | ||
|
Unavailable |
|||
|
#8
WASHER PLAIN
90201-06765-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, SEAT
3JB-24718-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#11
BRACKET, SEAT
3JB-24728-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#12
LEVER, SEAT
3JB-24776-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#13
ROD, CONNECTING
3JB-2478F-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#14
WASHER
92907-03200-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, SEAT
18A-24724-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#16
SEAT LOCK ASSEMBLY
51X-24705-00-00
Superseded by 47X-24705-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
97007-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER
51Y-24796-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#20
TOOL KIT
2GV-28100-00-00
|
$99.99 | ||
|
Unavailable |
|||
