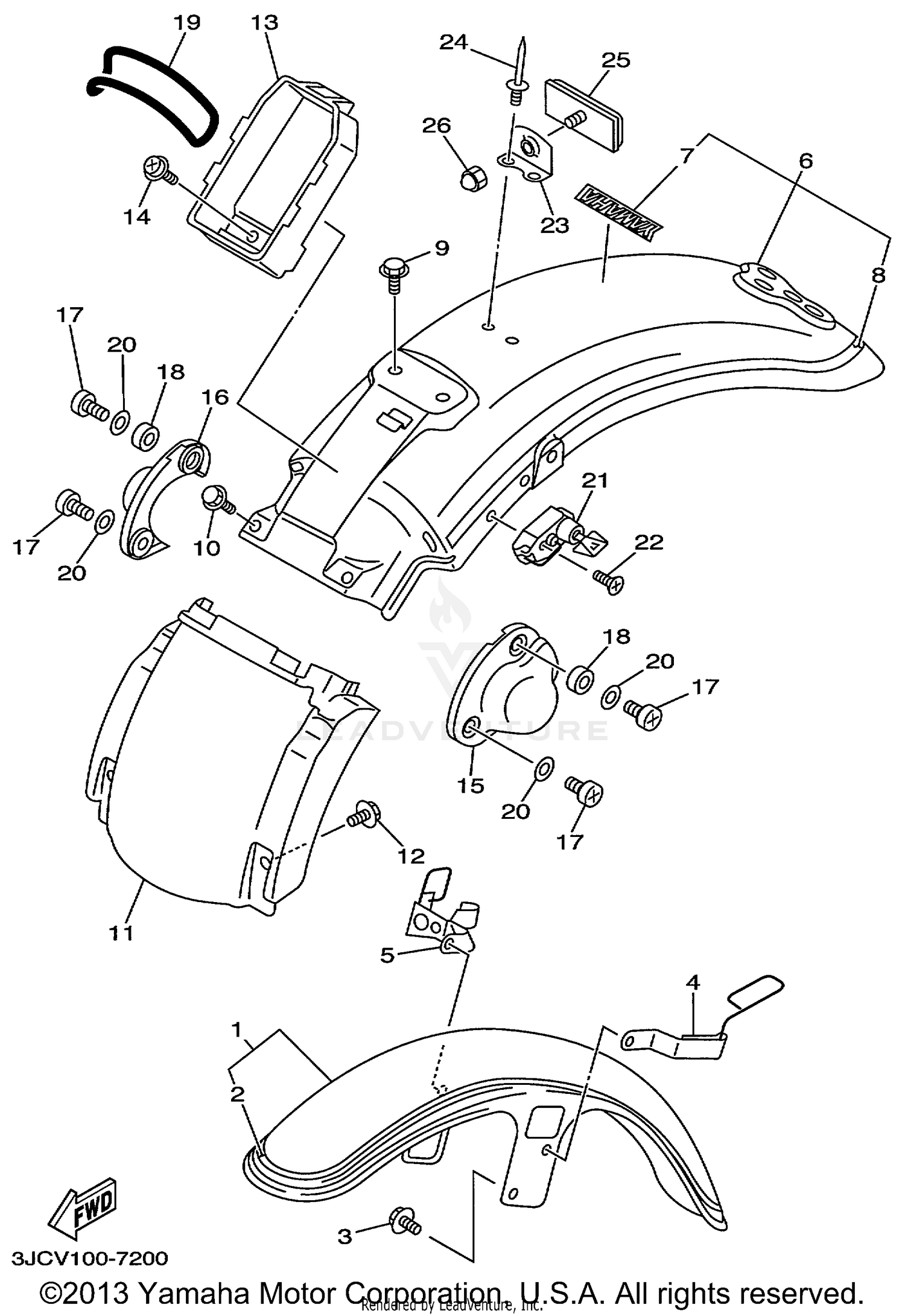

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER ASSEMBLY
2GV-Y2150-81-4B
|
$330.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET, FRONT FENDER
4KU-21570-40-00
|
$90.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
95027-08012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, WIRE 1
2GV-21597-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#5
HOLDER, WIRE 2
4FT-21598-00-00
|
$91.75 | ||
|
Unavailable |
|||
|
#6
REAR FENDER C0MP.
3JB-Y2161-80-4B
|
$350.99 | ||
|
Unavailable |
|||
|
#7
EMBLEM, YAMAHA
99237-00080-00
Superseded by 99247-00080-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GRAPHIC SET, REAR FENDER
4KU-2165A-40-00
|
$60.99 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
95807-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,FLANGE
95807-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUARD, MUD
2GV-21629-00-4B
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-06123-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOX
2GV-2160E-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#14
SCREW, WITH WASHER
90159-06059-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, REAR FENDER 1
2GV-2163A-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, REAR FENDER 2
2GV-2163E-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, BIND
98904-08014-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER
90560-08326-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-71360-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN
92903-08200-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
HELMET HANGER ASSY
4R8-21308-00-00
Superseded by 26H-21308-01-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
90149-06154-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, REFLECTOR
3JB-21641-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#24
RIVET, BLIND (4.8X12.4 BLACK)
90267-48104-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
95307-05800-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
