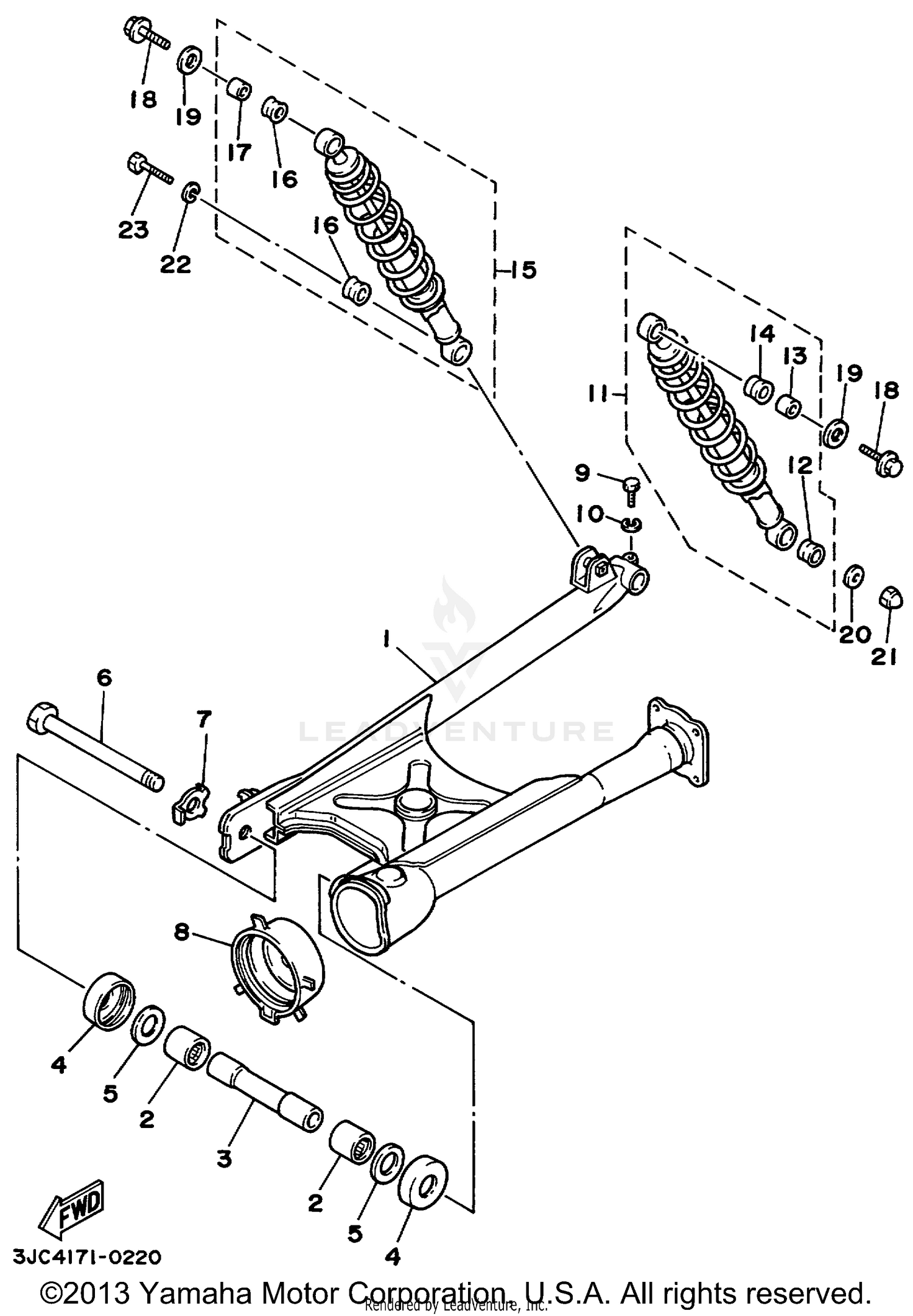

Rear Arm Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
2GV-22110-00-35
|
$542.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93320-32403-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH 2
4X7-22124-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, THRUST 2
4X7-22129-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
90201-244A8-00
Superseded by 3YF-22149-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, PIVOT
4X7-22141-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#7
WASHER, LOCK
90215-16181-00
|
$6.49 | ||
|
Unavailable |
|||
|
#8
BOOT, RUBBER
22U-22189-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#9
BOLT
97004-08035-00
Superseded by 97024-08035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92904-08100-00
Superseded by 92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHOCK ABSORBER ASSEMBLY, REAR
2YL-22210-01-00
|
$181.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH, REAR SHOCK ABSORBER
2GV-22216-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, DISTANCE
2GV-22253-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#14
BUSH,RR SHOCK ABS
2GV-22226-00-00
Superseded by 4KG-22216-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHOCK ABSORBER ASSEMBLY, REAR
2YL-22220-01-00
|
$203.99 | ||
|
Unavailable |
|||
|
#16
BUSH,RR SHOCK ABS
2GV-22226-00-00
Superseded by 4KG-22216-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#17
COLLAR, DISTANCE
5M0-22253-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95807-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-105R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, CROWN
90176-10073-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92903-10100-00
Superseded by 92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90106-10052-00
|
$8.49 | ||
|
Unavailable |
|||
