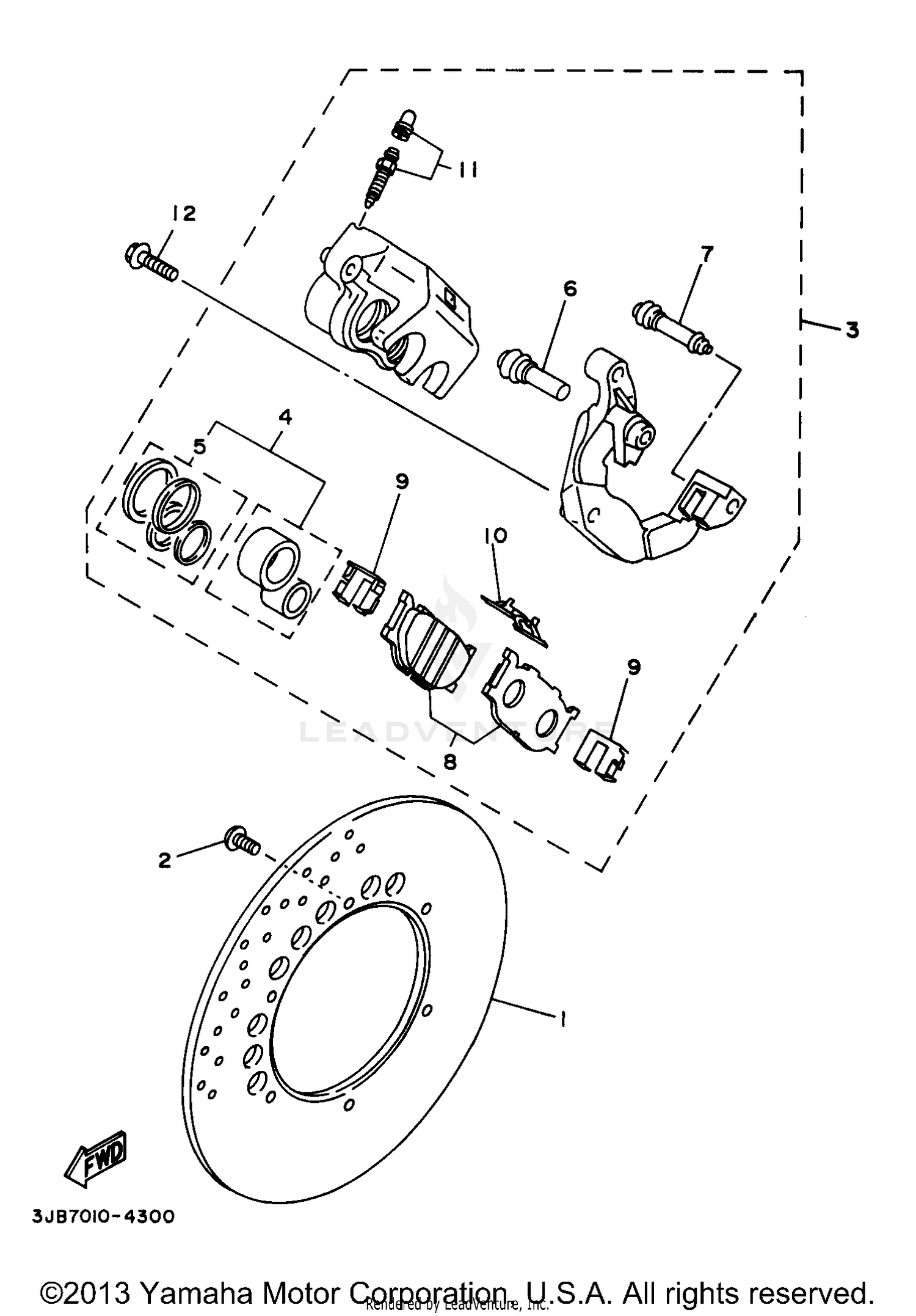

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE (RIGHT)
3JB-2582U-01-00
|
$431.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,HEX. SOCKET BUT
90109-081F0-00
Superseded by 90111-08053-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSEMBLY (RIGHT)
3JB-2580U-11-00
|
$350.99 | ||
|
Unavailable |
|||
|
#4
PISTON ASSY, CALIPER
3JB-W0057-00-00
Superseded by 3JB-25802-00-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
3JB-W0047-00-00
Superseded by 3JB-25803-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT 2
5R2-25937-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT 2
3YX-25937-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT
4BP-W0045-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SUPPORT, PAD
3YX-25919-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, ANTI RATTLE
3YX-25929-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-10638-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
