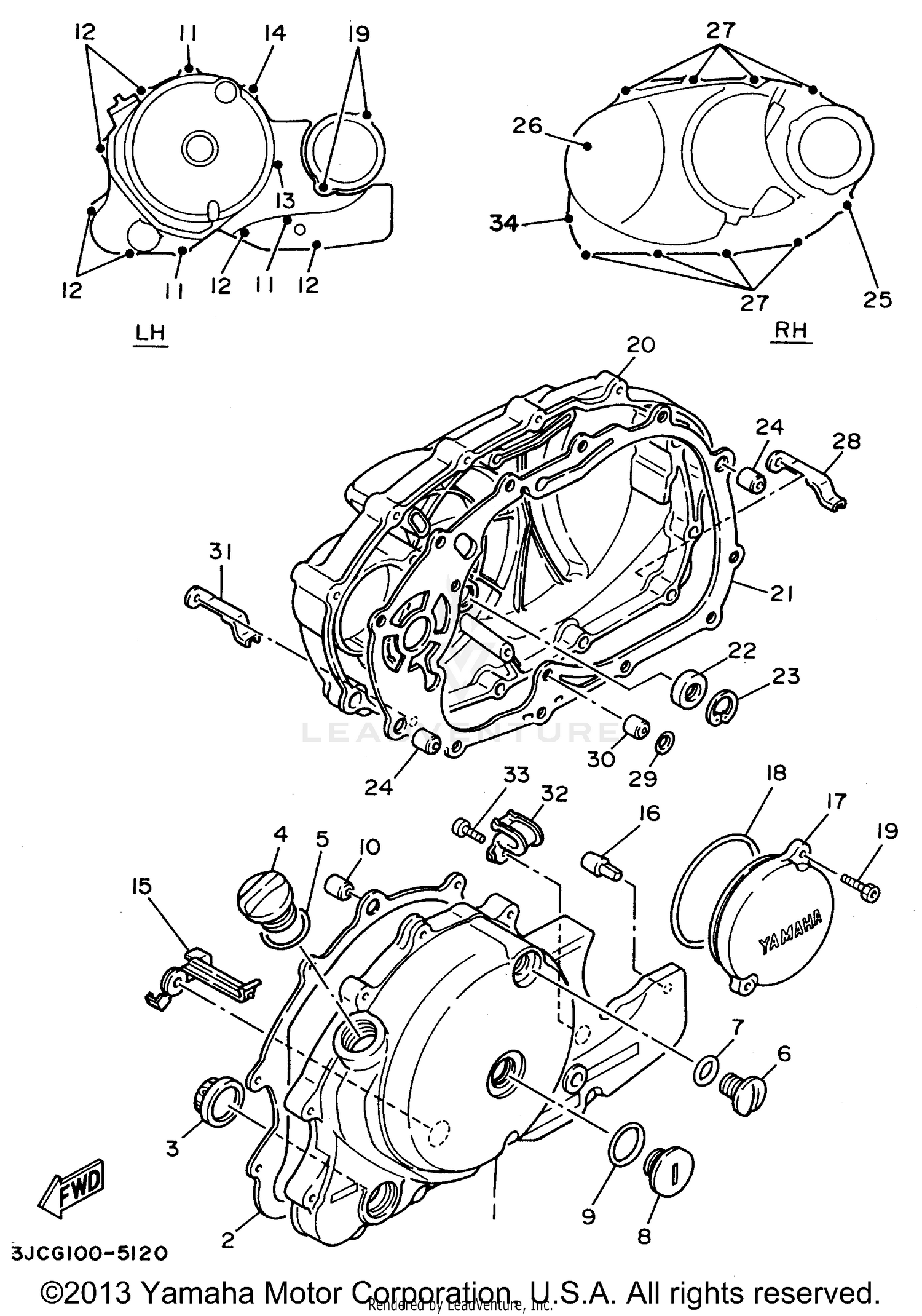

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
3JB-15411-00-00
Superseded by 3JB-15411-01-00
|
$284.99 | ||
|
Unavailable |
|||
|
#
COVER, CRANKCASE 1
2NT-15411-01-00
Superseded by 2NT-15411-02-00
|
$314.99 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE COVER 1
3BT-15451-00-00
Superseded by 4VR-15451-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GAUGE, LEVEL
2H7-15361-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG, OIL LEVEL
3F9-15362-00-00
Superseded by BAT-15362-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#5
O-RING
93210-27778-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG, STRAIGHT SCREW
90340-14139-00
Superseded by 90340-14068-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLUG, STRAIGHT SCREW
90340-14068-00
|
$17.99 | ||
|
Unavailable |
|||
|
#7
O-RING
93210-14369-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, STRAIGHT SCREW
90340-32140-00
Superseded by 90340-32116-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PLUG, STRAIGHT SCREW
90340-32088-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-32172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
91314-06040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91314-06055-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91314-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP 2
3BT-15484-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, ENGINE MOUNT 1
2GV-15316-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#17
COVER, GENERATOR
3JB-15415-00-00
|
$115.99 | ||
|
Unavailable |
|||
|
#
COVER, GENERATOR
2NT-15415-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#18
O-RING
93210-74316-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SOCKET
91314-06018-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, CRANKCASE 2
3JB-15421-00-00
|
$398.81 | ||
|
Unavailable |
|||
|
#
COVER, CRANKCASE 2
2NT-15421-00-00
|
$403.99 | ||
|
Unavailable |
|||
|
#21
GASKET, CRANKCASE COVER 2
3BT-15461-00-00
Superseded by 4VR-15461-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93101-14089-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
99009-25500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, DOWEL
99530-10020-00
Superseded by 99530-10120-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
91314-06040-00
|
$7.49 | ||
|
Unavailable |
|||
|
#26
BOLT, HEXAGON SOCKET HEAD
91314-06055-00
|
$7.49 | ||
|
Unavailable |
|||
|
#27
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
CLAMP
90462-10115-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, DOWEL
91815-16017-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLAMP
90462-10118-00
|
$5.49 | ||
|
Unavailable |
|||
|
#32
CLAMP
90462-06119-00
|
$5.99 | ||
|
Unavailable |
|||
|
#33
SCREW, PAN HEAD
98507-06010-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
91380-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
