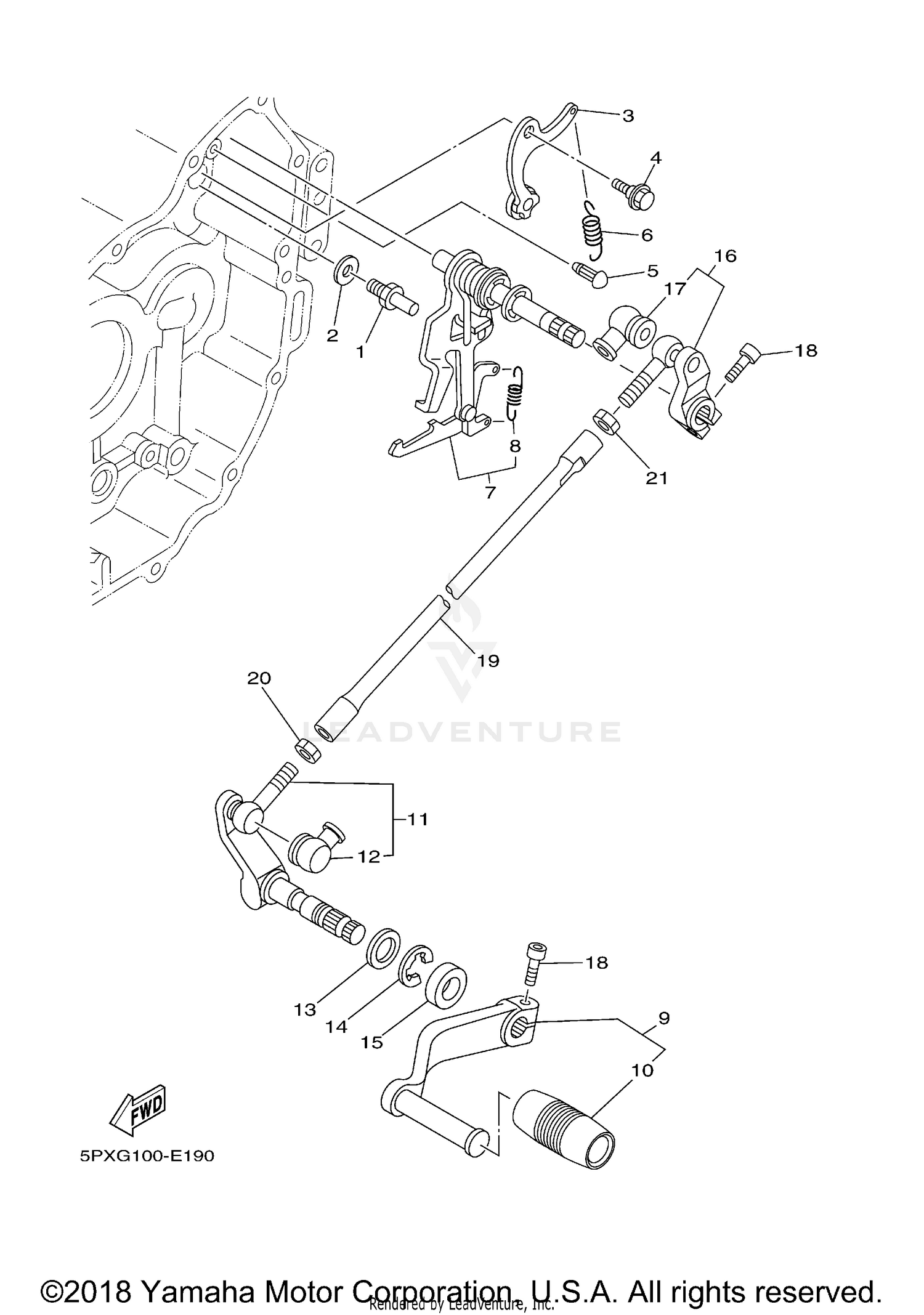

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT
90109-08049-00
Superseded by 90109-08441-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE
90201-08085-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER LEVER ASSY
26H-18140-02-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90109-06036-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOOK, SPRING
132-16346-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, TENSION
90506-18007-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIFT SHAFT ASSY
4WM-18101-01-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90506-08227-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIFT PEDAL ASSY
5PX-18110-30-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, SHIFT PEDAL
5VN-18113-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
KNOB, SHIFTER
5PX-18164-10-00
|
$152.88 | ||
|
Unavailable |
|||
|
#12
COVER, DUST
2H9-18154-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-144J2-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
99001-12600-00
|
$5.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, DUST
5PX-18154-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIFT LEVER ASSY
5VN-18150-10-00
|
$162.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, DUST
2H9-18154-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, SHIFT
5PX-18115-10-00
|
$56.99 | ||
|
Unavailable |
|||
|
#20
NUT
95304-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
95380-08700-00
|
$3.25 | ||
|
Unavailable |
|||
