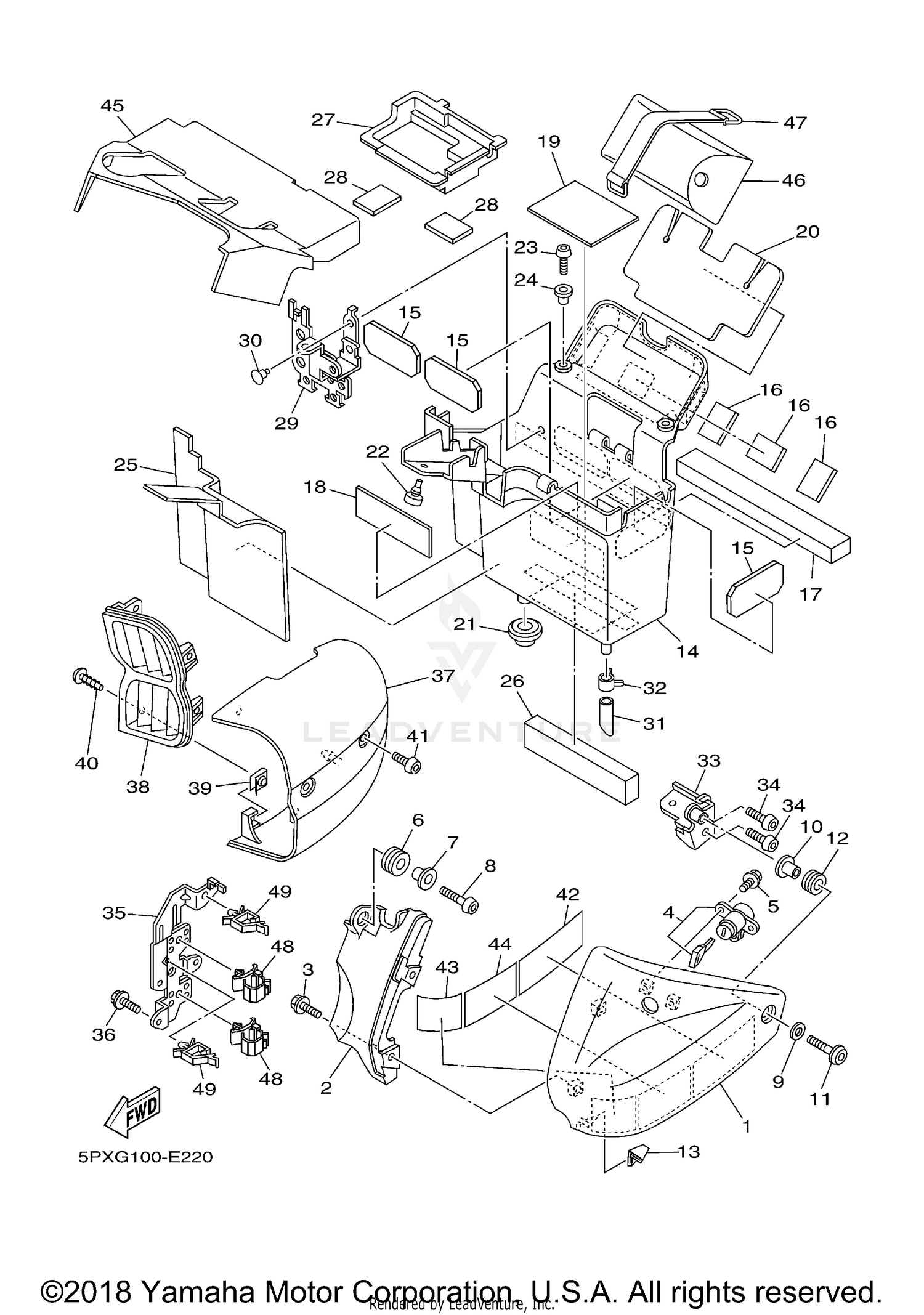

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
5PX-21711-00-P0
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER 9
5PX-2117X-00-P0
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-06020-00
Superseded by 95817-06014-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT LOCK ASSY
5PX-W2470-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-14323-00
Superseded by 90480-14329-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-066Y6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, BUTTON HEAD
92014-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06M01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-06638-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
90149-06023-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-12067-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUIDE
5PX-2171H-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOX, BATTERY
5PX-2177G-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PROTECTOR
5PX-21652-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER
5JW-2139X-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER
5PX-21747-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, LOCATING 1
5PX-21778-00-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER, LOCATING 2
5PX-21779-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER
5PX-2174Y-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-20384-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER, SEAT
35T-24724-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEX. SOCKET BUTTON
92017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-07717-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL 1
5PX-21732-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER
5PX-2174X-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, BATTERY
5PX-82129-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER
5JW-2139X-00-00
|
$2.25 | ||
|
Unavailable |
|||
|
#29
BRACKET 1
5PX-2172K-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
RIVET
90269-07077-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE
90445-11027-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BRACKET 1
5PX-2175T-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, HEX. SOCKET BUTTON
92017-06016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#35
STAY, SIDE COVER 2
5PX-2174E-00-00
Superseded by 5PX-2174E-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#37
COVER, SIDE 3
5PX-21731-10-00
|
$290.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
GRILL, AIR INTAKE 1
5PX-2837N-10-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, SPRING
90183-05042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW
90149-06302-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
PLATE, EPA (CALIFORNIA)
5PX-2176P-60-00
|
$14.49 | ||
|
Unavailable |
|||
|
#42
PLATE, EPA (NON CALIFORNIA)
5PX-2179W-60-00
|
$2.95 | ||
|
Unavailable |
|||
|
#43
PLATE, ROUTING 2
5PX-21686-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
PLATE, ROUTING
4YN-21684-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#45
COVER
5PX-24796-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
TOOL KIT
5PX-28100-10-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLAMP
90464-20002-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLAMP
90464-16021-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
