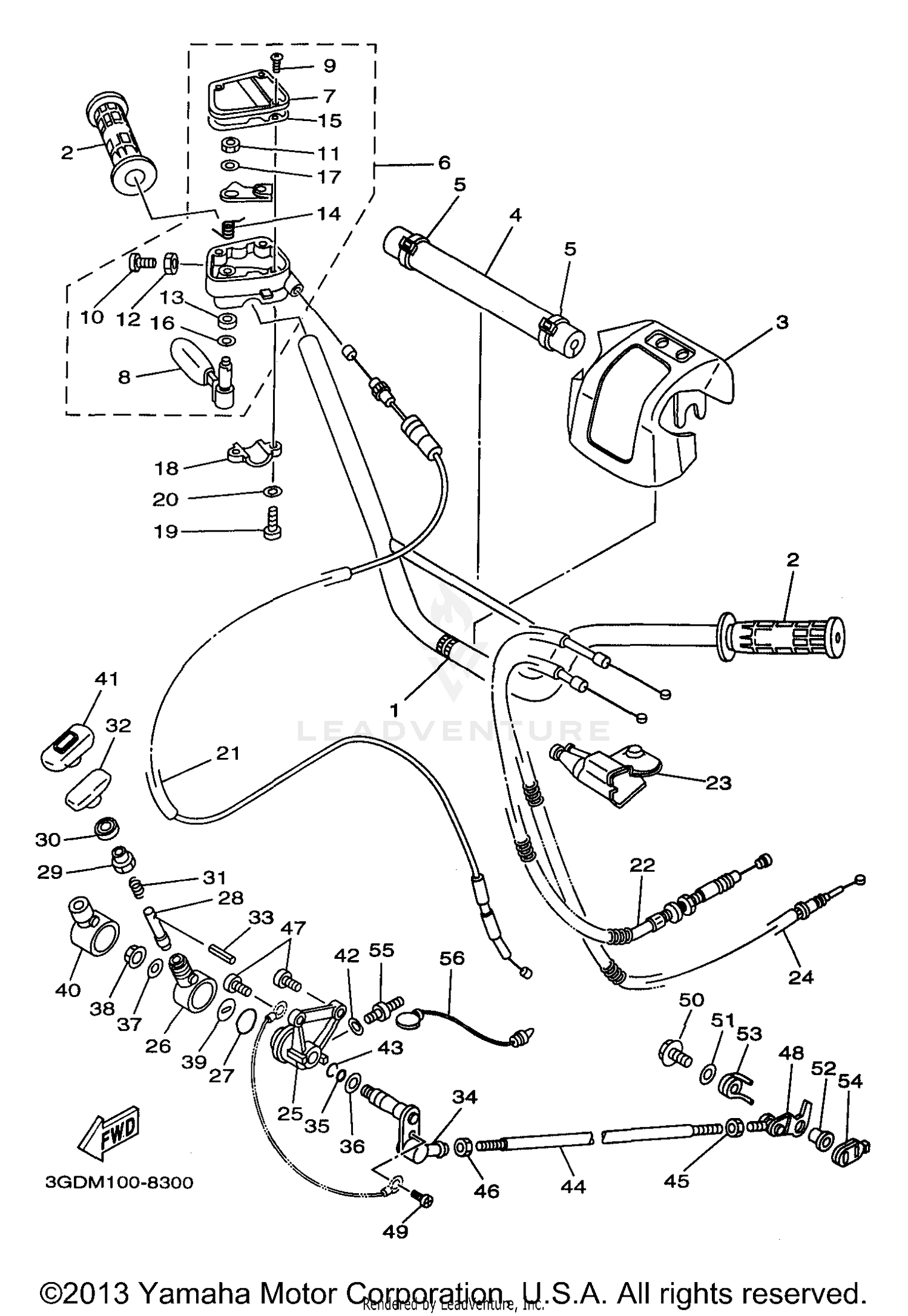

1998 Yamaha WARRIOR STEERING HANDLE CABLE OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
1UY-26111-01-00
|
$60.99 | ||
|
Unavailable |
|||
|
#2
GRIP
3GB-26241-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR, HANDLEBAR
3GD-26124-00-00
Superseded by 3GD-26124-01-00
|
$60.99 | ||
|
Unavailable |
|||
|
#4
PROTECTOR 1
3GD-2622K-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#5
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
THROTTLE LEVER ASSY
1NV-26250-01-00
|
$180.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, GEAR
1NV-2628F-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, THROTTLE
1NV-2625G-01-00
Superseded by 1NV-2625G-02-00
|
$55.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98507-05012-00
Superseded by 98517-05012-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98507-05020-00
Superseded by 98517-05020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
95307-05700-00
Superseded by 95317-05700-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93104-09025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING
1NV-26304-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
1NV-2628G-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
1NV-26129-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPECIAL
1NV-26398-00-00
Superseded by 53L-83909-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#18
HOLDER, LEVER LOWER 1
4V4-82913-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98507-05020-00
Superseded by 98517-05020-00
|
$3.90 | ||
|
Unavailable |
|||
|
#20
WASHER, SPRING
92907-05100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CABLE, THROTTLE 1
3GD-26311-00-00
Superseded by 3GD-26311-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CABLE, CLUTCH
1UY-26335-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, HANDLE LEVER 2
1UY-2637A-01-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WIRE, BRAKE 1
1UY-26341-01-00
Superseded by 1UY-26341-10-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BODY, REVERSE LEVER
2XK-26151-10-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
LEVER, REVERSE
1UY-26152-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-29147-00
Superseded by 93210-29196-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
STOPPER, LEVER
2XK-26154-00-00
|
$51.57 | ||
|
Unavailable |
|||
|
#29
COVER, SHIFT SPRING
1UY-26161-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#30
OIL SEAL
93109-08050-00
Superseded by 93109-08803-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, COMPRESSION
90501-102E5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
LEVER, LOCK
1UY-26157-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, SPRING
91609-40016-00
Superseded by 91690-40016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SHAFT, LINK
2XK-26162-10-00
Superseded by 5YT-26162-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#35
O-RING
93210-10096-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90202-14037-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
90201-064J1-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#39
PLATE, SIDE 1
1UY-26158-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
COVER, HANDLE LEVER 1
1UY-26372-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
GRIP, LEVER
1UY-26153-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLATE
90201-12790-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
ROD, JOINT
3GD-26166-00-00
Superseded by 3GD-26166-10-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT
95317-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT(COUNTER CLOCKWISE)
90170-06289-00
Superseded by 90170-06228-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, BUTTON HEAD
92017-08020-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
LEVER 2
2XK-26165-00-00
Superseded by 5YT-26165-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#49
SCREW, PAN HEAD
98507-04008-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, FLANGE
95817-06035-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
WASHER, PLATE
90201-06008-00
Superseded by 90201-06M02-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#52
COLLAR
90387-063W7-00
Superseded by 90387-0613B-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
SPRING, TORSION
90508-35764-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#54
LEVER
4SH-18198-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
NEUTRAL SWITCH ASSY
3G1-82540-02-00
Superseded by 4KD-82540-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
WIRE, LEAD
2XK-82507-00-00
|
$15.49 | ||
|
Unavailable |
|||
