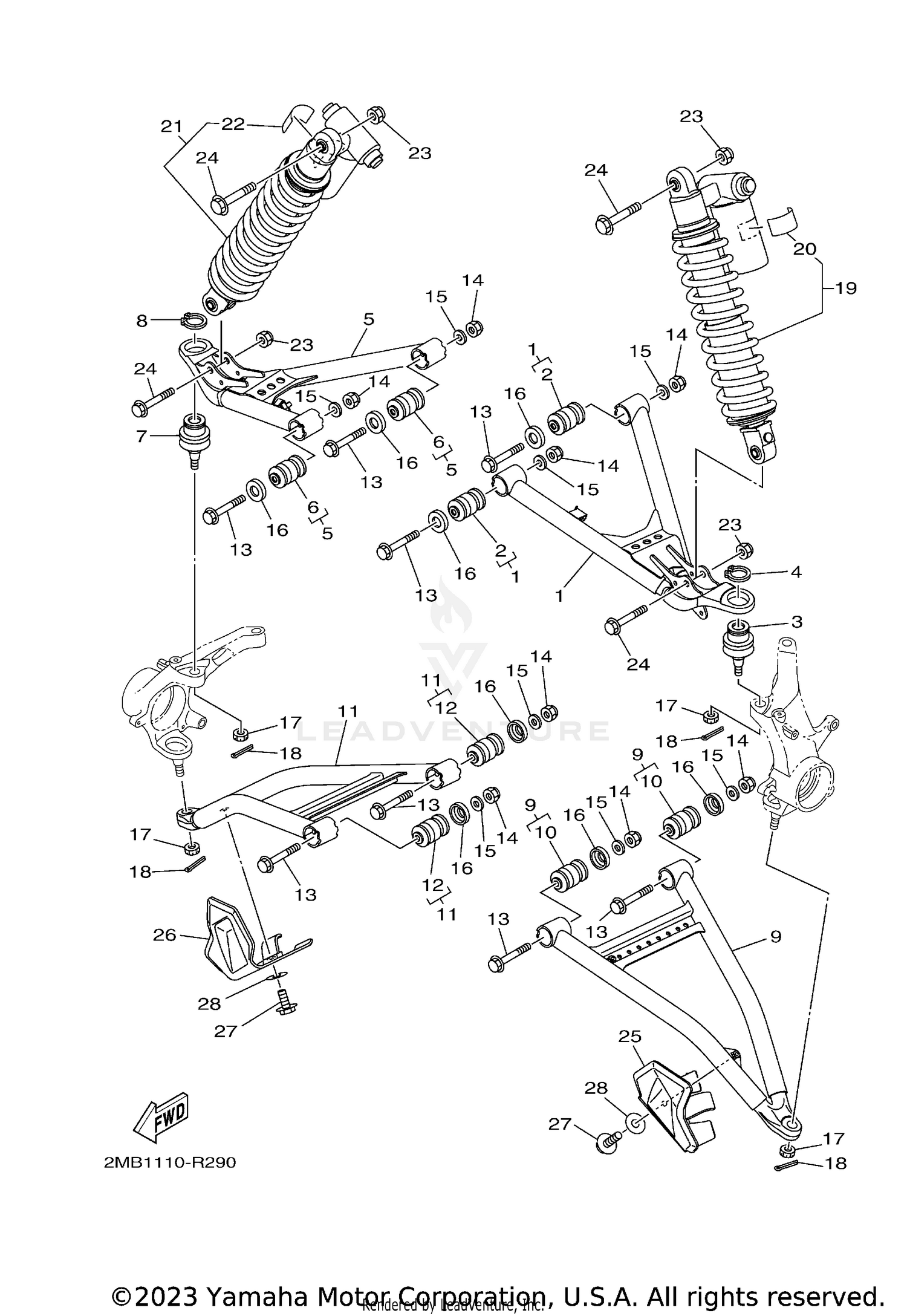

2016 Yamaha WOLVERINE R-SPEC FRONT SUSPENSION WHEEL OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT UPPER ARM CO
1XD-F3540-00-00
Superseded by 1XD-F3540-02-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH
1HP-F3526-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BALL JOINT 2
1XD-23579-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
99009-32400-00
Superseded by 93410-32075-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FRONTUPPERARMCOMP.(R
1XD-F3550-00-00
Superseded by 1XD-F3550-01-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH
1HP-F3526-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#7
BALL JOINT 2
1XD-23579-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#8
CIRCLIP
99009-32400-00
Superseded by 93410-32075-00
|
$7.99 | ||
|
Unavailable |
|||
|
#9
FRONT LOWER ARM COMP. (LEFT)
2MB-F3570-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH
1HP-F3526-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#11
FRONT LOWER ARM COMP. (RIGHT)
2MB-F3580-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH
1HP-F3526-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
90105-10267-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCKING
90185-10012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-10035-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
5KM-22149-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CASTLE
90171-12001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN. COTTER
91402-25020-00
Superseded by 91490-25020-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
FR. SHOCK ABSORBER ASSY. ,1
2MB-F350A-00-00
|
$617.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
LABEL, WARNING
1HP-F2259-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FR. SHOCK ABSORBER ASSY. ,2
2MB-F350B-00-00
|
$615.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
LABEL, WARNING
1HP-F2259-01-00
|
$13.99 | ||
|
Unavailable |
|||
|
#23
NUT, SELF-LOCKING
90185-10012-00
|
$7.99 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
90105-10283-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, UNDER 1
2MB-F3123-00-00
Superseded by 2MB-F3123-01-00
|
$11.99 | ||
|
Unavailable |
|||
|
#26
COVER, UNDER 2
2MB-F3133-00-00
Superseded by 2MB-F3133-01-00
|
$11.99 | ||
|
Unavailable |
|||
|
#27
BOLT, WITH WASHER
90119-06137-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-06036-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
